Stainless Steel Reset/self-lock 250V 15A switch DPST DPDT Toggle Switch current choosing from 3-15A terminal

Short Description:

Brand:ELEWIND

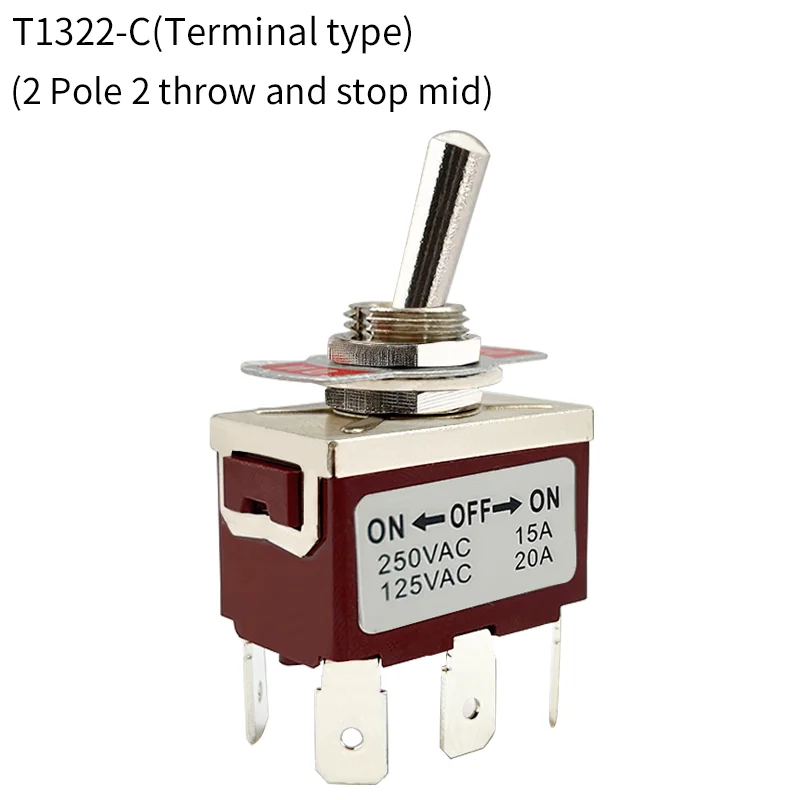

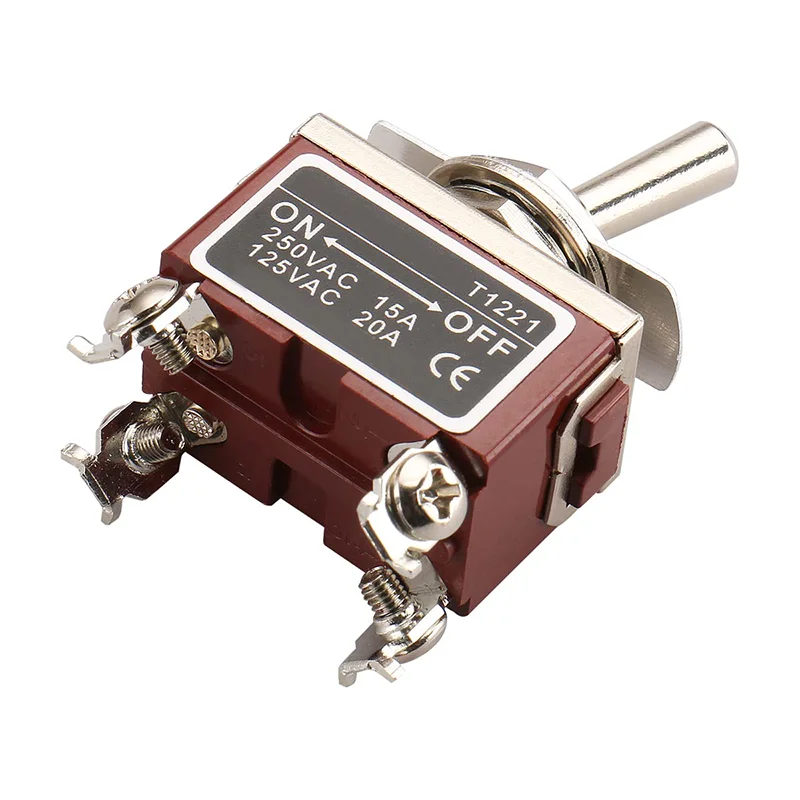

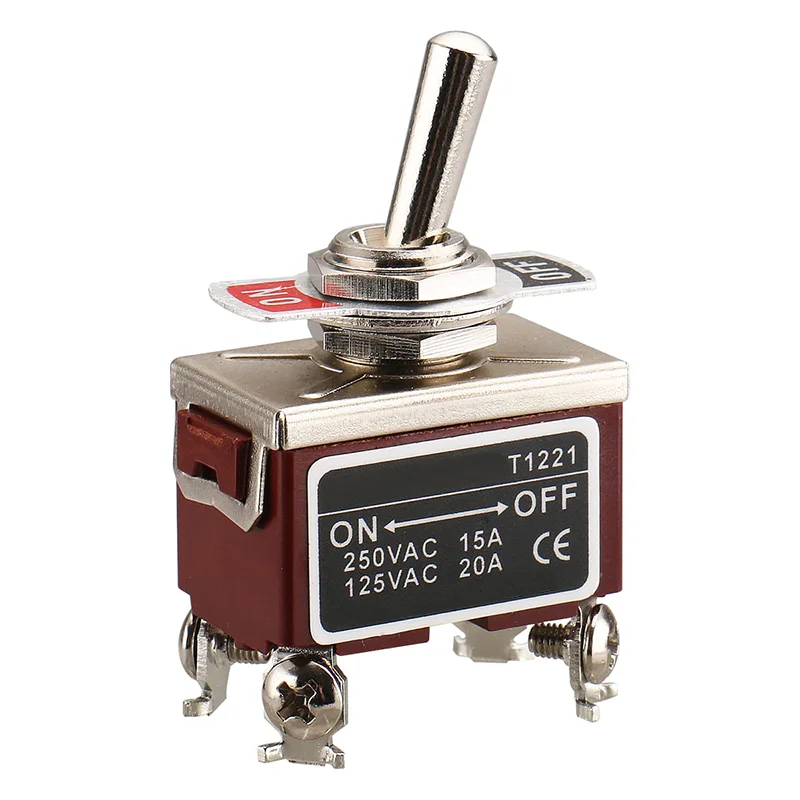

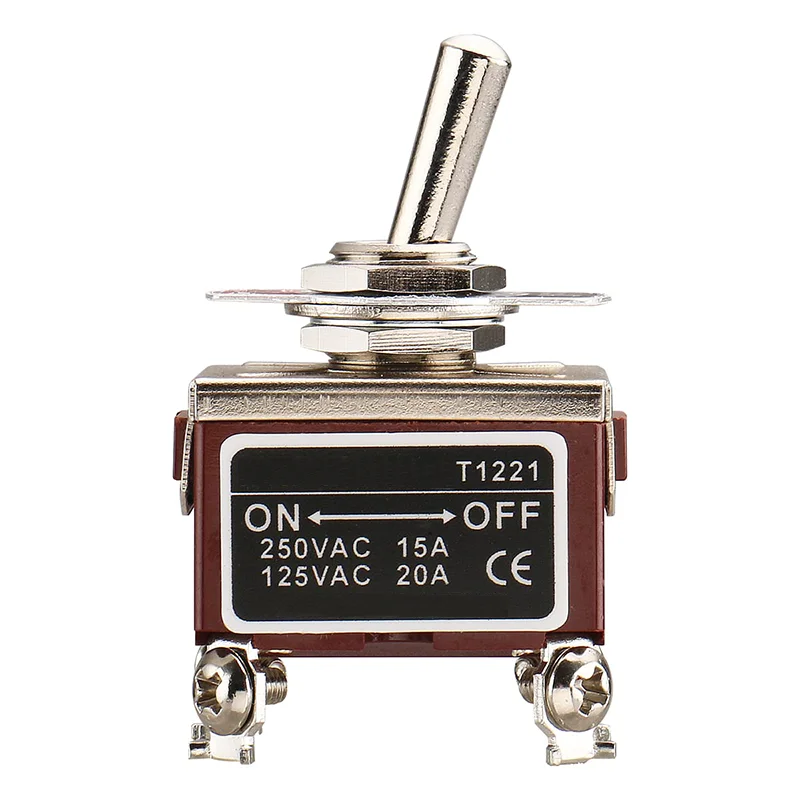

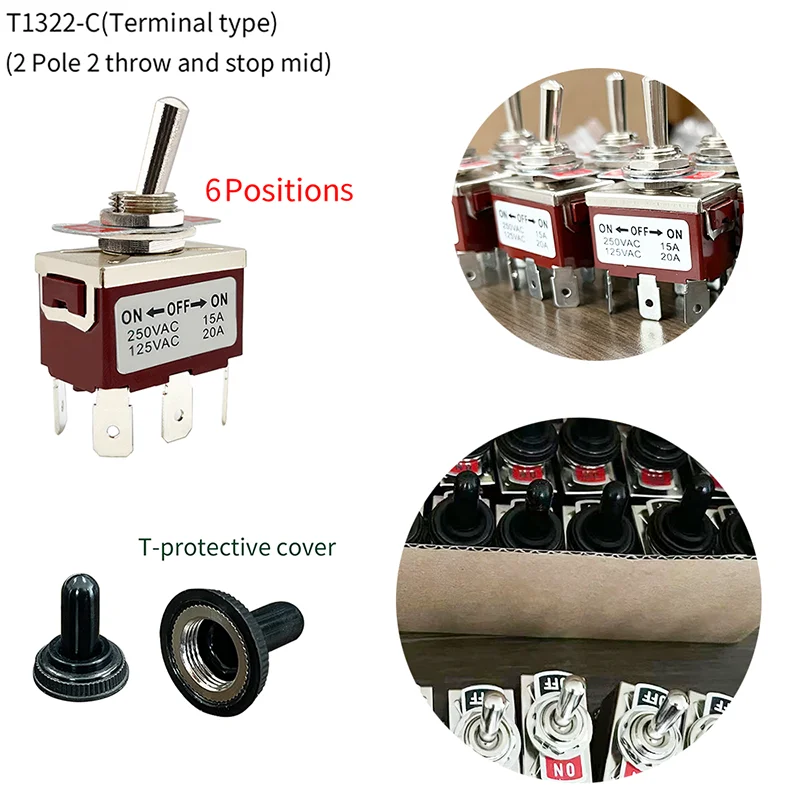

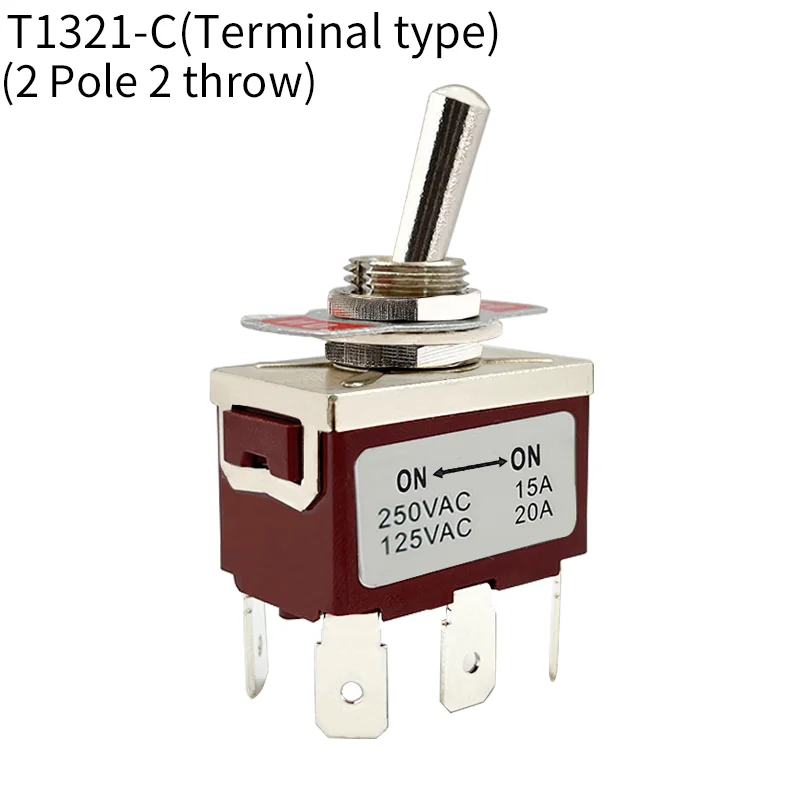

T Toggle Switch

Toggle switches in high-capacity, long lifeand comfortable handtouch

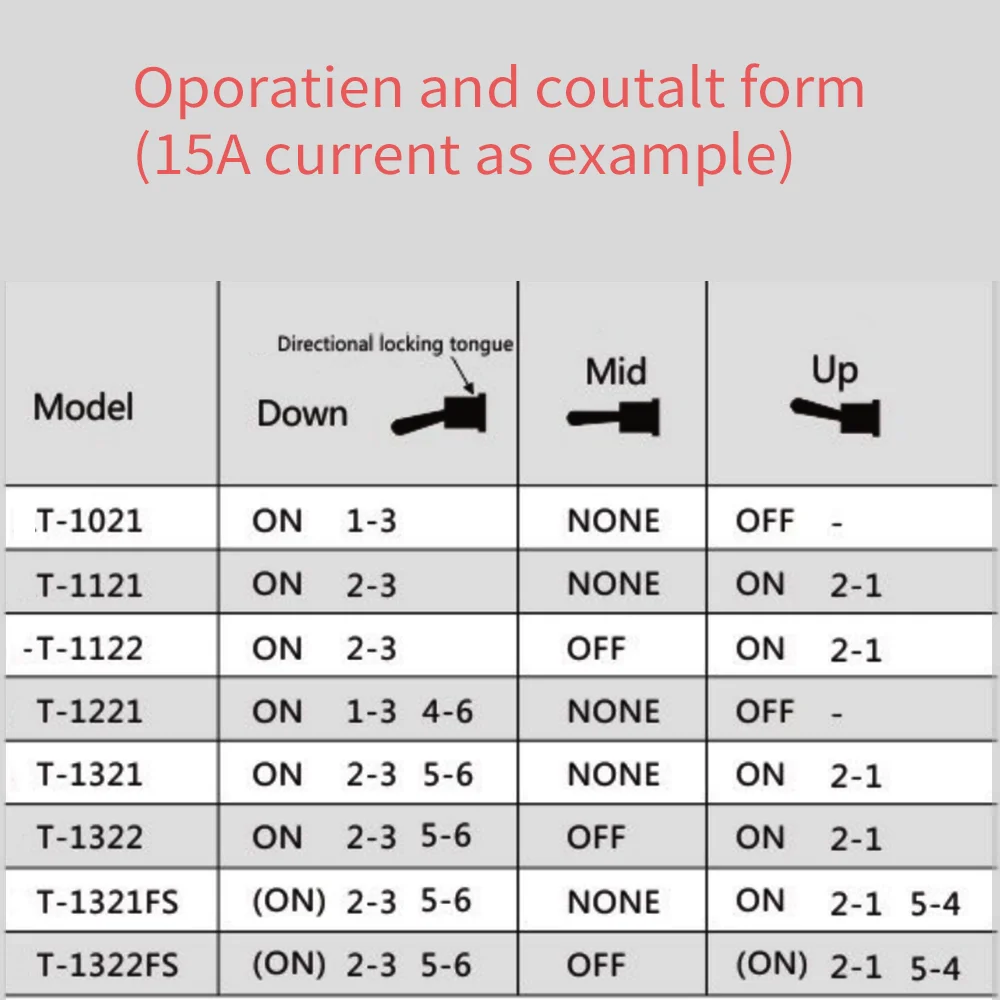

Characteristic:

1.High in rate current specification, the highest on-off capacity

  a:Reach 15A 250VAC

  b:Current specification:choosing from 3-15A

2.Long life

  a:AMechanicallife: 50,000 operations min.

  b:Electrical life:25,000 operation min(for the specification of 1 pole circuit)

3.Operation Light

  a:When operating handle light weight, flexible,just 1.2Nmtorque, comfortable in touching( for 1 pole circuit)

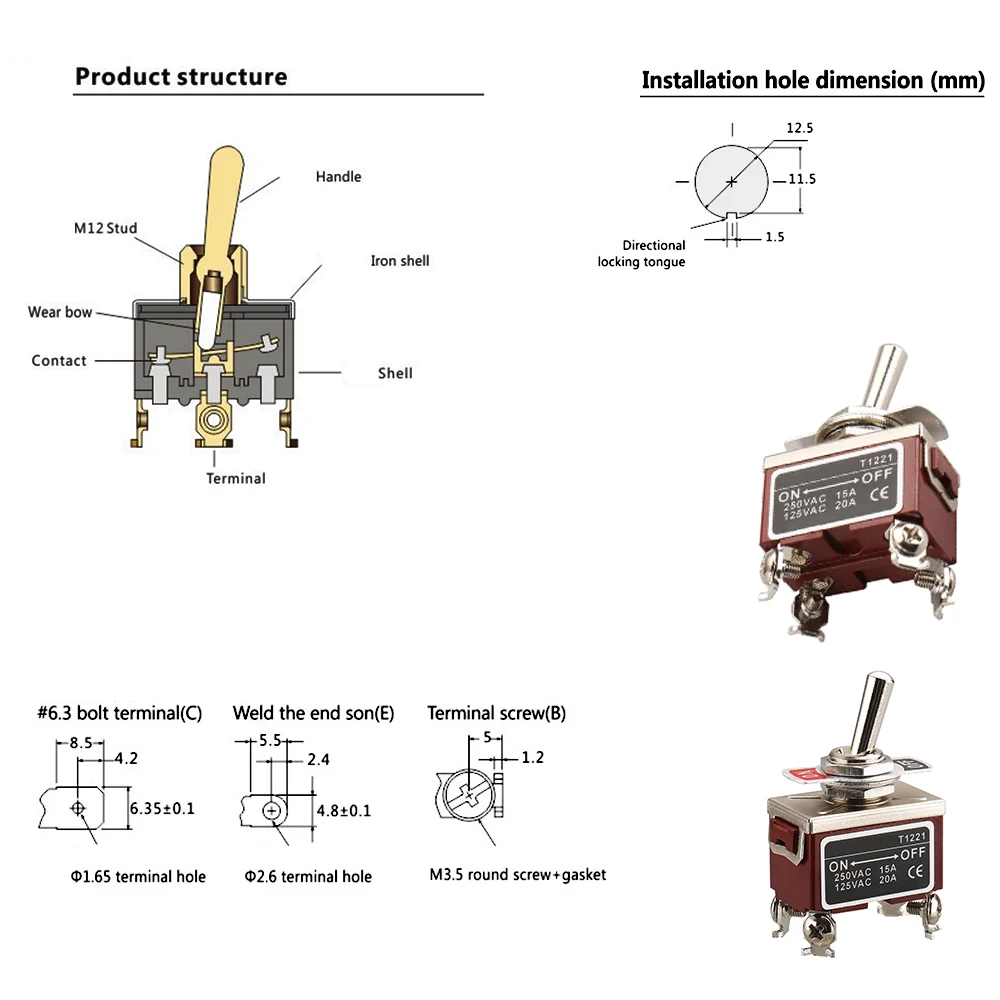

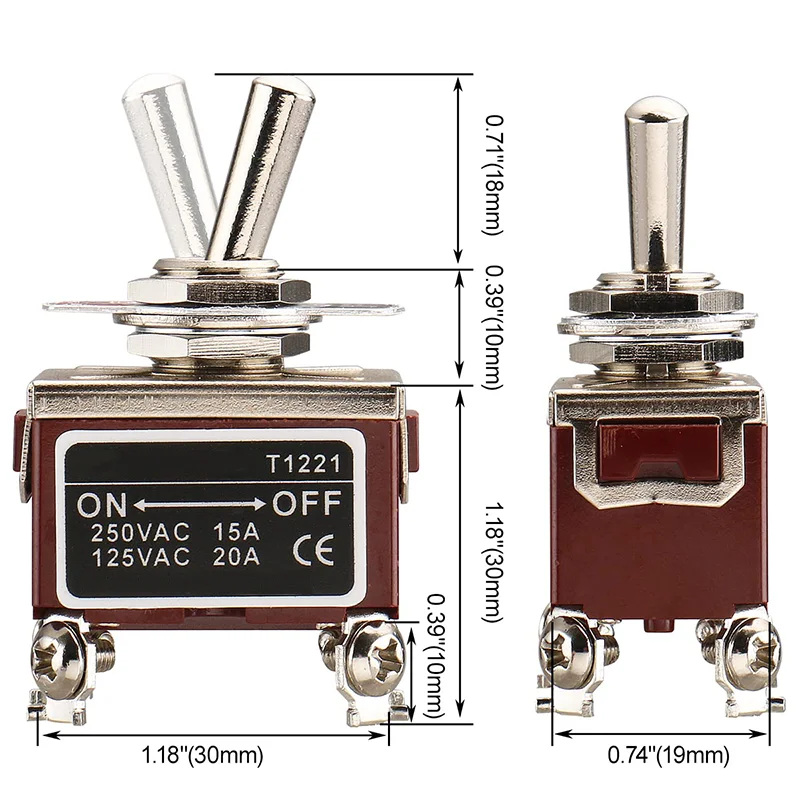

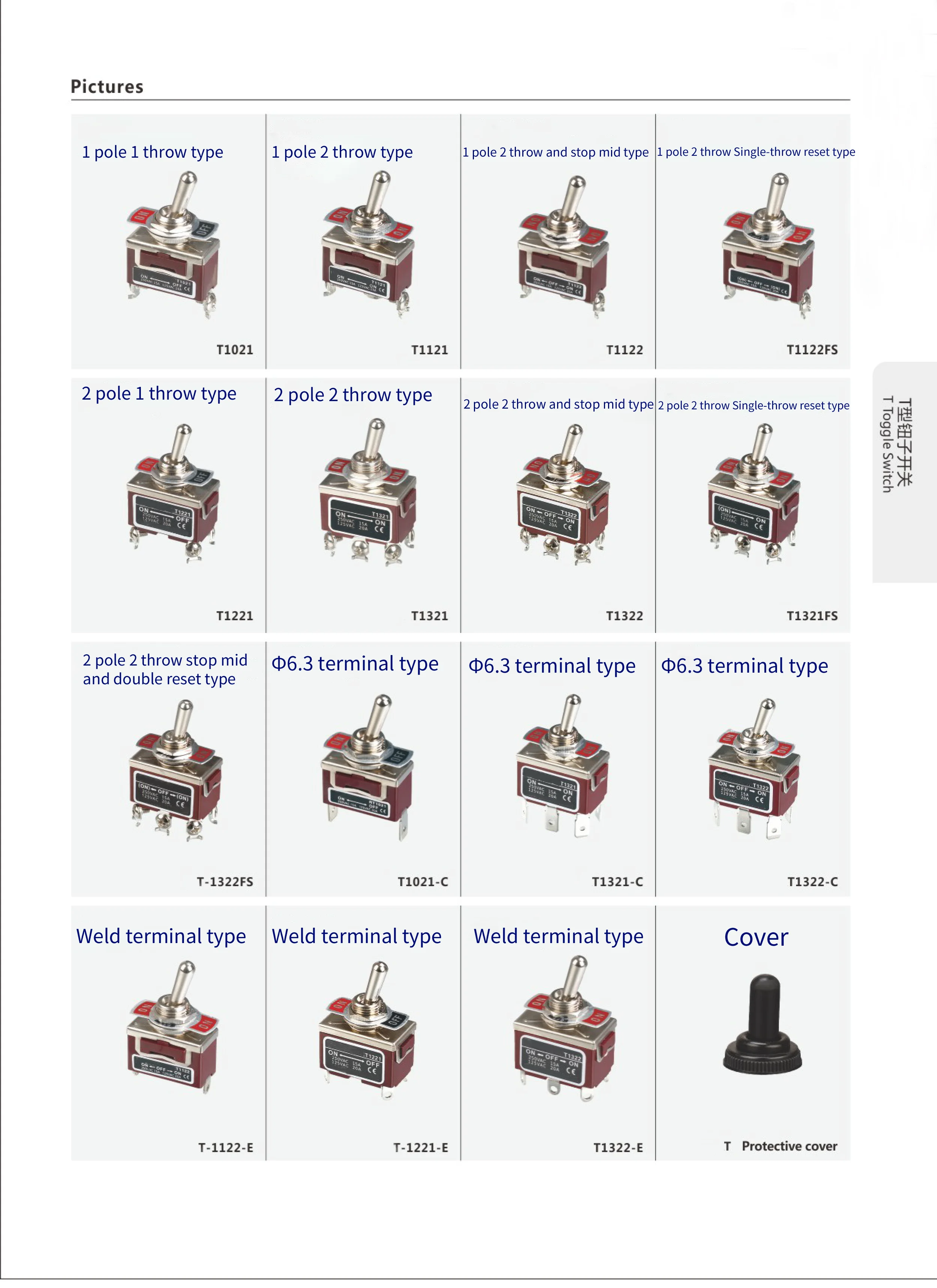

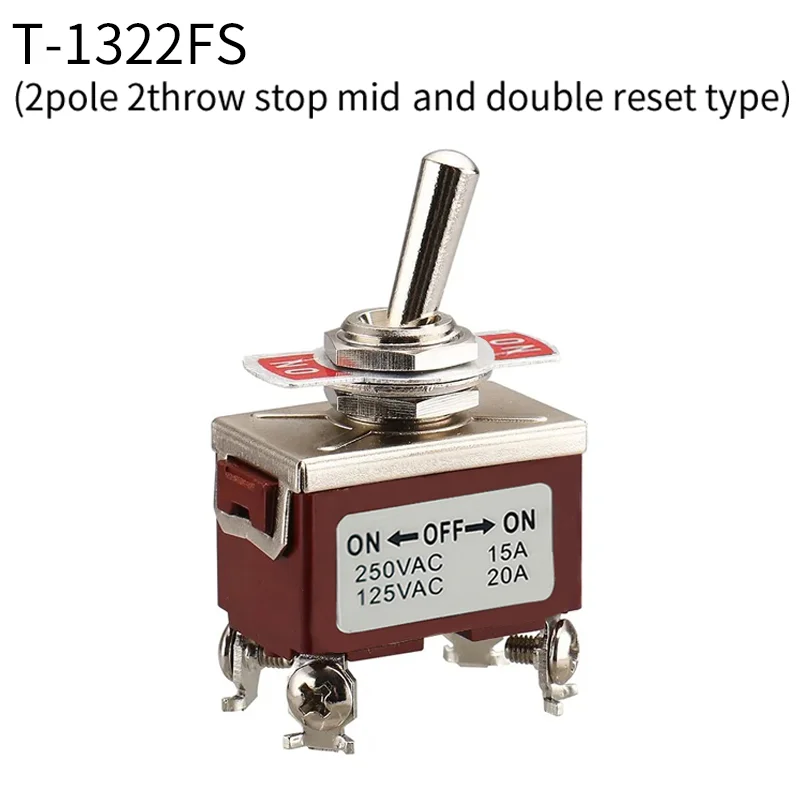

4. Terminal specification is complete and Installation hole dimension(mm)

5.Has passed the CE certification

6.Oporatien and coutalt form(15A current as example)

Brand:ELEWIND

Contact Specification:

Rated work current:15A10A6A3A/125V,250VAC(Resistance load）

Contact resistance(initial value) :under 15MΩ

Contact Material:With the chemical formula silver cadmium oxide contact(can making meet the RoHS directive)

ELectrical perfromance:

Insulation resistance(liitial value):100MΩ(tested by 500VDC insulation ohmer)

Voltage-withstanding:Non-connected terminal: 1，000V 50/60Hz 1 min

No-voltage metal part and terminal: Ground and terminal: 2 , 000V 50/60Hz 1min

Meechanical:

Free state:Under 98m/s2(10G)

Full load state:Under 294m/s2(30G)

Vibration resistance:10-55HZ,1.5mm double amplitude (contact left is under 1ms)

Life:

Mechanical:500,000,000 operations min(on-off frequency 20 operations/min)

Electrical(resistance load):250.000,000 operations min(rate loading 7 operations/min)

Use conditon:

Ambient termperature and humidity:20C~+70°C(without frozen and dew),under 85%(about +5~20C)

Max.on-off frequency:30 operation/min
