SAYOON HEV30-7AD HEV30-7BD general electric contactor High Voltage DC Contactor energy saving equipment ROHS CE

Short Description:

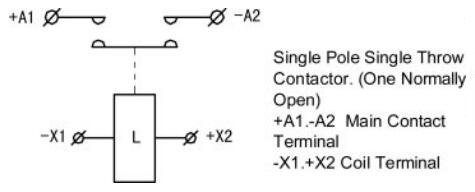

HEV30-7AD  circuit  structure  is normally  open,    HEV30-7BD  circuit  structure  is normally  closed!



Product introduction

FEATURES:



Suitable for new energy electric vehicles, charging facilities, photovoltaic, wind power generation systems, automotive air conditioning, communication power, UPS, power and other electrical control circuit of the switch control, with small.
1
USES:

The utility model has the advantages that the utility model is provided with a normally open contact or a normally closed contact , which is suitable for charging piles, electric four wheeled vehicles, new energy vehicles, energy saving and environmental protection systems, road traf.
12345612

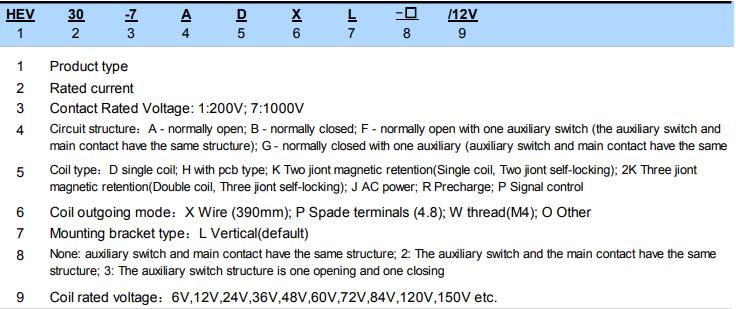

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: HV DC Contactor HEV30-7AD/24V 100pcs, indicating the load rated current 30



123
