Push Button Switch

22mm cheaper momentary latching metal push button switch 18A large current chromium plated brass waterproof push button switch

22mm momentary latching metal push button switch 18A large current chromium plated brass waterproof push button switch

Description:

Install diameter:22mm

Switch rating: 18A/250V

Type: Momentary or latching, 1NO1NC or 2NO

Terminal: 6 Pin terminal

Crust material: Chromium plated brass

LED color: Red / Green /Blue / Yellow / White

LED Voltage: 6V,12V,24V,36V,110V,220V

inquiry detail

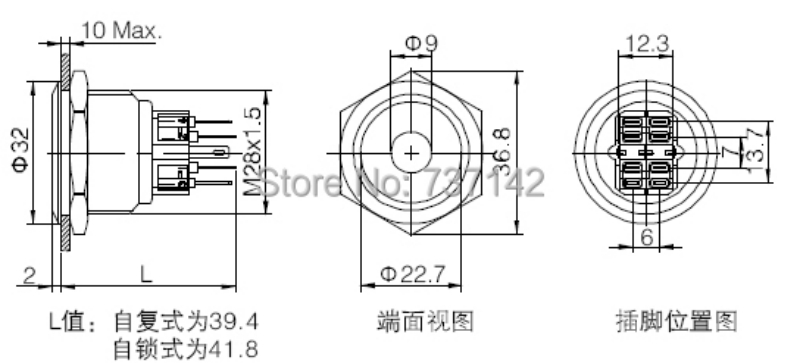

ELEWIND 28mm Stainless steel Dot illuminated push Momentary or Latching 1NO1NC or 2NO2NC button switch(PM281F-11ZD/B/12V/S)

ELEWIND 28mm Dot illuminated push button switch(PM281F-11E/B/12V/S)

Part number:PM281F-11ZD/B/12V/S

Install diameter:28mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: Blue

(Other color can be make:RED,Green,Yellow,White,Orange)

Voltage: 12V (Other voltage can be make:2.8V to 250V)

Function: Latching (1NO1NC or 2NO2NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 30mmStainless steel Dot illuminated push Momentary or Latching 1NO1NC or 2NO2NC button switch(PM301F-11D/B/12V/S)

ELEWIND 30mm Dot illuminated push button switch(PM301F-11E/B/12V/S)

Part number:PM301F-11D/B/12V/S

Install diameter:30mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: Blue,RED,Green,Yellow,White,Orange

Voltage: from 2.8V to 250V

Function: Momentary (1NO1NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail

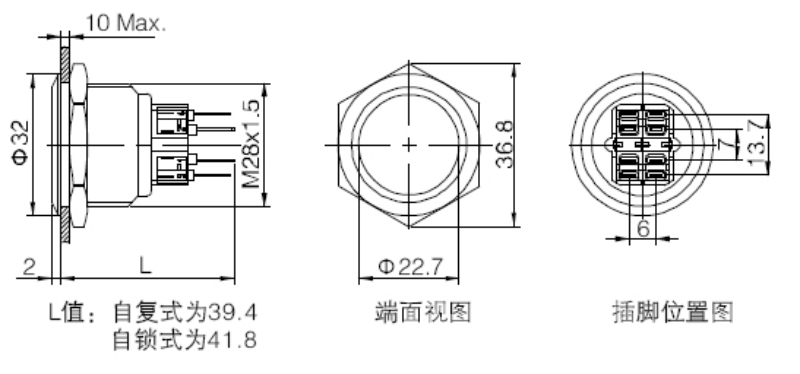

ELEWIND 28mm Stainless steel momentary or latching type 1NO1NC or 2NO2NC Ring illuminated push button switch(PM281F-11E/G/12V/S)

ELEWIND 28mm Ring illuminated push button switch(PM281F-11E/G/12V/S)

Part number:PM281F-11E/G/12V/S

Install diameter:30mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: Green,RED,Blue,Yellow,White,Orange

Voltage: FROM 2.8V to 250V

Function: Momentary (1NO1NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail

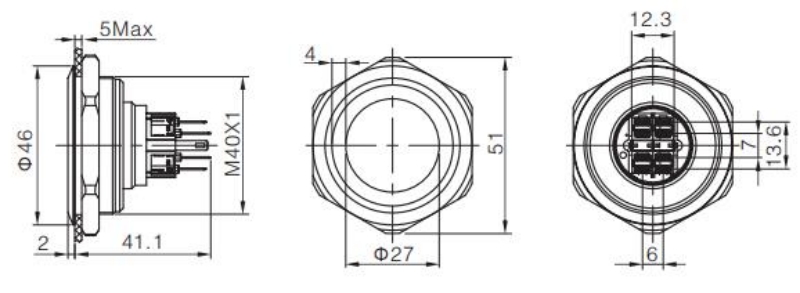

ELEWIND 40mm Stainless steel momentary or latching type 1NO1NC or 2NO2NC Ring illuminated push button switch(PM401F-11E/B/12V/S)

ELEWIND 40mm Ring illuminated push button switch(PM401F-11E/B/12V/S)

Part number:PM401F-11E/B/12V/S

Install diameter:40mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: green,RED,Blue,Yellow,White,Orange

Voltage: from 2.8V to 250V

Function: Momentary (1NO1NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 30mm stainless steel Pin terminal 1NO1NC or 2NO2NC Momentary or Latching vandalproof push button switch(PM301-11Z/S)

Part number:PM301-11Z/S

Install diameter:30mm

Switch rating: 5A/250VAC

Shape: Flat head

Function: Latching type (1NO1NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 28mm stainless steel Pin terminal 1NO1NC or 2NO2NC Momentary or Latching vandalproof push button switch(PM281-11Z/S)

Part number:PM281-11Z/S

Install diameter:28 mm

Switch rating: 5A/250VAC

Shape: Flat head

Function: Latching (1NO1NC) (Push on, push off)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 30mm Stainless steel anti vandal push button switch With START symbol ( PM301F-11E/B/12V/S With START symbol )

ELEWIND 30mm Stainless steel Metal push button switch With START symbol(PM301F-11E/B/12V/S With START symbol)

Part number:PM301F-11E/B/12V/S With START symbol

Install diameter:30mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: Blue,RED,Green,Yellow,White,Orange

Voltage: from 2.8V to 250V

Function: Momentary (1NO1NC) (Push on, release off)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 28mm metal push button switch sealing terminal with wire ( PM281F-11ZE/B/12V/S Sealing terminal with wire )

ELEWIND 28mm metal push button switch sealing terminal with wire(PM281F-11E/B/12V/S Sealing terminal with wire)

Part number:PM281F-11ZE/B/12V/S Sealing terminal with wire

Install diameter: 28mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: Blue

Voltage: 12V

Function: Latching (1NO)

Wiring Terminal: 4 wires (Red and black wire for led, white and yellow wire for switch)

Crust material: Stainless steel

IP rating: IP65 in the surface, air sealing in the terminal.

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 30mm Stainless steel anti vandal push button switch With power symbol ( PM301F-11E/B/12V/S With power symbol )

ELEWIND 30mm Stainless steel Metal push button switch With power symbol(PM301F-11E/B/12V/S With power symbol)

Part number:PM301F-11E/B/12V/S With power symbol

Install diameter:30mm

Switch rating: 5A/250VAC

Shape: Flat head

Color: Blue,RED,Green,Yellow,White,Orange

Voltage: from 2.8V to 250V

Function: Momentary (1NO1NC) (Push on, release off)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 40mm IP65 Stainless steel momentary or latching type 1NO1NC or 2NO2NC push button switch(PM401F-11/S)

ELEWIND 40mm push button switch(PM401F-11E/S)

Part number:PM401F-11E/S

Install diameter:40mm

Switch rating: 5A/250VAC

Shape: Flat head

Voltage: from 2.8V to 250V

Function: Momentary or latching, 1NO1NC or 2NO2NC

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
ELEWIND 25mm Momentary or Latching 1NO1NC or 2NO2NC Stainless steel Pin terminal push button switch(PM251F-11/S)

Part number:PM251F-11/S

Install diameter:25mm

Switch rating: 3A/250VAC

Shape: Flat head

Function: Momentary (1NO1NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail
