Push Button Switch

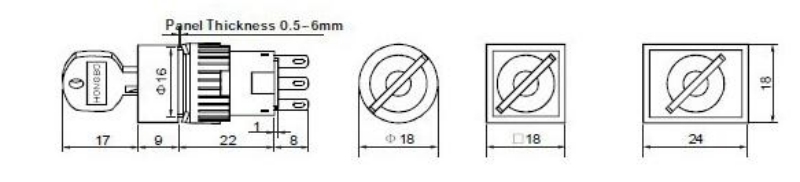

  • ELEWIND 16mm Plastic Square or Round or Rectangular 3 PIN terminal key switch 2 position maintain (1NO1NC) (PB161F-11Y/2A)

    ELEWIND 16mm Plastic Square or Round or Rectangular 3 PIN terminal key switch 2 position maintain (1NO1NC) (PB161F-11Y/2A)

    3



    16mm key switch

    Part number:PB161F-11Y/2A

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Square(Round, Rectangular for you choose)

    Function: 2 position maintain (1NO1NC)

    With two keys, the key can removed in both position



    Terminal:3 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail
  • ELEWIND 16mm Plastic 3 PIN terminal Round 2 position maintain (1NO1NC) Knob switch(PB161F-11X/21)

    ELEWIND 16mm Plastic 3 PIN terminal Round 2 position maintain (1NO1NC) Knob switch(PB161F-11X/21)

    1



    ELEWIND 16mm 2 position maintain Knob switch(PB161F-11X/21)

    Part number:PB161F-11X/21

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Round

    Function: 2 position maintain (1NO1NC)

    Terminal:3 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail

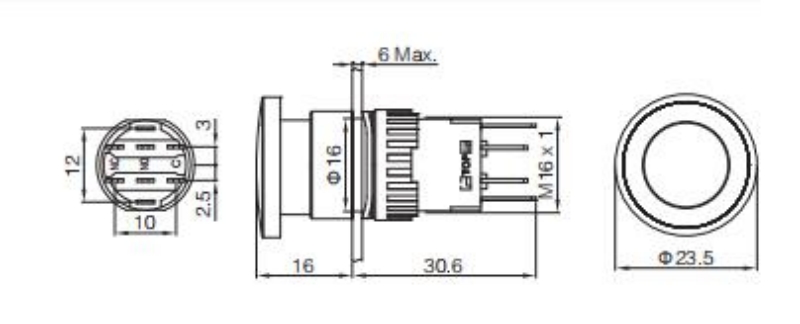

  • ELEWIND 16mm Round Plastic 3 PIN terminal Momentary (1NO1NC) Mushroom push button switch (PB161M-11/R without light)

    ELEWIND 16mm Round Plastic 3 PIN terminal Momentary (1NO1NC) Mushroom push button switch (PB161M-11/R without light)

    1



    16mm Mushroom momentary push button switch

    Part number:PB161M-11/R

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Round

    LED and Button color: RED

    (Other color you can choose:Green)

    Function: Momentary (1NO1NC)

    Terminal:3 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree



    inquirydetail

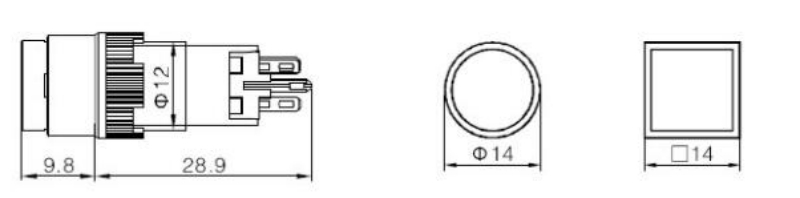

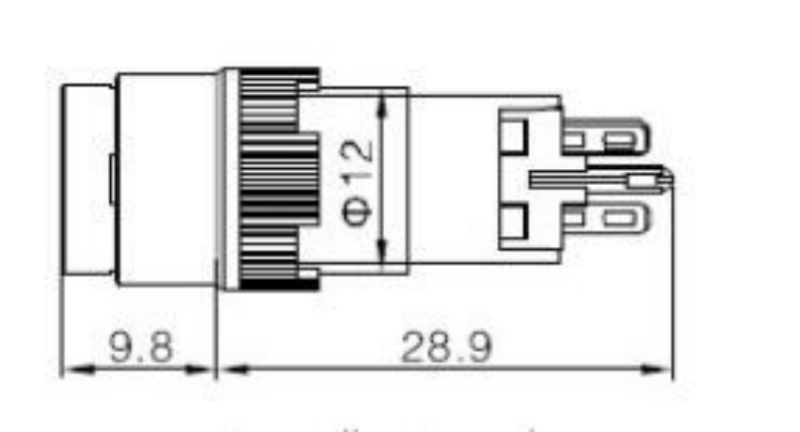

  • ELEWIND 12mm Plastic momentary or Latching 5 PIN terminal square illuminated Latching push button switch (PB121F-11Z/G/12V)

    ELEWIND 12mm Plastic momentary or Latching 5 PIN terminal square illuminated Latching push button switch (PB121F-11Z/G/12V)

    1



    ELEWIND 12mm illuminated momentary push button switch (PB121F-11Z/G/12V)

    Part number:PB121F-11Z/R/12V

    Install diameter:12mm

    Switch rating: 2A/230V

    Shape: Square

    LED and Button color: Green

    (Other color you can choose:Blue,Red,Orange,White,Yellow)

    Voltage: 12V

    (Other voltage also can be make: from 1.8V to 230V)

    Function: Latching (1NO1NC)

    Terminal:5 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree



    inquirydetail
  • ELEWIND 12mm Plastic momentary or Latching 5 PIN terminal Rectangular illuminated push button switch (PB121J-11/Y/12V)

    ELEWIND 12mm Plastic momentary or Latching 5 PIN terminal Rectangular illuminated push button switch (PB121J-11/Y/12V)

    1



    ELEWIND 12mm illuminated momentary push button switch (PB121J-11/Y/12V)

    Part number:PB121J-11/Y/12V

    Install diameter:12mm

    Switch rating: 2A/230V

    Shape: Rectangular

    LED and Button color: Yellow

    (Other color you can choose:Blue,Red,Orange,White,Yellow)

    Voltage: 12V

    (Other voltage also can be make: from 1.8V to 230V)

    Function: Momentary (1NO1NC)

    Terminal:5 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail
  • DCRS Digital Code Rotary Switches

    DCRS Digital Code Rotary Switches

    4



    SPECIFICATION:



    Rated capacity:5VDC/0.25A,25VAC/0.5A,50VAC/0.05A
    Insulation Resistance:≥500MΩ
    Dielectric Strength:250VAC between term;1500VAC
    between term and frame.
    Protective Degree:IP65
    Operating Temperature:-20℃～70℃
    Storage Temperature:-40℃～70℃



    Characteristics
    Full closed structure
    Full closed, have the excellent characteristics of
    preventing oil and water, the Product Degree: IP65.
    Easy for wire connect
    Use the digital coding, and easy for wire connect, can be
    connected with the linker.
    Easy to set the numerical value
    Changing the fixing screw position to change the setting.
    Use the gold-clad contact.
    Use the double slide gold-clad contact to keep the
    contact resistance steady, and improve the work reliability.
    Preventing the wrong signal.
    According to the coding, can be set to INHIBIT terminal
    and PARITY terminal.
    Firm and reliable, the distortion distance strength is 3Nm.
    Ensure over 50,000 times operations.
    Mainly fit for choosing
    mechanical panel’s wave bands
    of operation mode, axial direction, rate and the percentage of speed.
    inquirydetail
  • ELEWIND 25mm 15A big current Latching switch,UL approval ( PM251-Q-11Z/S )

    ELEWIND 25mm 15A big current Latching switch,UL approval ( PM251-Q-11Z/S )

    1



    Part number:15A big current Latching push button switch(PM251-LC-11Z/S )

    Install diameter:25mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head

    Function:Latching (Push on,push again off)  (1NO1NC)

    Terminal: 3 Pin terminal (4.8*0.5mm)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 40 to 75 Degree

    inquirydetail
  • ELEWIND 30mm 15A big current Latching push button switch,UL approval ( PM301-LC-11Z/S )

    ELEWIND 30mm 15A big current Latching push button switch,UL approval ( PM301-LC-11Z/S )

    1



    Part number:15A big current LatchingMetal push button switch(PM301-LC-11Z/S )

    Install diameter:30mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head

    Function:Latching (Push on,push again off)  (1NO1NC)

    Terminal: 3 Pin terminal (4.8*0.5mm)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 30mm 15A big current Metal push button switch with dot light ( PM301-LC-11D/S, UL approval )

    ELEWIND 30mm 15A big current Metal push button switch with dot light ( PM301-LC-11D/S, UL approval )

    1







    Part number:15A big current Metal push button switch with illuminated dot symbol(PM301-LC-11D/S, UL )

    Install diameter:30mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head  Dot symbol illuminated

    Function:Momentary (Push on,release off)  (1NO1NC)

    LED Color: Red, green,blue and white for you choose.

    Terminal: 5 Pin terminal (4.8*0.5mm for led, 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 25mm 15A big current Latching push button switch with light ( PM251-LC-11ZD/S, UL approval )

    ELEWIND 25mm 15A big current Latching push button switch with light ( PM251-LC-11ZD/S, UL approval )

    1



    Part number:15A big current Latching push button switch with light(PM251-LC-11ZD/S, UL )

    Install diameter:25mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head Dot illuminated

    Function:Latching (Push on,push again off)  (1NO1NC)

    LED Color: Red, green,blue and white for you choose.

    Terminal: 5 Pin terminal (4.8*0.5mm for led, 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 22mm Long life over 15A Large current push button switch, Momentary/Latching ( PM221-Q-11/S, UL approval )

    ELEWIND 22mm Long life over 15A Large current push button switch, Momentary/Latching ( PM221-Q-11/S, UL approval )

    1



    Part number:15A big current Metal push button switch(PM221-Q-11/S, UL )

    Install diameter:22mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head Ring illuminated

    Function:Momentary type (Push on,release off)  (1NO1NC)   Or

                    Latching type(Push on, push again off) (1NO1NC)

    Terminal: 3 Pin terminal ( 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 19mm High life over 15A LARGE current Metal push button switch, Momentary / Latching ( PM191-Q-11/S, UL approval )

    ELEWIND 19mm High life over 15A LARGE current Metal push button switch, Momentary / Latching ( PM191-Q-11/S, UL approval )

    1



    momentary type: push on, release off （no locking）

    latching type: push on, push again off (locking)



    Part number:15A big current Metal push button switch, momentary/latching (PM191-Q-11/S, UL )

    Install diameter:19mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head

    Function:Momentary (Push on,release off)  (1NO1NC) or

    Latching (Push on,push again off)  (1NO1NC)

    Terminal: 3Pin terminal ( 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
