Push Button Switch
-

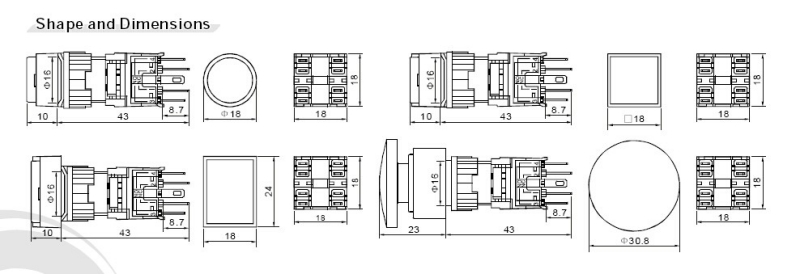

ELEWIND 16mm Plastic 4 PIN terminal Round type 1NO1NC push button switch ( PB163Y-11Y/G )
ELEWIND 16mm Square type 1NO1NC push button switch(PB163F-11Y/R)
Part number:PB163F-11Y/R
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round
Cap color: Red
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

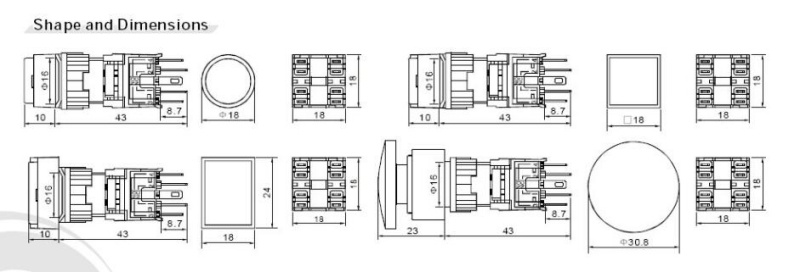

ELEWIND 16mm Plastic 4 PIN terminal Rectangular Shape type 1NO1NC Momentary push button switch ( PB163J-11/Y )
ELEWIND 16mm Rectangular type 1NO1NC push button switch(PB163J-11/Y)
Part number:PB163J-11/Y
Install diameter:16mm
Function: Momentary (1NO1NC)
Switch rating: 3A/250VAC
Shape: Rectangular
Cap color: Yellow
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

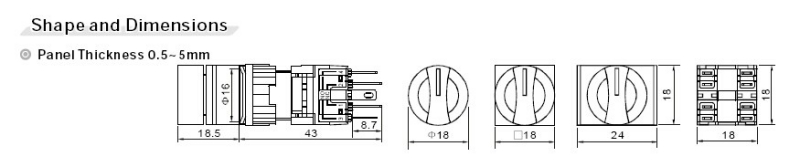

ELEWIND 16mm Plastic Rectangular type 1NO1NC 4 PIN terminal Selector switch 2 position maintain ( PB163J-11X/21 )
ELEWIND 16mm Rectangular type 1NO1NC 4pin Selector switch 2 position maintain (PB163J-11X/21)
Part number:PB163J-11X/21
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Rectangular (Square and rectangular can be choose)
Function: 2 Position maintain
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

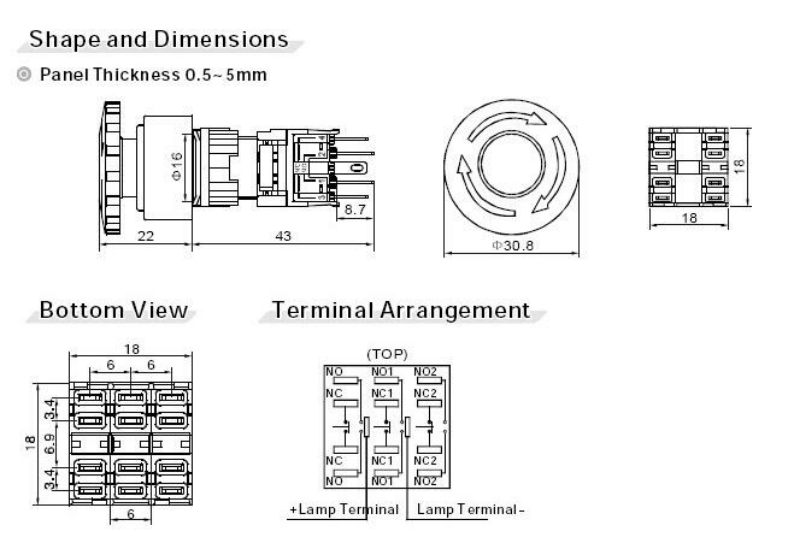

ELEWIND 16mm Plastic emergency stop 4 PIN terminal Red Cap color push button switch ( PB163-11TSB )
ELEWIND 16mm emergency stop pushbutton switch(PB163-11TSB)
Part number:PB163-11TSB
Install diameter:16mm
Switch rating: 3A/250VAC
Cap color: Red
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

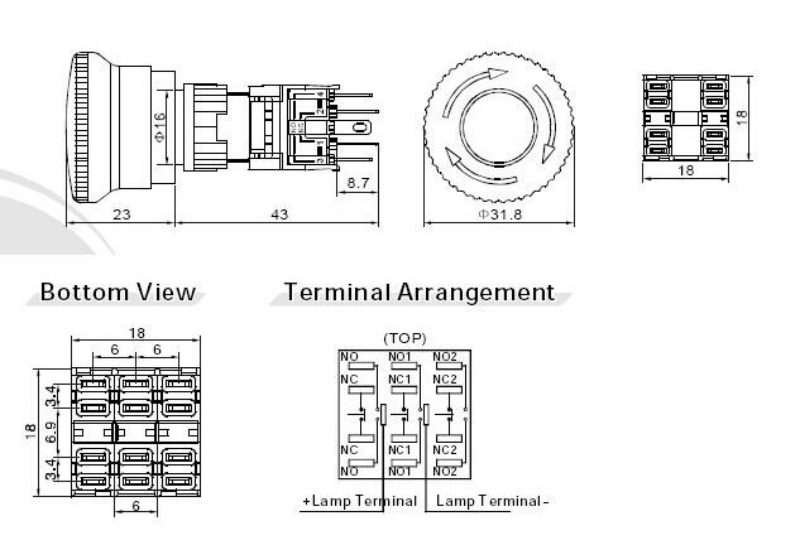

ELEWIND 16mm Plastic 4 PIN terminal Red Yellow emergency stop push button switch ( PB163-11TSA )
ELEWIND 16mm emergency stop pushbutton switch(PB163-11TSA)
Part number:PB163-11TSA
Install diameter:16mm
Switch rating: 3A/250VAC
Cap color: Yellow
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-
ELEWIND 16mm Plastic 4 PIN terminal Square Round type 1NO1NC Red Cap color push button switch(PB163F-11/R)
ELEWIND 16mm Square type 1NO1NC push button switch(PB163F-11Y/R)
Part number:PB163F-11/R
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round
Cap color: Red
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

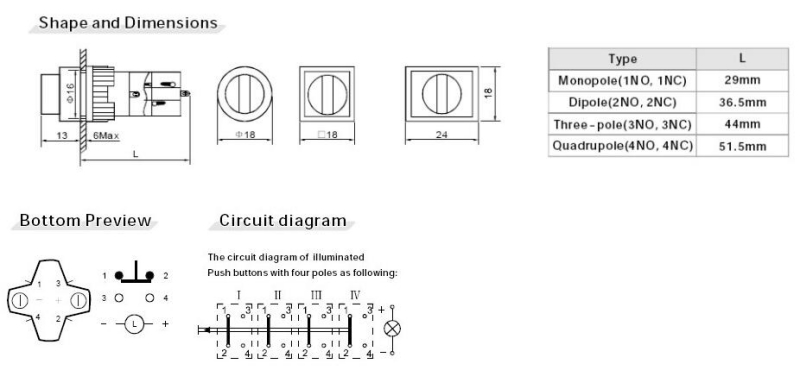

ELEWIND 16mm Plastic Square or rectangular type 1NO1NC 4 PIN terminal Selector switch 2 position maintain ( PB163F-11X/21 )
ELEWIND 16mm square type 1NO1NC 4pin Selector switch 2 position maintain (PB163Y-11X/21)
Part number:PB163F-11X/21
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Square(Square and rectangular can be choose)
Function: 2 Position maintain
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-
ELEWIND 16mm Plastic 4 PIN terminal Round Shape type 1NO1NC key switch 2 position maintain ( PB163Y-11Y/21 )
ELEWIND 16mm Round type 1NO1NC 4pin key switch 2 position maintain (PB163Y-11Y/21)
Part number:PB163Y-11Y/21
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round
Function: 2 Position maintain
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

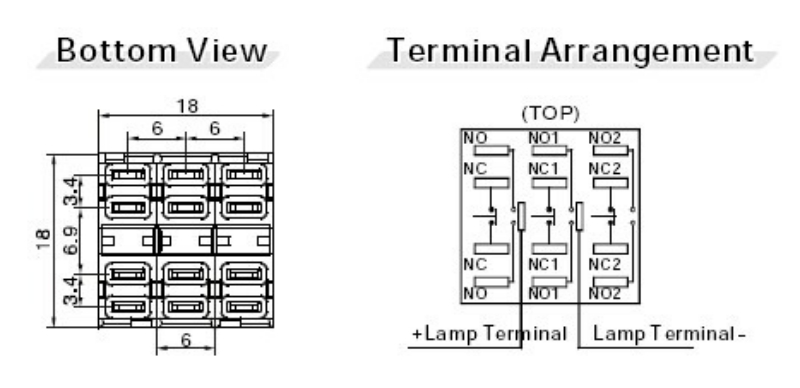

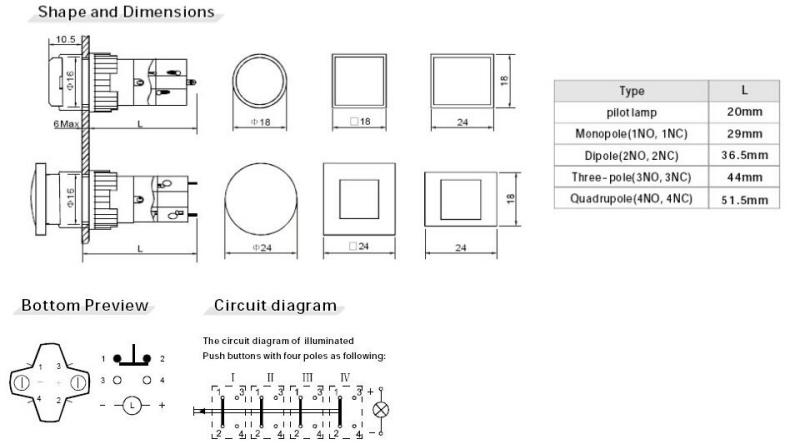

ELEWIND 16mm Plastic 6 PIN terminal Big button square illuminated momentary (1NO1NC) push button switch (PB162DF-11/Y/12V)
16mm Big button square illuminated momentary push button switch
Part number:PB162DF-11/Y/12V
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Big square
LED and Button color: Yellow
Voltage: 12V
(Other voltage also can be make: from 1.8V to 230V)
Function: Momentary (1NO1NC)
Terminal:6 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

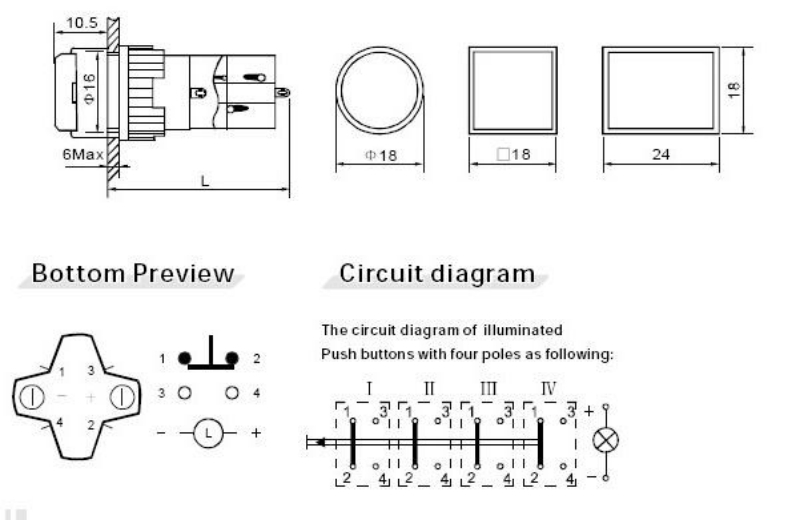

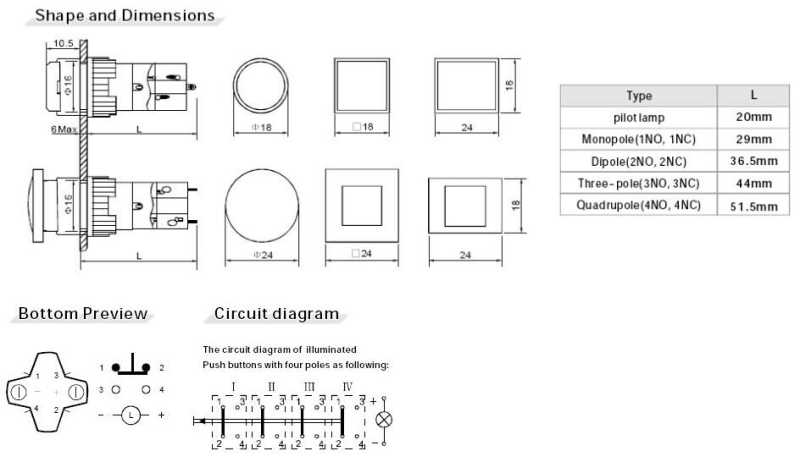

ELEWIND 16mm Plastic 6 PIN terminal Round illuminated momentary (1NO1NC) push button switch ( PB162Y-11/Y/12V )
16mm Round illuminated momentary push button switch
Part number:PB162Y-11/Y/12V
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round(Square and rectangular can be choose)
LED and Button color: Yellow,Blue,Red,Orange,White,Green
Voltage: from 1.8V to 230V
Function: Momentary (1NO1NC)
Terminal:6 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

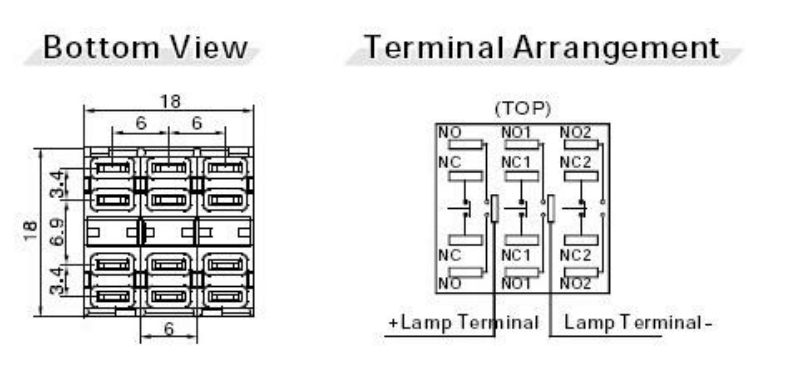

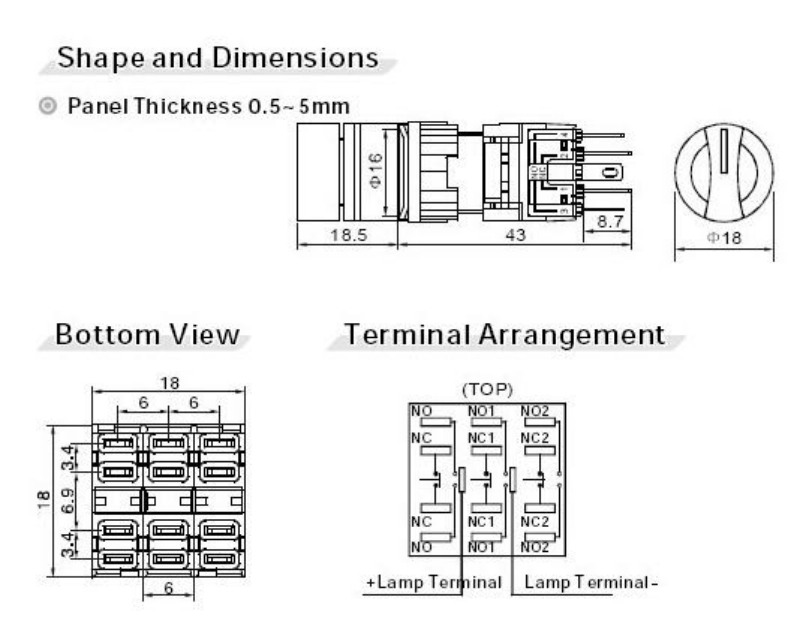

ELEWIND 16mm Plastic 6 PIN terminal Selector switch 2 position maintain with led light ( PB162Y-11XD/21/R/12V )
ELEWIND 16mm Selector switch 2 position maintain with led light (PB162Y-11XD/21/R/12V)
Part number:PB162Y-11XD/21/R/12V
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round(Square and rectangular can be choose)
LED and cap color: Red Green yellow
Led voltager: from 1.8V to 220V
Function: 2 Position maintain
Terminal:6 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
-

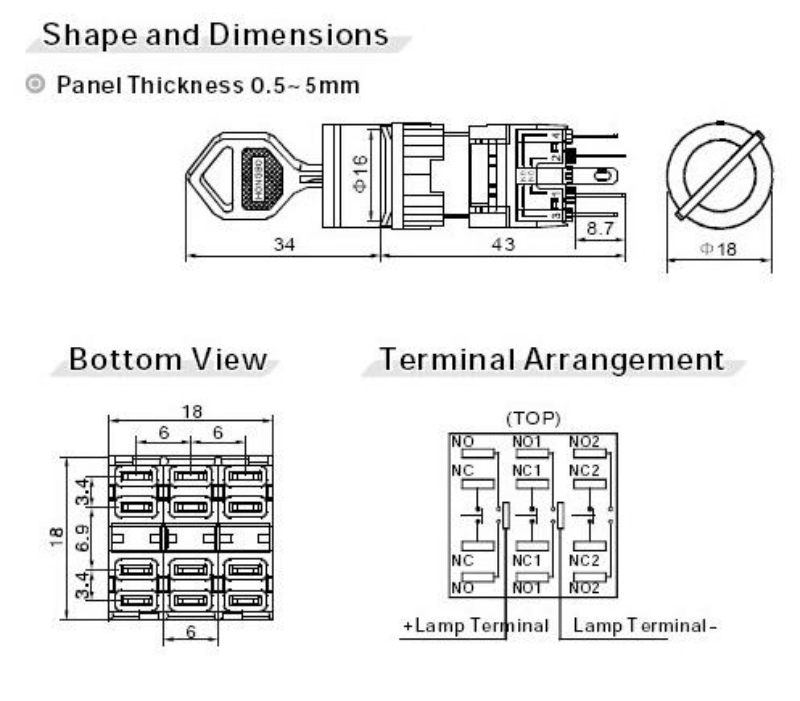

ELEWIND 16mm Plastic 4 PIN terminal Round Shape Key lock switch 2 position maintain ( PB162Y-11Y/21 )
ELEWIND 16mm Key lock switch (PB162Y-11Y/21)
Part number:PB162Y-11Y/21
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Round(Square and rectangular can be choose)
Function: 2 Position maintain
Terminal:4 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
