Push Button Switch

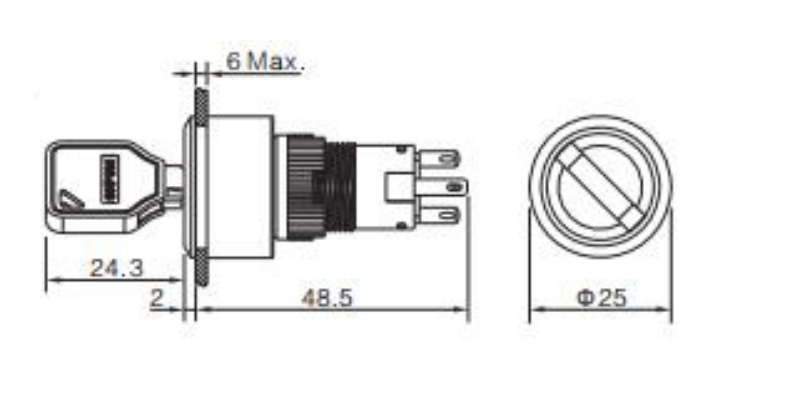

ELEWIND 22mm Round illuminated LED light key lock maintain plastic push button switch (PB223WY-11Y/21A/G/12V)

22mm Round illuminated key lock switch

Part number:PB223WY-11Y/21/G/12V

Install diameter:22mm

Switch rating: 3A/250VAC

Shape: White frame Round head

LED color: Green

(Other color you can choose:Red,Blue,Orange,White,Yellow)

Voltage:12V

(Other voltage also can be make: from 2.8V to 230V)

Function: 2 position maintain

Terminal:5 PIN terminal

Crust material: Plastic

Temperature: – 25 to 55 Degree

waterproof level: IP40

inquiry detail
ELEWIND 22mm Round illuminated Power symbol Latching momentary push button switch (PB223WY-11ZT/B/12V)

22mm Round illuminated Power symbol Latching or momentary push button switch

Part number:PB223WY-11ZT/B/12V/IP65

Install diameter:22mm

Switch rating: 3A/250VAC

Shape: White frame Round head

LED and Button color: Blue,Green,Blue,Orange,White,Yellow

Voltage: from 2.8V to 230V

Function: Latching or momentary (1NO1NC or 2NO2NC)

Terminal:5 PIN terminal

Crust material: Plastic

IP rating: IP65

Temperature: - 25 to 55 Degree

inquiry detail

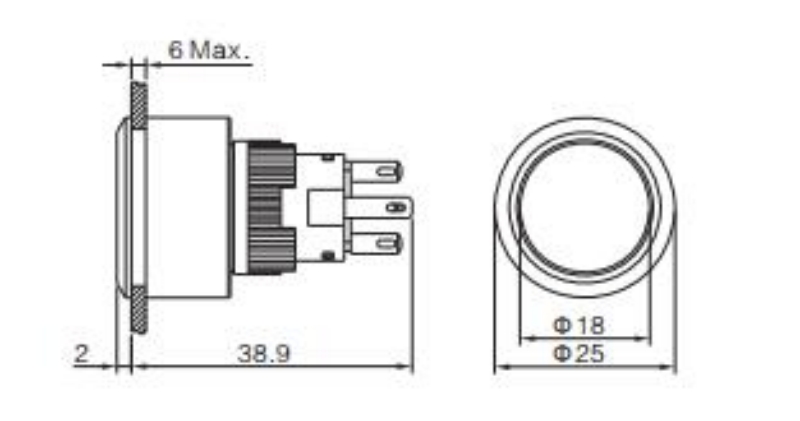

ELEWIND 22mm Plastic flat surface push button switch (PB223PY-11ZD/G/12V ，PB223WY-11D/G/12V)

ELEWIND flat surface push button switch (PB223PY-11D/G/12V)

22mm illuminated momentary push button switch

Part number:PB223PY-11D/G/12V

Install diameter:22mm

Switch rating: 5A/250VAC

Shape: Black frame Round head

LED and Button color: Green，Red,Blue,Orange,White,Yellow

Voltage:from 2.8V to 230V

Function: Momentary (1NO1NC)

Terminal:5 PIN terminal

Crust material: Plastic

IP rating: IP40

Temperature: - 25 to 55 Degree

inquiry detail

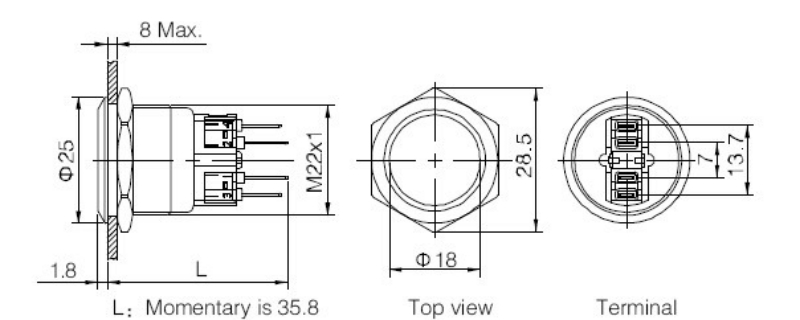

ELEWIND 22mm aluminium alloy Metal big head mushroom push button Momentary Latching (1NO1NC) (PM221-11M)

Part number:PM221-11M

Install diameter:22mm

Switch rating: 3A/250VAC

Shape: RED mushroom head

Function: Momentary (1NO1NC)

Terminal: 4 Pin terminal

Crust material: aluminium alloy

IP rating: IP65

Temperature: – 40 to 75 Degree

inquiry detail

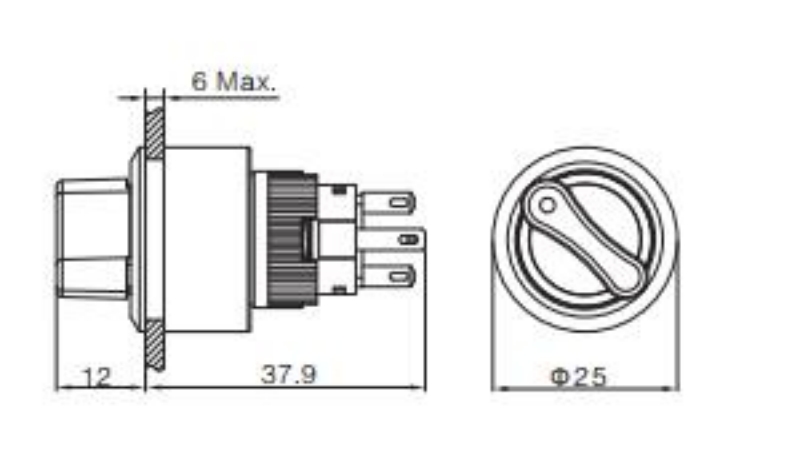

ELEWIND 22mm Round Ring illuminated select plastic selector push button switch (PB223PY-11X/21/R/12V )

22mm Round Ring illuminated selector switch

Part number:PB223PY-11X/21/R/12V

Install diameter:22mm

Switch rating: 3A/250VAC

Shape:Black frame Round head

LED color: RED

(Other color you can choose:Red,Blue,Orange,White,Yellow)

Voltage: 12V

(Other voltage also can be make: from 2.8V to 230V)

Function: 2or 3 position maintain or return

Terminal:5 PIN terminal

Crust material: Plastic

IP rating: IP40

Temperature: - 25 to 55 Degree

inquiry detail
ELEWIND 22mm Plastic 5 PIN terminal 2 position maintain Round illuminated key lock switch (PB223PY-11Y/21A/G/12V)

22mm Round illuminated key lock switch

Part number:PB223PY-11Y/21A/G/12V

Install diameter:22mm

Switch rating: 3A/250VAC

Shape: Black frame Round head

LED color: Green,Red,Blue,Orange,White,Yellow

Voltage: from 2.8V to 230V

Function: 2 position maintain

Terminal:5 PIN terminal

Crust material: Plastic

IP rating: IP40

Temperature: - 25 to 55 Degree

inquiry detail

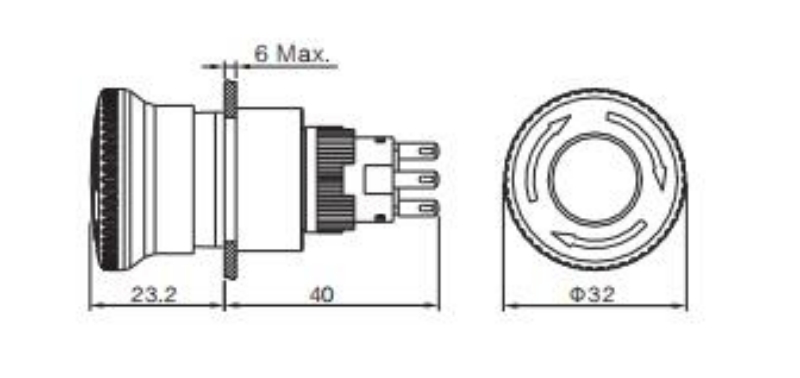

ELEWIND 22mm Plastic 3 PIN terminal Round head Red color emergency stop switch ( PB223WY-11TS/R/IP65 With warning circle )

ELEWIND 22mm emergency stop switch

Part number:PB223WY-11TS/R/IP65 With warning circle

Install diameter:22mm

Switch rating: 3A/250VAC

Shape:Round head

Button color:Red

Terminal:3 PIN terminal

Crust material: Plastic

IP rating: IP65

Temperature: - 25 to 55 Degree

inquiry detail

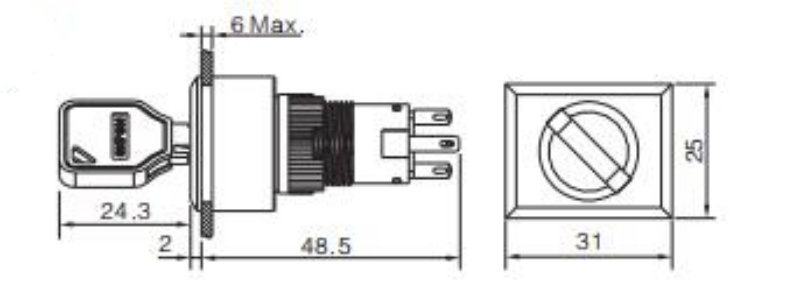

ELEWIND 22mm Plastic 5 PIN terminal Rectangular illuminated key lock switch (PB223WJ-11Y/21A/G/12V ，PB223PJ-11Y/21A/G/12V)

22mm Rectangular illuminated key lock switch

Part number:PB223WJ-11Y/21A/G/12V

Install diameter:22mm

Switch rating: 5A/250VAC

Shape: White frame Rectangular head

LED color: Green，Red,Blue,Orange,White,Yellow

Voltage:from 2.8V to 230V

Function: 2 position maintain

Terminal:5 PIN terminal

Crust material: Plastic

Temperature: - 25 to 55 Degree

inquiry detail
ELEWIND 22mm Plastic Rectangular Ring illuminated selector switch (PB223WJ-11X/21/G/12V ，PB223PJ-11X/21/R/12V )

22mm Rectangular Ring illuminated selector switch

Part number:PB223WJ-11X/21/G/12V

Install diameter:22mm

Switch rating: 3A/250VAC

Shape:White frame Rectangular head

LED color: Green

(Other color you can choose:Red,Blue,Orange,White,Yellow)

Voltage: 12V

(Other voltage also can be make: from 2.8V to 230V)

Function: 2 position maintain

Terminal:5 PIN terminal

Crust material: Plastic

IP rating: IP40

Temperature: - 25 to 55 Degree

inquiry detail

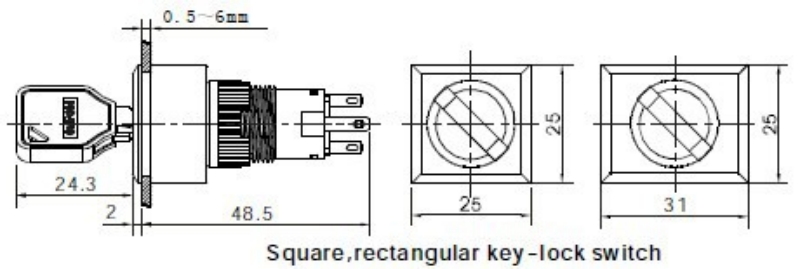

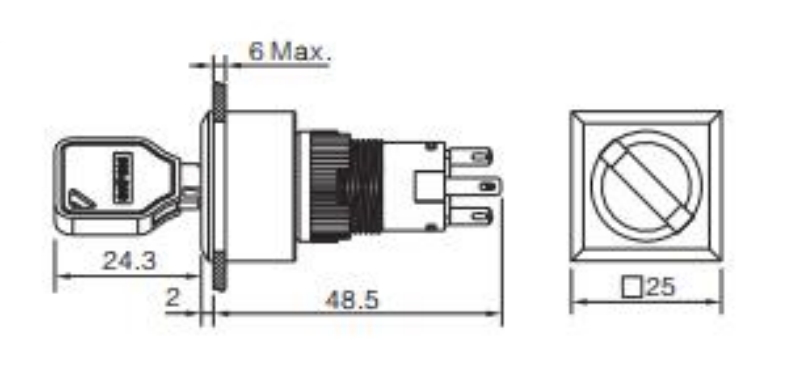

ELEWIND 22mm Plastic 5 PIN terminal square illuminated key lock switch ( PB223PF-11Y/21A/G/12V ，PB223WF-11Y/21A/G/12V )

22mm square illuminated key lock switch

Part number:PB223PF-11Y/21A/G/12V

Install diameter:22mm

Switch rating: 5A/250VAC

Shape: Black frame Square head

LED color: Green,Red,Blue,Orange,White,Yellow

Voltage: from 2.8V to 230V

Function: 2 position maintain

Terminal:5 PIN terminal

Crust material: Plastic

Temperature: - 25 to 55 Degree

inquiry detail
ELEWIND 22mm Plastic 5 PIN termin Square RING illuminated selector switch (PB223PF-11X/21/R/12V ，PB223WF-11X/21/G/12V )

22mm Square ring illuminated selector switch

Part number:PB223PF-11X/21/G/12V

Install diameter:22mm

Switch rating: 3A/250VAC

Shape: Black frame Square head

LED color: Red,Green,Blue,Orange,White,Yellow

Voltage: from 2.8V to 230V

Function: 2 position maintain

Terminal:5 PIN terminal

Crust material: Plastic

IP rating: IP40

Temperature: - 25 to 55 Degree

inquiry detail

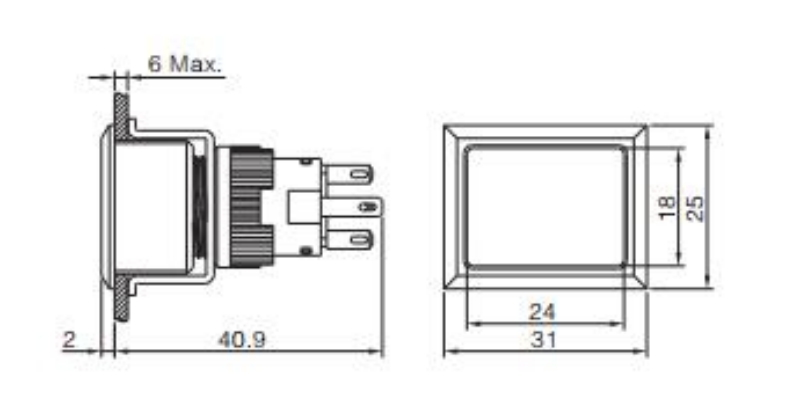

ELEWIND 22mm Plastic Rectangular illuminated push button switch ( PB223WJ-11ZD/B/12V/IP40 , PB223PJ-11ZD/B/12V/IP40)

22mm illuminated Latching push button switch

Part number:PB223WJ-11ZD/B/2.8V/IP40

Install diameter:22mm

Switch rating: 3A/250VAC

Shape: White Rectangular head

LED and Button color: Blue,Red,Green,Orange,White,Yellow

Voltage: from 2.8V to 230V

Function: Latcing (1NO1NC)

Terminal:5 PIN terminal

Crust material: Plastic

IP rating: IP40

Temperature: - 25 to 55 Degree

inquiry detail
