Push Button Switch

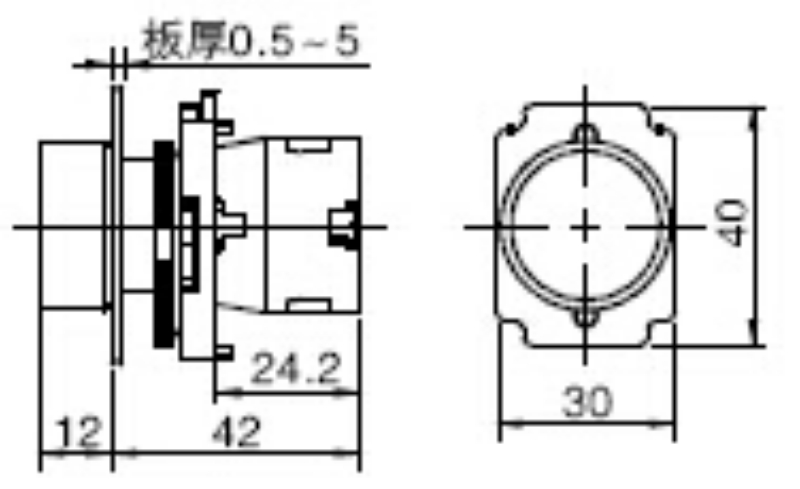

  • 22mm push button 1NO1NC momentary or Latching type ( PB226-11 )

    22mm push button 1NO1NC momentary or Latching type ( PB226-11 )

    6

    Product Feature:

    1.No LED

    4. Function: 1NO1NC Momentary type or Latching type
    (If you need the switch in 1NO,1NC,2NO pls contact us before order)
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.
    inquirydetail

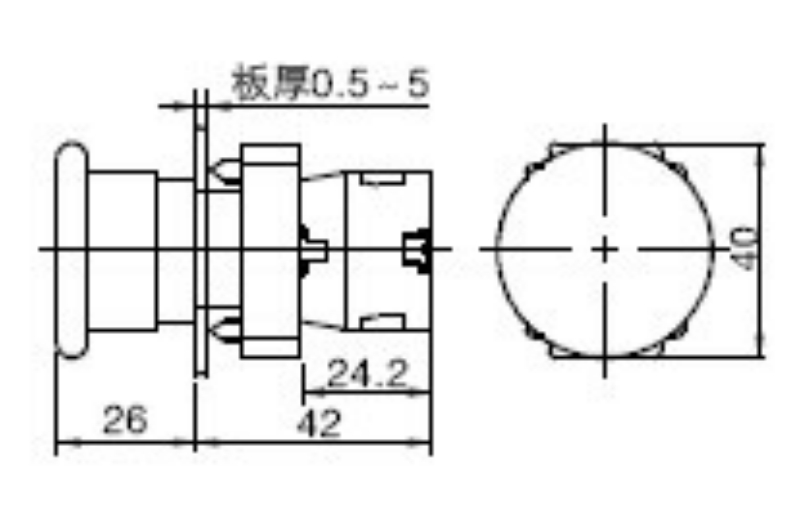

  • 22mm Mushroom push button 1NO1NC momentary or Latching type ( PB226-11M )

    22mm Mushroom push button 1NO1NC momentary or Latching type ( PB226-11M )

    5

    Product Feature:

    1.No LED Mushroom push button

    2. Function: 1NO1NC Momentary type or Latching type
    (If you need the switch in 1NO,1NC,2NO pls contact us before order)
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.



    inquirydetail

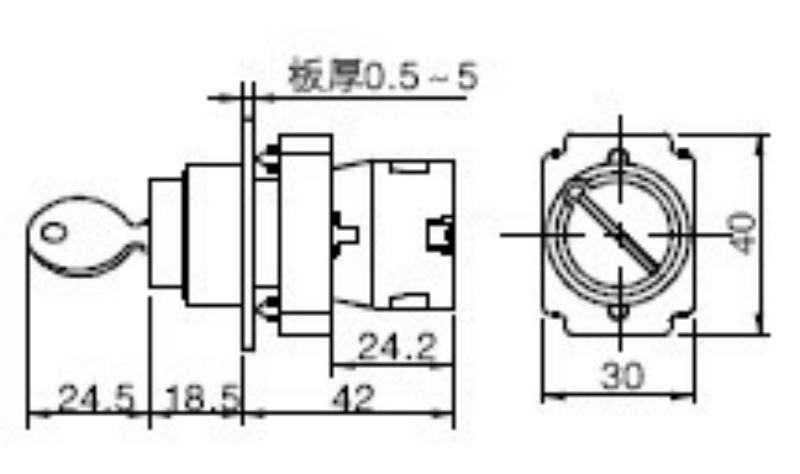

  • 22mm 3 position Key lock switch 2NO ( PB226-20Y/31 )

    22mm 3 position Key lock switch 2NO ( PB226-20Y/31 )

    5

    Product Feature:

    1. 3 position KEY LOCK switch without LED

    2. Function: 2NO type used pupular
    3. Maintained type, Half return and self return type for you choose.
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.



    inquirydetail

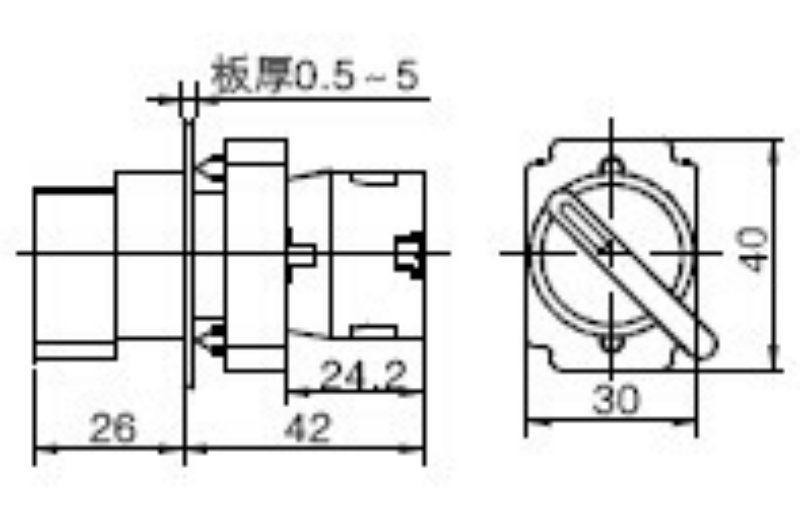

  • 22mm 2 position selector switch 1NO1NC ( PB226-11X/21 )

    22mm 2 position selector switch 1NO1NC ( PB226-11X/21 )

    5

    Product Feature:

    1.No LED 2 position selector switch

    2. Function: 1NO1NC or 1NO type used pupular
    3. Maintained type and self return type for you choose.
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.





    inquirydetail
  • 22mm 3 position selector switch 2NO ( PB226-20X/31 )

    22mm 3 position selector switch 2NO ( PB226-20X/31 )

    5



    Product Feature:

    1. 3 position selector switch with LED or without LED

    2. Function: 2NO type used pupular
    3. Maintained type, Half return and self return type for you choose.
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.



    inquirydetail

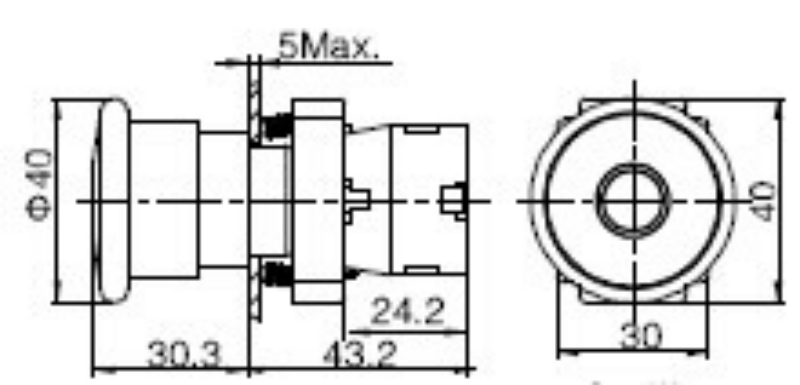

  • 22mm Emergency stop push button switch 1NO1NC or NC type ( PB226-11TSA )

    22mm Emergency stop push button switch 1NO1NC or NC type ( PB226-11TSA )

    5


    Product Feature:

    1.No LED Emergency stop push button switch

    2. Function: 1NO1NC or 1NC type used pupular
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.
    inquirydetail
  • ELEWIND 22mm 1NO1NC two position push button switch same as XB2 series green button push on, red button push off (PB225S-11)

    ELEWIND 22mm 1NO1NC two position push button switch same as XB2 series green button push on, red button push off (PB225S-11)

    5



    ELEWIND 22mm 1NO1NC two position button push button switch same as XB2 series(PB225S-11)



    Part number : PB225S-10

    Install diameter: 22mm
    Shape: two position button

    Function: green button push on, red button push off
    Switch configuration 1NO1NC
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree
    inquirydetail
  • ELEWIND 22mm 1NO Screw terminal two position maintain key lock switch 10A/250V same as XB2 series ( PB225-10Y-21 )

    ELEWIND 22mm 1NO Screw terminal two position maintain key lock switch 10A/250V same as XB2 series ( PB225-10Y-21 )

    5



    ELEWIND 22mm 1NO two position maintain key switch same as XB2 series(PB225-10Y-21)

    Part number : PB225-10Y/21

    Install diameter: 22mm
    Shape: key lock switch

    Function: Two position maintain
    Switch configuration 1NO
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature:

    -40 to 75 Degree
    inquirydetail
  • ELEWIND 22mm Screw terminal 1NO momentary (Push on) mushroom head push button switch same as XB2 series ( PB225-10M-G )

    ELEWIND 22mm Screw terminal 1NO momentary (Push on) mushroom head push button switch same as XB2 series ( PB225-10M-G )

    5



    ELEWIND 22mm 1NO momentary mushroom push button switch same as XB2 series(PB225-10M-G)



    Part number : PB225-10M-G



    Install diameter: 22mm
    Shape: Mushroom head
    Cap color Green
    Function: Momentary(Push on)
    Switch configuration 1NO
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree
    inquirydetail

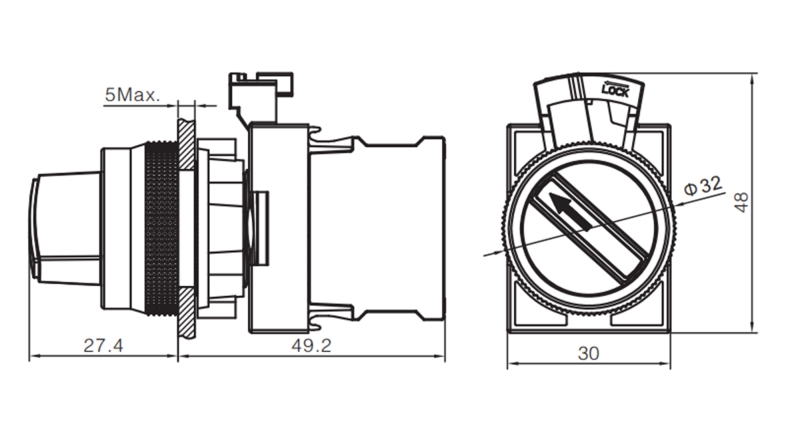

  • ELEWIND 22mm Screw terminal 1NO two position maintain selector Long knob selector switch same as XB2 series ( PB225-10XB-21 )

    ELEWIND 22mm Screw terminal 1NO two position maintain selector Long knob selector switch same as XB2 series ( PB225-10XB-21 )

    5



    ELEWIND 22mm 1NO two position maintain selector switch same as XB2 series(PB225-10XB-21)



    Part number : PB225-10XB/21

    Install diameter: 22mm
    Shape:

    Long knob selector switch

    Function: Two position maintain
    Switch configuration 1NO
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree
    inquirydetail

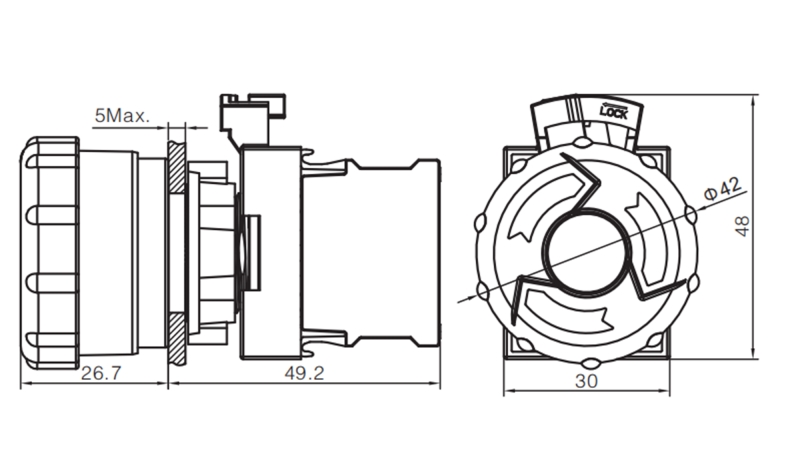

  • ELEWIND 22mm Screw terminal Momentary(Push OFF, pull on) emergency head 1NC Push-pull switch same as XB2 series ( PB225-01MT-R )

    ELEWIND 22mm Screw terminal Momentary(Push OFF, pull on) emergency head 1NC Push-pull switch same as XB2 series ( PB225-01MT-R )

    5



    ELEWIND 22mm 1NC Push-pull Emergency push button switch same as XB2 series(PB225-01MT-R)



    Part number : PB225-01MT-R



    Install diameter: 22mm
    Shape: emergency head
    Cap color Red
    Function: Momentary(Push OFF, pull on)
    Switch configuration 1NC
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree
    inquirydetail
  • ELEWIND 22mm Screw terminal Flat head Economy type 1NO momentary (Push on) push button switch same as XB2 series ( PB225E-10/R )

    ELEWIND 22mm Screw terminal Flat head Economy type 1NO momentary (Push on) push button switch same as XB2 series ( PB225E-10/R )

    5



    ELEWIND 22mm 1NO momentary push button switch same as XB2 series(PB225E-10/R)



    Part number : PB225E-10/R

    ECONOMY TYPE

    Install diameter: 22mm
    Shape: Flat head
    Cap color Red
    Function: Momentary(Push on)
    Switch configuration 1NO
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree
    inquirydetail
