Push Button Switch
-
ELEWIND 19mm momentary (1NO) stainless steel push button switch (PM191H-10/J/S，PM191F-10/S，PM191B-10/S))
Part number:PM191F-10/S
Install diameter:19mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: Screw terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

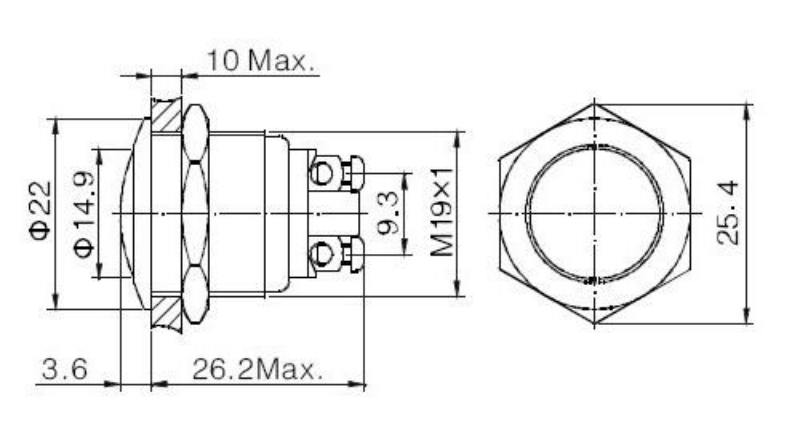

ELEWIND Door Bell symbol 1NO metal Nickel plated brass push button switch(PM191B-10/N with Door Bell Symbol)
Part number:PM191B-10/N with Door Bell Symbol
Install diameter:19mm
Switch rating: 2A/36VDC
Shape: Domed head
Function: Momentary (1NO)
Terminal: Screw terminal
Crust material: Nickel plated brass
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 19mm ring illuminated led light push button switch 1NO momentary Stainless steel metal (PM191F-10E/R/12V/S)
Part number:PM191F-10E/R/12V/S
Install diameter:19mm
Switch rating: 2A/36VDC
Shape: flat head
Function: Momentary (1NO)
LED Voltage: from 2.8V to 250V
LED Color:Red, Green,yellow,blue,orange,white
Terminal: Screw terminal or pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
16mm ring illuminated metal Stainless steel push button with power symbol(PM162F-11ET/B/12V/S , PM162F-ZET/B/12V/S)
16mm ring illuminated push button with power symbol
Part number:
PM162F-11ET/B/12V/S with illuminated power symbol
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary(1NO1NC)(Push on, release off)
Led type: Power symbol illuminated
Color: Blue(Other color can be choose:Red,Yellow,Green,White,Orange)
Voltage: from 2.8V to 250V
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP40
Temperature: – 40 to 75 Degree
-
ELEWIND 16mm Latching or momentary type RGB led color three color light 1NO1NC(PM162F-11ZE/J/RGB/12V/A 4pins for led)
ELEWIND 16mm Latching type RGB led color (PM162F-11ZE/J/RGB/12V/S 4pins for led)
Install diameter:16mm
Switch rating: 2A/48VDC
Shape: Flat head
Function: Latching or momentary (1NO1NC)
Terminal: 7 Pin terminal
Crust material: Black Aluminum alloy or Stainless steel
LED color: Red – Green - Blue, 4pins for led, the common pin is anode if you not requirement.
Voltage: 2.8v to 36v
IP rating: IP40
Temperature: – 40 to 75 Degree
-
16mm Latching or Momentary Black Aluminium push button switch (PM162F-11Z/A, PM162H-11/A CE,ROHS)
Part number:
PM162F-11Z/A
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Flat head or high head
Function: momentary or Latching , 1NO1NC or 2NO2NC
Terminal: 3 Pin terminal
Crust material: Black Aluminium
Temperature: – 40 to 75 Degree
waterproof level：IP40
-
ELEWIND illuminated metal stainless steel push button Momentary type 1NO (PM161H-10E/J/R/12V/S)
number:PM161H-10E/J/R/12V/S
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: High flat head
Function: Momentary (1NO)
Terminal: Pin terminal
Crust material: stainless steel
LED color: Ring illuminated Red color,Blue,Green,Yellow,White,Orange
Voltage: from 1.8V to 48V
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 16mm stainless steel waterproof IP65 anti vandal momentary push button doorbell switch screw terminal (PM161F-10/S)
16mm stainless steel waterproof IP65 anti vandal momentary push button doorbell switch screw terminal
Part number:PM161F-10/S
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: Screw terminal
Crust material: stainless steel
Temperature: – 40 to 75 Degree
-
ELEWIND 16mm Colorful aluminium waterproof IP65 momentary push button switch screw terminal (PM161F-10/CA)
Part number:PM161F-10/CA
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: Screw terminal
Crust material: Aluminum alloy
Temperature: – 40 to 75 Degree
-
ELEWIND 16mm illuminated power symbol push on switchs(PM161F-10ET/J/B/12V/S)
ELEWIND 16mm Ring illuminated switch With illuminated power symbol
Part number:PM161F-10ET/J/B/12V/S
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: 4 Pin terminal
Crust material: stainless steel
LED color: Blue
(Other color you can choose:Red,Green,Yellow,White,Orange)
Voltage: 1.8V to 220v
(Other voltage all need connect outside resistance: from 2.8V to 48V)
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 12mm High dome head push button switch (PM121G-10/R/A)
dome head push button switch (PM121G-10/R/A)
Part number:PM121G-10/R/A
Install diameter:12mm
Switch rating: 2A/36VDC
Shape: High domed head
Button color: Red
(Other color you can choose for Green,Yellow,Red,White and Black)
Function: Momentary (1NO)
Terminal:screw terminal
Crust material: Aluminum ALLOY
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 12mm anti-vandal short body illumianted power symbol push button switch (PM121F-10DT/J/R/12V/S)
Part number:PM121F-10DT/J/R/12V/S
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: 4 Pin terminal
Crust material: stainless steel
LED color: illuminated power symbol, the color have: Red,blue,Green,Yellow,White,Orange
Voltage: from 1.8V to 48V
IP rating: IP65
Temperature: – 40 to 75 Degree
