Push Button Switch
-
12MM new metal Stainless steel momentary or latching push button switch with ring LED light PM125F(H)-10E/S
Part number:PM125F-11E/S PM125H-11E/S
Install diameter:12mm
Shape: Flat head or high head
function: 10NO
current： 2A/36V DC
LED ring light Color: red, green, yellow, blue, white
Function: Momentary (1NO1NC) or latching (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 25 to 55 Degree
-
12MM new metal Stainless steel momentary or latching push button switch without light
Part number:PM125F-11/S PM125H-11/S
Install diameter:12mm
Shape: Flat head or high head
function: 10NO
current： 2A/36V DC
LED ring light Color: NO light
Function: Momentary (1NO1NC) or latching (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 25 to 55 Degree
-

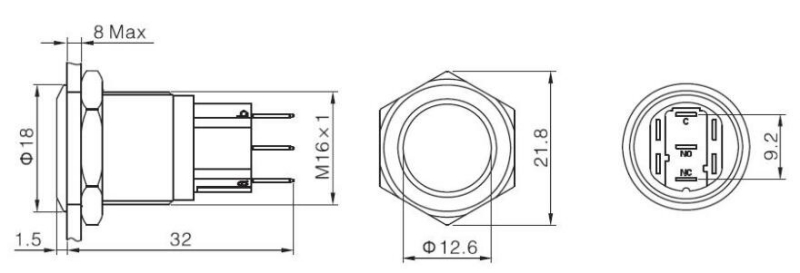

16MM metal Stainless steel or black plated brass 1NO1NC push button switch PM165F(H)-11/J/S(A)
Part number: PM165F(H)-11/J/S(A)
Install diameter: 16MM
Shape: flat head or high head
Function: Momentary (1NO1NC) or latching(1NO1NC) ,
Terminal: Pin terminal
Crust material: Stainless steel or black plated brass
IP rating: IP40
Temperature: – 25 to 55 Degree
High Current： 1A
-
16MM metal Stainless steel or black plated brass 1NO1NC push button switch with ring light PM165F(H)-11E/J/S(A)
Part number: PM165F(H)-11E/J/S(A)
Install diameter: 16MM
Shape: flat head or high head
Function: Momentary (1NO1NC) or latching(1NO1NC) ,
Terminal: Pin terminal
Crust material: Stainless steel or black plated brass
IP rating: IP40
Temperature: – 25 to 55 Degree
High Current： 1A
-
16MM metal Stainless steel 1NO1NC push button switch with illuminated dot light PM165F(H)-11D/J/S
Part number: PM165F(H)-11D/J/S
Install diameter: 16MM
Shape: flat head or high head
Function: Momentary (1NO1NC) or latching(1NO1NC) ,
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
High Current： 1A
-
16MM metal Stainless steel 1NO1NC push button switch with illuminated power symbol PM165F(H)-11DET/J/S
Part number: PM165F(H)-11DET/J/S
Install diameter: 16MM
Shape: flat head
Function: Momentary (1NO1NC) or latching(1NO1NC) ,
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
High Current： 1A
-
ELEWIND 30mm Ring illuminated anti vandal Stainless steel metal push button switch(PM301F-11E/G/12V/S , PM301F-22ZE/G/12V/S )
ELEWIND 30mm Ring illuminated anti vandal push button switch(PM301F-11E/G/12V/S)
Part number:PM301F-11E/G/12V/S
Install diameter:30mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Green,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 15A LARGE current/Big current Stainless steel MetalRing light push button switch (19mm,22mm,25mm, UL approval )
Part number:15A high life big current Metal push button switch with light(PM191-Q-11E/S, UL )
Install diameter:19mm
Switch rating: 15A/250VAC (Resistive load)
Shape: Flat head Ring illuminated
Function:Momentary (Push on,release off) (1NO1NC)
Latching (Push on,push again off) (1NO1NC)
LED Color: Red, green,blue and white for you choose.
Terminal: 5 Pin terminal (4.8*0.5mm for led, 2.8*0.5mm for switch)
Operation travel: about 2.5mm
Panel thickness: 1 – 10mm
Crust and cap material: stainless steel
Operate force:about 6N
IP rating: IP65
Mechanical life: 5,000,000 times
Electrical life: 50,000 times
Operation Temperature: – 25 to 75 Degree
-
ELEWIND 22mm Ring illuminated square DPDT momentary latching Stainless steel push button switch (PM222S-11E/G/12V/S )
Part number:PM222S-11E/G/12V/S
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: square head ,
Function: Momentary or latching (1NO1NC)
Led type: Ring illuminated
Color: Green,Red,Yellow,Blue,White,Orange
Voltage: 12V
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm stainless steel Ring illuminated Momentary Latching (1NO1NC) push button(PM222F-11ZE/G/12V/S)
Part number:PM222F-11ZE/G/12V/S
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Latching(1NO1NC)
Led type: Ring illuminated
Color: Green,Red,Yellow,Blue,White,Orange
Voltage: 12V
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm UV-proof plastic Ring illuminated Momentary push button switch(PM221F-11E/J/△/▲/PC)
Important parameter:
1. Switch rating: Ui:250V，Ith:5A
2. Mechanical life: ≥1,000,000 cycles
3. Electrical life: ≥50,000 cycles
4. Contact resistance: ≤50mΩ
5. Insulation resistance: ≥100MΩ(500VDC)
6. Dielectric strength：1,500V，RMS 50Hz，1min
7. Operation temperature: – 25 ℃~55℃ (+no freezing)
8. Operating pressure: about 4N(1NO1NC)
9. Operation travel: about 2.5mm
10. Torque：about 0.8Nm Max.applied to nut
11. Front panel protection degree：IP65，IK02
12. Terminal type: Pin terminal (2.8×0.5mm) -
ELEWIND 22mm stainless steel Pin terminal Momentary or Latching 1NO1NC push button(PM221F-11/S , PM221F-11Z/S)
Part number:PM221F-11Z/S
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Latching (1NO1NC)
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
