Push Button Switch
-
16MM metal Stainless steel 1NO1NC momentary latching on-off push button switch with Dot LED light PM164F(H)-11D/S
Part number:PM164F(H)-11D/S
Install diameter: 16MM
Shape: Flat head or high head
Function: Momentary or latching
Contact Configuration： 1NO1NC
Dot LED light color: red blue yellow green white
voltage: 1.8V-220V
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
-
16MM metal Stainless steel 1NO1NC 2NO2NC momentary latching push button switch with power illuminated symbol PM164F-11ET/S
Part number:PM164F-11ET/S
Install diameter: 16MM
Shape: Flat head
Function: Momentary or latching
Contact Configuration： 1NO1NC or 2NO2NC
power illuminated symbol color: red blue yellow green white
voltage: 1.8V-220V
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
-

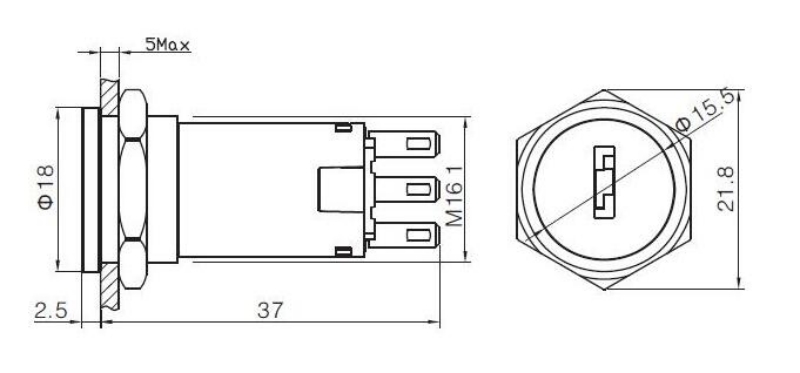

16MM metal Stainless steel key switch Two Position Three Position Maintain Return PM164F-11Y/S
Part number:PM164F-11Y/S
Install diameter: 16MM
Shape: key switch
Function: Maintain or return
Contact Configuration： Two Position or Three Position
voltage: 1.8V-220V
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
-

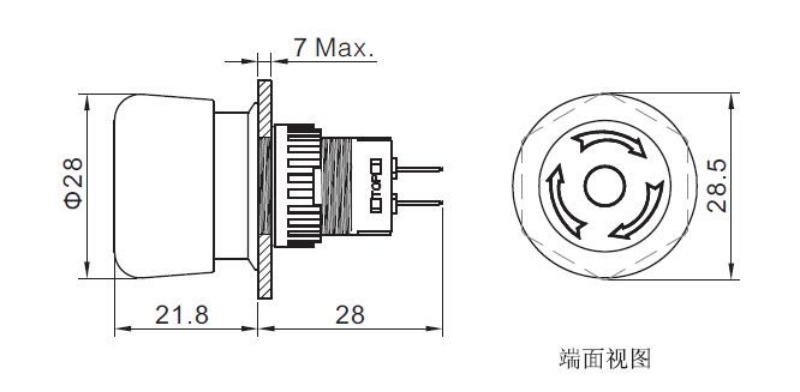

ELEWIND 16MM metal Round stop emergency aluminium alloy push button switch PM164F-11TSB
Part number:PM164F-11TSB
Install diameter: 16MM
Function: stop emergency push button switch
Contact Configuration： 1NO1NC or 2NO2NC
voltage: 1.8V-220V
Terminal: Pin terminal
Crust material: aluminium alloy
IP rating: IP40
Temperature: – 25 to 55 Degree
-

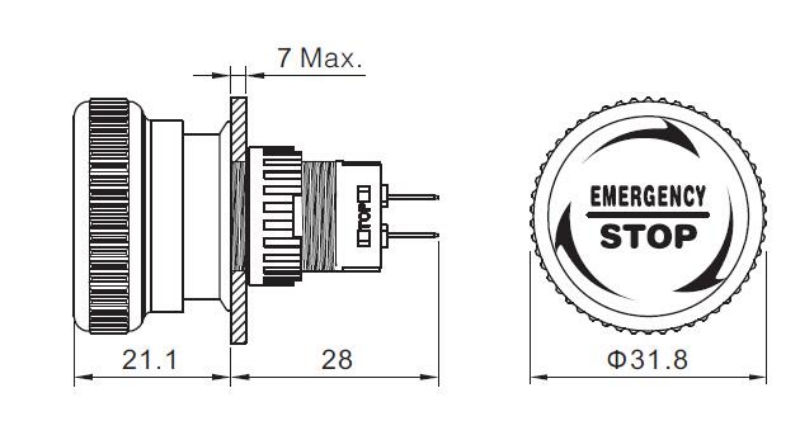

ELEWIND 16MM metal Round stop emergency aluminium alloy push button switch PM164F-11TSD
Part number:PM164F-11TSD
Install diameter: 16MM
Function: stop emergency push button switch
Contact Configuration： 1NO1NC or 2NO2NC
voltage: 1.8V-220V
Terminal: Pin terminal
Crust material: aluminium alloy
IP rating: IP40
Temperature: – 25 to 55 Degree
-

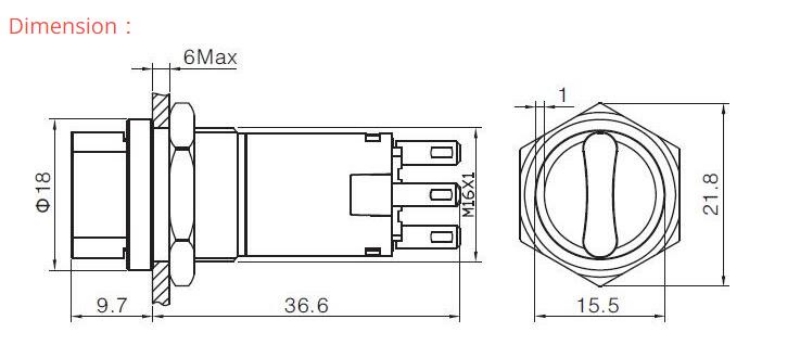

16MM metal Stainless steel Illuminated Selector switch knob switch two three position Maintain Return PM164F-11X/21/S
Part number:PM164F-11X/21/SInstall diameter: 16MM
Shape: Selector switch
Function: Maintain or return
Contact Configuration： Two Position or Three Position
voltage: 1.8V-220V
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
-
19MM new High Current 20A metal Stainless steel 10NO momentary or latching push button switch without LED light PM196F-10/J/S
Part number:PM196F-10/J/S
Install diameter: 19MM
Shape: Flat head
LED ring light Color: NO light
Function: Momentary (10NO) or latching (10NO)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
High Current： 20A
-
19MM new High Current 20A metal Stainless steel momentary or latching push button switch with ring LED light PM196F-10E/J/S
Part number:PM196F-10E/J/S
Install diameter: 19MM
Shape: Flat head
LED ring light Color: RED, GREEN, BLUE, WHITE,YELLOW
Function: Momentary (10NO) or latching (10NO)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
High Current： 20A
-

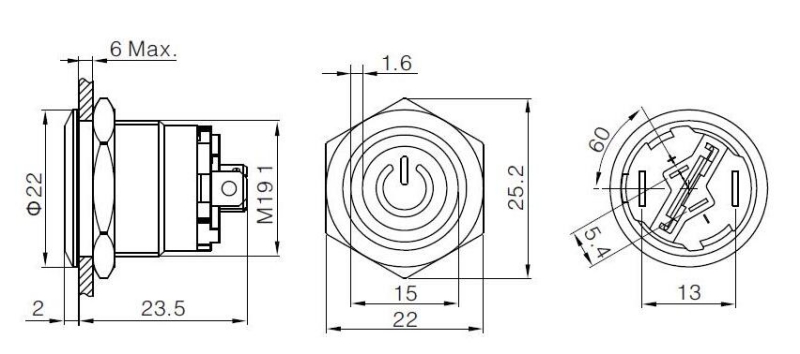

19MM new High Current 20A metal Stainless steel push button switch with illuminated power symbol light PM196F-10ET/J/S
Part number:PM196F-10ET/J/S
Install diameter: 19MM
Shape: Flat head
LED illuminated power symbol light Color: RED, GREEN, BLUE, WHITE,YELLOW
Function: Momentary (10NO) or latching (10NO)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 25 to 55 Degree
High Current： 20A
-

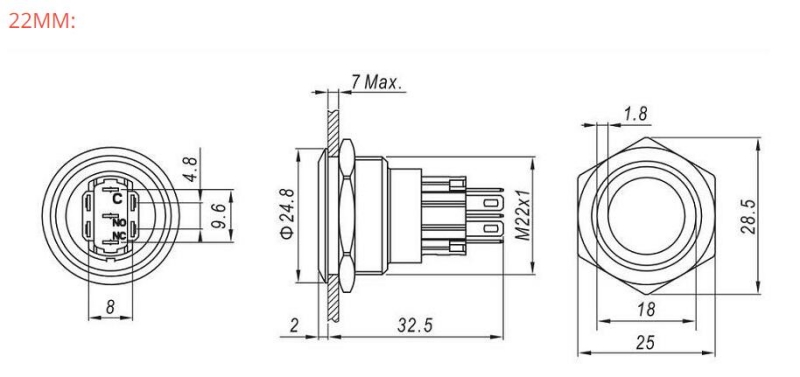

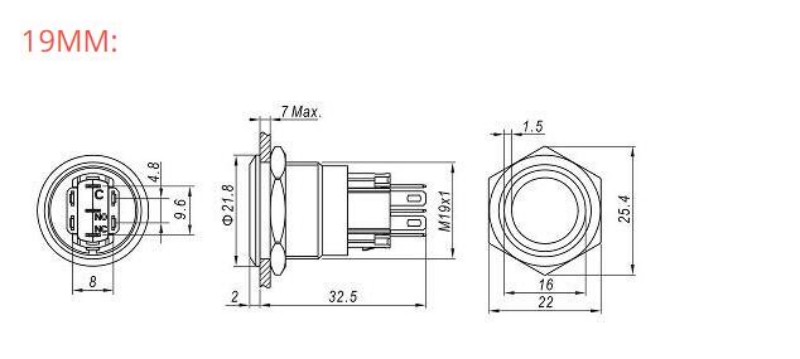

ELEWIND 19mm 22mm metal Stainless steel 1NO1NC momentary latching push button switch with LED ring light PM225F-11E/S
Part number:PM225F-11E/S PM195F-11E/S
Install diameter:22mm OR 19MM
Shape: Flat head
LED ring light Color: Blue RED,Green,Yellow,White, can choose
Voltage: 1.8V-220V
Function: Momentary (1NO1NC) or latching (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 40 to 75 Degree
-

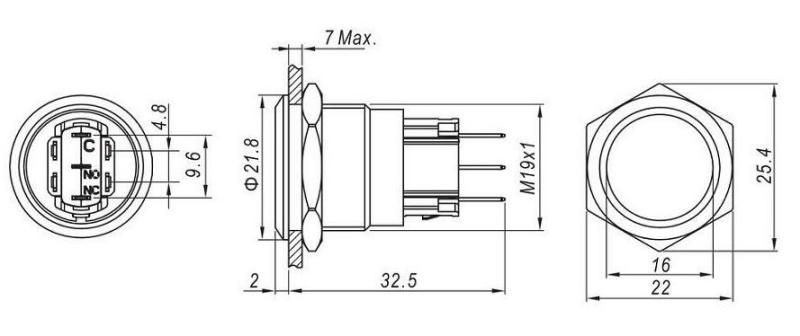

ELEWIND 19mm 22mm metal Stainless steel 1NO1NC momentary latching push button switch without LED light PM225F-11/S
Part number:PM225F-11/S PM195F-11/SInstall diameter:22mm OR 19MM
Shape: Flat head
LED ring light Color: NO light
Function: Momentary (1NO1NC) or latching (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 40 to 75 Degree
-
ELEWIND 19mm 22mm metal Stainless steel 1NO1NC momentary latching push button switch illuminated power symbol PM225F-11ET/S
Part number:PM225F-11ET/S PM195F-11ET/S
Install diameter:22mm OR 19MM
Shape: Flat head
LED shape: illuminated power symbol
LED ring light Color: Blue RED,Green,Yellow,White, can choose
Voltage: 1.8V-220V
Function: Momentary (1NO1NC) or latching (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP40
Temperature: – 40 to 75 Degree
