Push Button Switch
-

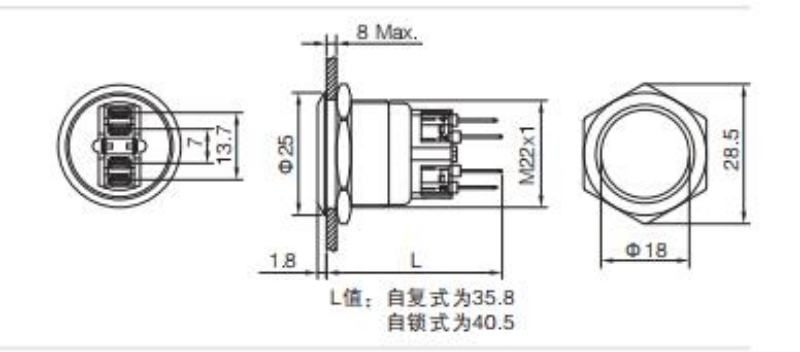

ELEWIND 22mm 1NO1NC push button with ENGINE START symbol ( PM221F-11Z/S with ENGINE START symbol)
Part number:PM221F-11Z/S with ENGINE START symbol
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Latching (1NO1NC)
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm Stainless steel metal engine start stop push button switch(PM221F-11E/B/12V/S with symbol)
22mm engine start stop push button switch
Part number:PM221F-11E/B/12V/S with symbol
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue
(Other color can be make:RED,Green,Yellow,White,Orange)
Voltage:12V (Other voltage can be make:2.8V to 250V)
Function: Momentary (1NO1NC)
Terminal: 6 Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

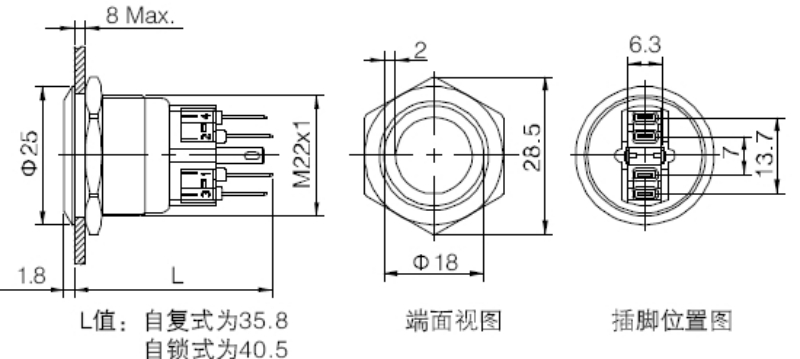

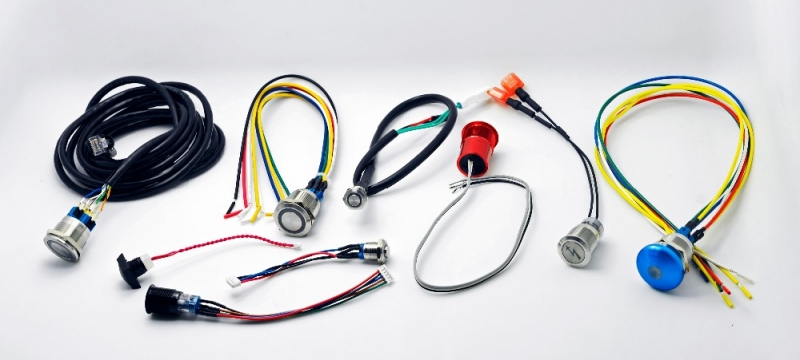

ELEWIND 22mm Ring illuminated push button switch (PM222F-11△E/▲/☆/S with connect waterproof wires )
Part number:PM222F-11△E/▲/☆/S with connect waterproof wires
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary or Latching(1NO1NC)
Led type: Ring illuminated
Color: Green,Red,Yellow,Blue,White,Orange
Voltage: 5v~220v
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

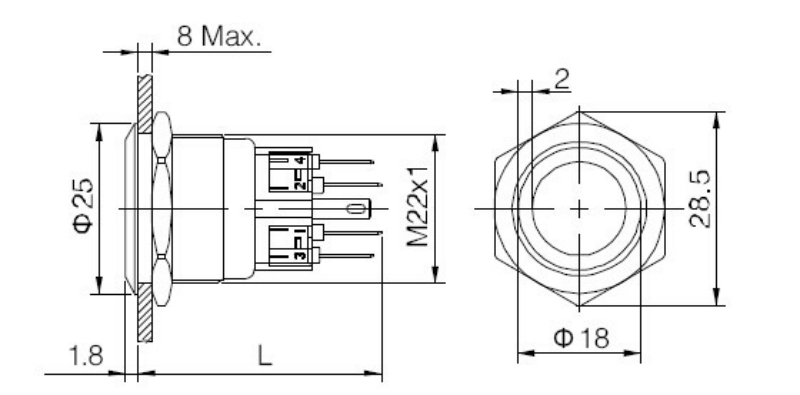

ELEWIND 22mm metal momentary push button switch with connector(PM221F-11E/B/12V/S)
22mm Ring illuminated momentary push button switch with connector
Part number:PM221F-11E/B/12V/S
Install diameter:22mm
Switch rating:5A/250VAC
Shape: Flat head
Color: Blue,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: momentary(1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm Two LED color Momentary push button switch(PM221F-11E/R-G/12V/S/3pins for Two led)
Part number:PM221F-11E/R-G/12V/S 3pins for Two led
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Color: Red or Green
Voltage: 12V (Other voltage can be make:6V to 24V)
Function:Momentary(1NO1NC)
Terminal: 7 pin terminal
(3 pins for LED, one is common pins, another 2 pins for other two color)
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm champagne color Ring illuminated Momentary latching metal Stainless steel push button switch(PM221F-11E/B/12V/CS)
Part number:PM221F-11E/B/12V/CS
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Color: Blue
(Other color can be make:RED,Green,Yellow,White,Orange)
Voltage: 12V (Other voltage can be make:2.8V to 250V)
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel of champagne color
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm Black aluminum metal Momentary latching 1NO1NC push button switch(PM221F-11/A)
Part number:PM221F-11/A
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Black aluminum
IP rating: IP65
Temperature: – 40 to 75 Degree
-

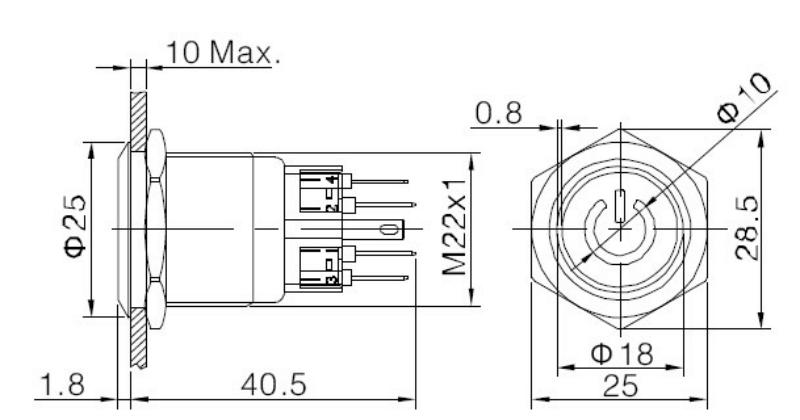

ELEWIND 22mm stainless steel illuminated power symbol push button switch(PM221F-11ZET/B/S)
ELEWIND 22mm stainless steel illuminated power symbol push button switch(PM221F-11ET/B/12V/S)
Part number:PM221F-11ZET/B/12V/S
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue
(Other color can be make:RED,Green,Yellow,White,Orange)
Voltage: 12V (Other voltage can be make:2.8V to 250V)
Function: Latching (1NO1NC),push on and push off. Momentary, push on release off
Terminal: Pin terminal or 15cm cable wiring
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

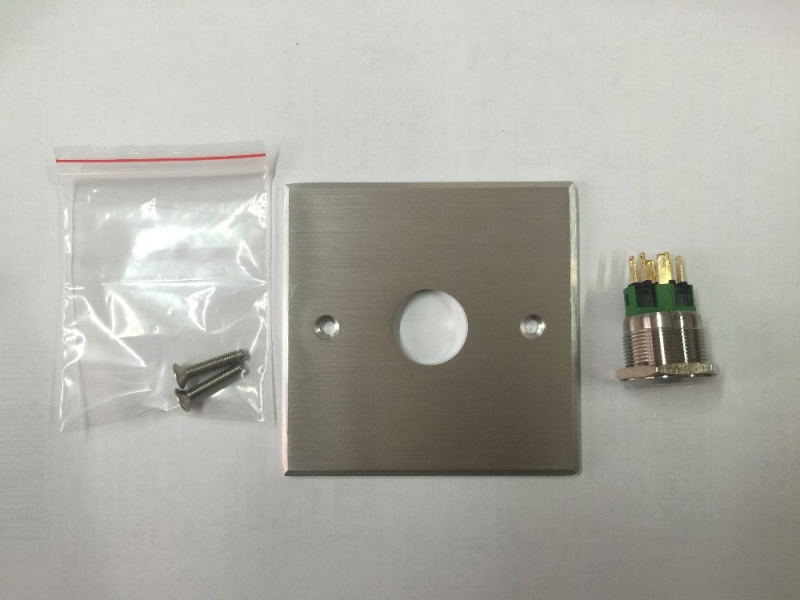

ELEWIND 22mm Stainless steel door bell button ( PM221F-11E/B/12V/S with silver or black aluminium plate )
Part number:PM221F-11E/B/12V/S with Silver Aluminum plate
Install diameter:22mm
Plate dimension: 86mm*86mm
Switch rating: 3A/250VAC
Shape: Flat head
Color: Blue
Switch material: Stainless steel
Plate material: Silver aluminum
Color:Blue,RED,Green,Yellow,White,Orange
Voltage: from 6V to 250V
Function: Momentary(1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

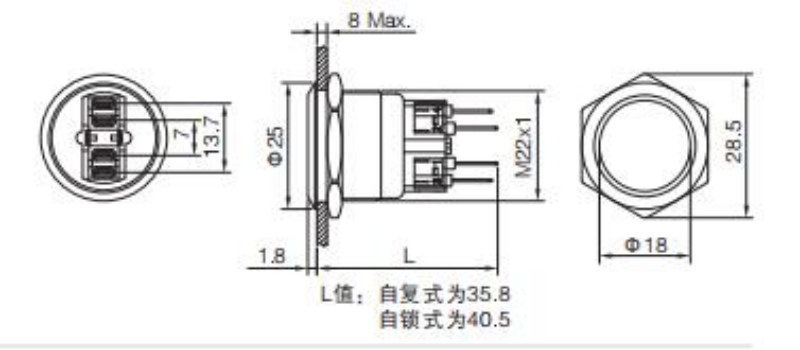

ELEWIND 22mm Flat head stainless steel Momentary Latching(1NO1NC) or 2NO2NC LOCK push button(PM222F-11Z/S , PM222F-11/S )
ELEWIND 22mm LOCK push button(PM222F-11Z/S)
Part number:PM222F-11Z/S
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Latching(1NO1NC)
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 19mm KEY SWITCH (PM193F-11Y/21 )
ELEWIND 19mm KEY SWITCH (PM193F-11Y/21 )
Part number:PM193F-11Y/21
Install diameter:19mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: 2 Position key switch
Terminal: 4 Pin terminal
Temperature: – 40 to 75 Degree
-
ELEWIND 19mm stainless steel Momentary Metal Doorbell button switch ( PM193F-11/R/12V/S With illuminated doorbell symbol )
ELEWIND Metal Doorbell button switch(PM193F-11/R/12V/S With illuminated doorbell symbol)
Part number:PM193F-11/R/12V/S With illuminated doorbell symbol
Install diameter:19mm
Switch rating: 5A/250VAC
Shape: Flat head
Function: Momentary(1NO1NC)
Led type: illuminated doorbell symbol
Color: Red,Blue,Yellow,Green,White,Orange
Voltage: From1.8V to 250V
Terminal: 6 Pin terminal
Crust material: stainless steel
IP rating: IP65/IP67 can make to order
Temperature: – 40 to 75 Degree
