plastic switch

  • ELEWIND 16MM illuminated Emergency stop switch ( PB162Y-11TS/R/12V,CE,Rohs )

    ELEWIND 16MM illuminated Emergency stop switch ( PB162Y-11TS/R/12V,CE,Rohs )

    1



    ELEWIND 16mm Illuminated Emergency stop switch

    Part number:PB162Y-11TS/R/12V

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Round

    Button color: RED

    LED voltage:12V

    Function: Push lock,turn reset (1NO1NC)

    Terminal:6 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail
  • ELEWIND 22mm emergency stop switch with switch box (PB222-11TSA/R/P/T14/2260 with switch box)

    ELEWIND 22mm emergency stop switch with switch box (PB222-11TSA/R/P/T14/2260 with switch box)

    1



    ELEWIND 22MM emergency stop switch with switch box

    Part number:PB222-11TSA/R/P/T14/2260 with switch box

    Install diameter:22mm

    Switch rating: 5A/250VAC

    Shape:Round head

    Button color:Red

    Terminal:SCREW terminal

    Contact configuration: 1NO1NC

    Crust material: Plastic

    IP rating: IP65

    Temperature: - 25 to 55 Degree

    inquirydetail
  • ELEWIND 16mm Emergency stop switch (PB161Y-11TS/R,CE,ROHS)

    ELEWIND 16mm Emergency stop switch (PB161Y-11TS/R,CE,ROHS)

    1



    ELEWIND 16mm Emergency stop switch

    Part number:PB161Y-11TS/R with guard

    Install diameter:16mm

    Switch rating: 3A/250VAC

    Shape: Round

    Button color: RED

    Function: Push lock,turn reset (1NO1NC)

    Terminal:3 PIN terminal

    Crust material: Plastic

    Temperature: - 25 to 55 Degree

    inquirydetail
  • ELEWIND 22mm high quality Emergency stop switch with switch box (PB22-11TSB/IP65 with switch box)

    ELEWIND 22mm high quality Emergency stop switch with switch box (PB22-11TSB/IP65 with switch box)

    1



    ELEWIND high quality Emergency stop switch with switch box (PB22-11TSB with switch box)

    Part number:PB22-11TSB/IP65 with switch box

    Install diameter:22mm

    Switch rating: 5A/250VAC

    Shape:Round head

    Button color:Red

    Operation: Push lock, Turn reset

    Terminal:SCREW terminal

    Contact configuration: 1NO1NC

    Crust material: Plastic

    IP rating: IP65

    Temperature: - 40 to 75 Degree

    inquirydetail
  • ELEWIND 22mm plastic Screw terminal 1NO1NC Push on momentary button switch RED Cap color ( PB226-11/R )

    ELEWIND 22mm plastic Screw terminal 1NO1NC Push on momentary button switch RED Cap color ( PB226-11/R )

    6



    ELEWIND 22mm1NO1NC Push on momentary switch (PB226-11/R)

    Part number : PB226-11/R

    Install diameter: 22mm

    Shape:

    		 PUSH BUTTON switch
    Cap color RED
    Function: push button switch
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree

    If you need with light pls contact us.

    inquirydetail
  • ELEWIND 30mm Screw terminal RED Cap color 1NO1NC Push on momentary button switch WITH LIGHT ( PB228-11D/R/12V )

    ELEWIND 30mm Screw terminal RED Cap color 1NO1NC Push on momentary button switch WITH LIGHT ( PB228-11D/R/12V )

    6



    ELEWIND 25mm1NO1NC Push on momentary switch WITH LIGHT (PB228-11D/R/12V)

    Part number : PB228-11D/R/12V

    Install diameter: 25mm
    Shape: PUSH BUTTON switch
    Cap color RED
    Function: push button switch
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree

    If you need with light pls contact us.

    inquirydetail
  • ELEWIND 25mm plastic Screw terminal 1NO1NC Push on momentary button switch RED Cap color ( PB227-11/R )

    ELEWIND 25mm plastic Screw terminal 1NO1NC Push on momentary button switch RED Cap color ( PB227-11/R )

    6



    ELEWIND 25mm1NO1NC Push on momentary switch (PB227-11/R)

    Part number : PB227-11/R

    Install diameter: 25mm
    Shape: PUSH BUTTON switch
    Cap color RED
    Function: push button switch
    Terminal: Screw terminal
    Switch Rating: 10A/250V
    Operation Temperature: -40 to 75 Degree
    inquirydetail
  • ELEWIND 22mm Illuminated Metal push button 1NO1NC momentary or Latching type ( PB226-11E )

    ELEWIND 22mm Illuminated Metal push button 1NO1NC momentary or Latching type ( PB226-11E )

    6



    Product Feature:

    1. Ring illuminated type

    2. LED Color: Red, Green,Blue,Yellow, WHITE
    3. Led voltage: from 5V to 380VAC
    4. Function: 1NO1NC Momentary type or Latching type
    (If you need the switch in 1NO,1NC,2NO pls contact us before order)
    inquirydetail

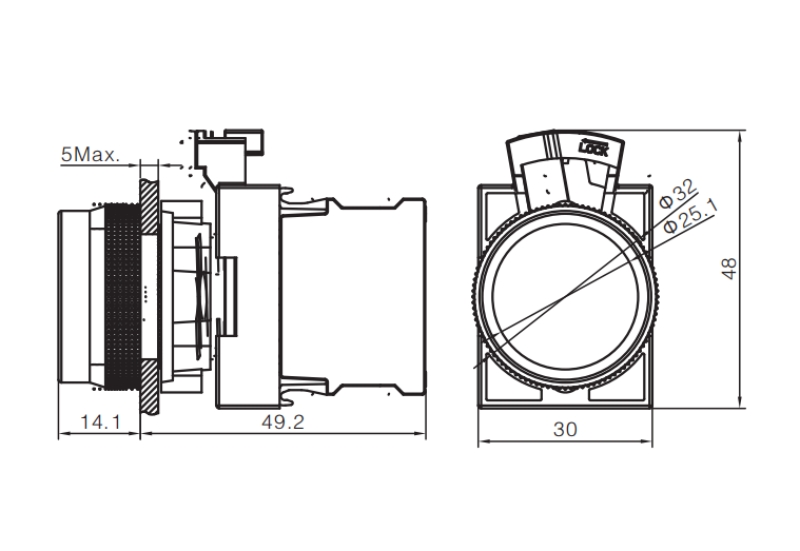

  • 22mm push button 1NO1NC momentary or Latching type ( PB226-11 )

    22mm push button 1NO1NC momentary or Latching type ( PB226-11 )

    6

    Product Feature:

    1.No LED

    4. Function: 1NO1NC Momentary type or Latching type
    (If you need the switch in 1NO,1NC,2NO pls contact us before order)
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.
    inquirydetail

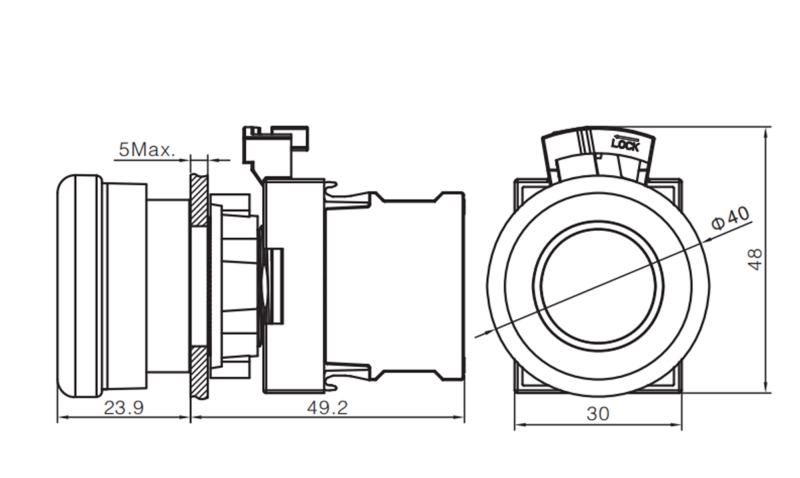

  • 22mm Mushroom push button 1NO1NC momentary or Latching type ( PB226-11M )

    22mm Mushroom push button 1NO1NC momentary or Latching type ( PB226-11M )

    5

    Product Feature:

    1.No LED Mushroom push button

    2. Function: 1NO1NC Momentary type or Latching type
    (If you need the switch in 1NO,1NC,2NO pls contact us before order)
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.



    inquirydetail

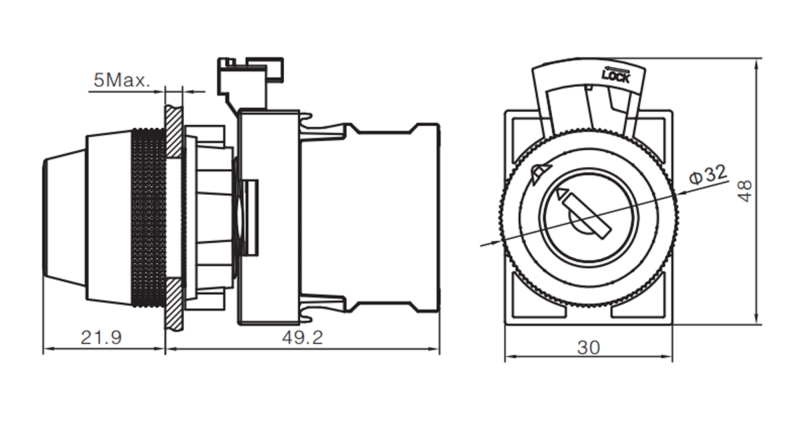

  • 22mm 3 position Key lock switch 2NO ( PB226-20Y/31 )

    22mm 3 position Key lock switch 2NO ( PB226-20Y/31 )

    5

    Product Feature:

    1. 3 position KEY LOCK switch without LED

    2. Function: 2NO type used pupular
    3. Maintained type, Half return and self return type for you choose.
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.



    inquirydetail

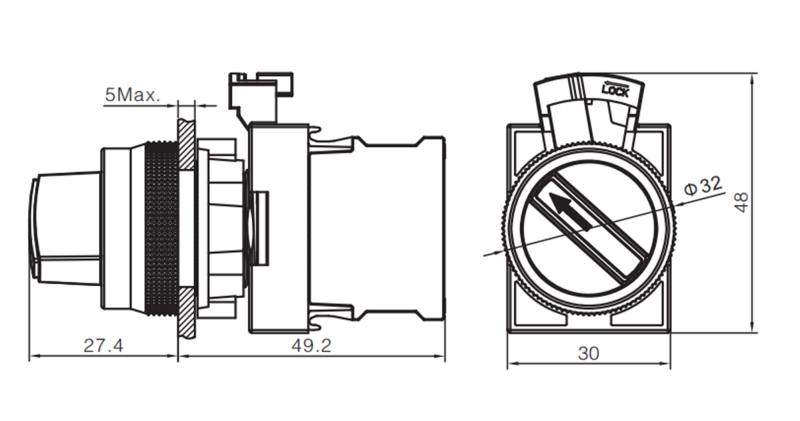

  • 22mm 2 position selector switch 1NO1NC ( PB226-11X/21 )

    22mm 2 position selector switch 1NO1NC ( PB226-11X/21 )

    5

    Product Feature:

    1.No LED 2 position selector switch

    2. Function: 1NO1NC or 1NO type used pupular
    3. Maintained type and self return type for you choose.
    Product Advantage

    1. Button head adopts metal knurled design, beautiful and atmospheric.

    2. Oversized button with comfortable operation.
    3.To remove the operation part, please press the red locking handle
    and rotate it, so as to prevent misoperation and improve the safety.
    4. Slow moving switch element, with self-cleaning function,
    more safe and reliable.
    5. The switch structure adopts built-in screws to prevent electric shock.
    6. The switch adopts independent chip structure with smaller volume
    and shorter length, building block structure can be combined arbitrarily.
    7.The structure with lamp does not need to be lengthened,
    and the length of product is shorter.
    8. All products with LED can be customized with bi-colour light.





    inquirydetail
