Metal Push Button Switch

  • ELEWIND 19MM Contactless Sensor Switch Ring illuminated metal stainless steel with 30cm wire DC12V

    ELEWIND 19MM Contactless Sensor Switch Ring illuminated metal stainless steel with 30cm wire DC12V

    1 2



    1.Places with large dust;

    2 Places with more corrosive gases;

    3 Places with strong direct sunlight such as outdoors or sunlight;

    4 The ambient temperature during use should be within the specified rated range;

    5 Please confirm whether the installation is loose or skewed due to vibration impact etc

    6 When installing the sensor beating with a hammer will damage the water-resistant structure please pay attention.

    inquirydetail
  • ELEWIND 19mm stainless steel Flat head 4 Pin terminal(1NO1NC) Key lock switch ( PM195F-11Y/21 )

    ELEWIND 19mm stainless steel Flat head 4 Pin terminal(1NO1NC) Key lock switch ( PM195F-11Y/21 )

    1



    Part number:PM195F-11Y/21 key cann’t remove in the ON position.

    Install diameter:19mm

    Switch rating: 3A/250VAC

    Shape: Flat head

    Function: Two position maintain key lock switch , the key cann’t remove in the ON position.

    Terminal: 4 Pin terminal(1NO1NC)

    Crust material: stainless steel

    Temperature: – 40 to 75 Degree

    inquirydetail
  • ELEWIND 19mm stainless steel Momentary short length body push button switch ( PM19W-10E/R/12V/S )

    ELEWIND 19mm stainless steel Momentary short length body push button switch ( PM19W-10E/R/12V/S )

    1



    Part number:Short length body push button switch(PM19W-10E/R/12V/S )

    Install diameter:19mm

    Switch rating: 50mA/24VDC

    Shape: Flat head

    Function:Momentary (Push on)  (1NO)

    Terminal: 4 Pin terminal (2.8*0.5mm)

    Operation travel: 0.5mm

    Panel thickness: 1 – 7mm

    Crust material: stainless steel

    Base material: PA

    Operate force: 3N-6N

    LED color: Red – Green - Blue- White for you choose.

    Voltage:12V (Other voltage need MOQ 50pcs)

    IP rating: IP65

    Mechanical and electrical life: 500,000 times

    Operation Temperature: – 40 to 75 Degree

    inquirydetail
  • ELEWIND 22mm Metal push button 1NO1NC momentary or Latching type ( PB226-11P )

    ELEWIND 22mm Metal push button 1NO1NC momentary or Latching type ( PB226-11P )

    6

    Product Feature:

    1.Metal aluminium button
    2. Function: 1NO1NC Momentary type or Latching type
    (you can choose the switch contact block in 1NO,1NC,2NO)
    inquirydetail
  • DCRS Digital Code Rotary Switches

    DCRS Digital Code Rotary Switches

    4



    SPECIFICATION:



    Rated capacity:5VDC/0.25A,25VAC/0.5A,50VAC/0.05A
    Insulation Resistance:≥500MΩ
    Dielectric Strength:250VAC between term;1500VAC
    between term and frame.
    Protective Degree:IP65
    Operating Temperature:-20℃～70℃
    Storage Temperature:-40℃～70℃



    Characteristics
    Full closed structure
    Full closed, have the excellent characteristics of
    preventing oil and water, the Product Degree: IP65.
    Easy for wire connect
    Use the digital coding, and easy for wire connect, can be
    connected with the linker.
    Easy to set the numerical value
    Changing the fixing screw position to change the setting.
    Use the gold-clad contact.
    Use the double slide gold-clad contact to keep the
    contact resistance steady, and improve the work reliability.
    Preventing the wrong signal.
    According to the coding, can be set to INHIBIT terminal
    and PARITY terminal.
    Firm and reliable, the distortion distance strength is 3Nm.
    Ensure over 50,000 times operations.
    Mainly fit for choosing
    mechanical panel’s wave bands
    of operation mode, axial direction, rate and the percentage of speed.
    inquirydetail
  • ELEWIND 25mm 15A big current Latching switch,UL approval ( PM251-Q-11Z/S )

    ELEWIND 25mm 15A big current Latching switch,UL approval ( PM251-Q-11Z/S )

    1



    Part number:15A big current Latching push button switch(PM251-LC-11Z/S )

    Install diameter:25mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head

    Function:Latching (Push on,push again off)  (1NO1NC)

    Terminal: 3 Pin terminal (4.8*0.5mm)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 40 to 75 Degree

    inquirydetail
  • ELEWIND 30mm 15A big current Latching push button switch,UL approval ( PM301-LC-11Z/S )

    ELEWIND 30mm 15A big current Latching push button switch,UL approval ( PM301-LC-11Z/S )

    1



    Part number:15A big current LatchingMetal push button switch(PM301-LC-11Z/S )

    Install diameter:30mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head

    Function:Latching (Push on,push again off)  (1NO1NC)

    Terminal: 3 Pin terminal (4.8*0.5mm)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 30mm 15A big current Metal push button switch with dot light ( PM301-LC-11D/S, UL approval )

    ELEWIND 30mm 15A big current Metal push button switch with dot light ( PM301-LC-11D/S, UL approval )

    1







    Part number:15A big current Metal push button switch with illuminated dot symbol(PM301-LC-11D/S, UL )

    Install diameter:30mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head  Dot symbol illuminated

    Function:Momentary (Push on,release off)  (1NO1NC)

    LED Color: Red, green,blue and white for you choose.

    Terminal: 5 Pin terminal (4.8*0.5mm for led, 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 25mm 15A big current Latching push button switch with light ( PM251-LC-11ZD/S, UL approval )

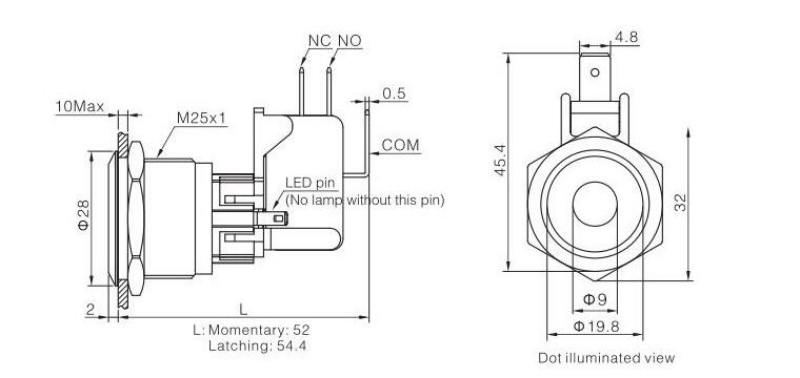

    ELEWIND 25mm 15A big current Latching push button switch with light ( PM251-LC-11ZD/S, UL approval )

    1



    Part number:15A big current Latching push button switch with light(PM251-LC-11ZD/S, UL )

    Install diameter:25mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head Dot illuminated

    Function:Latching (Push on,push again off)  (1NO1NC)

    LED Color: Red, green,blue and white for you choose.

    Terminal: 5 Pin terminal (4.8*0.5mm for led, 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 22mm Long life over 15A Large current push button switch, Momentary/Latching ( PM221-Q-11/S, UL approval )

    ELEWIND 22mm Long life over 15A Large current push button switch, Momentary/Latching ( PM221-Q-11/S, UL approval )

    1



    Part number:15A big current Metal push button switch(PM221-Q-11/S, UL )

    Install diameter:22mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head Ring illuminated

    Function:Momentary type (Push on,release off)  (1NO1NC)   Or

                    Latching type(Push on, push again off) (1NO1NC)

    Terminal: 3 Pin terminal ( 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • ELEWIND 19mm High life over 15A LARGE current Metal push button switch, Momentary / Latching ( PM191-Q-11/S, UL approval )

    ELEWIND 19mm High life over 15A LARGE current Metal push button switch, Momentary / Latching ( PM191-Q-11/S, UL approval )

    1



    momentary type: push on, release off （no locking）

    latching type: push on, push again off (locking)



    Part number:15A big current Metal push button switch, momentary/latching (PM191-Q-11/S, UL )

    Install diameter:19mm

    Switch rating: 15A/250VAC (Resistive load)

    Shape: Flat head

    Function:Momentary (Push on,release off)  (1NO1NC) or

    Latching (Push on,push again off)  (1NO1NC)

    Terminal: 3Pin terminal ( 2.8*0.5mm for switch)

    Operation travel: about 2.5mm

    Panel thickness: 1 – 10mm

    Crust and cap material: stainless steel

    Operate force:about 6N

    IP rating: IP65

    Mechanical life: 5,000,000 times

    Electrical life: 50,000 times

    Operation Temperature: – 25 to 75 Degree

    inquirydetail
  • 22mm cheaper momentary latching metal push button switch 18A large current chromium plated brass waterproof push button switch

    22mm cheaper momentary latching metal push button switch 18A large current chromium plated brass waterproof push button switch

    1 2





    22mm momentary latching metal push button switch 18A large current chromium plated brass waterproof push button switch

    Description:

    Install diameter:22mm

    Switch rating: 18A/250V

    Type: Momentary or latching, 1NO1NC or 2NO

    Terminal: 6 Pin terminal

    Crust material: Chromium plated brass

    LED color: Red / Green /Blue / Yellow / White

    LED Voltage: 6V,12V,24V,36V,110V,220V



    inquirydetail
