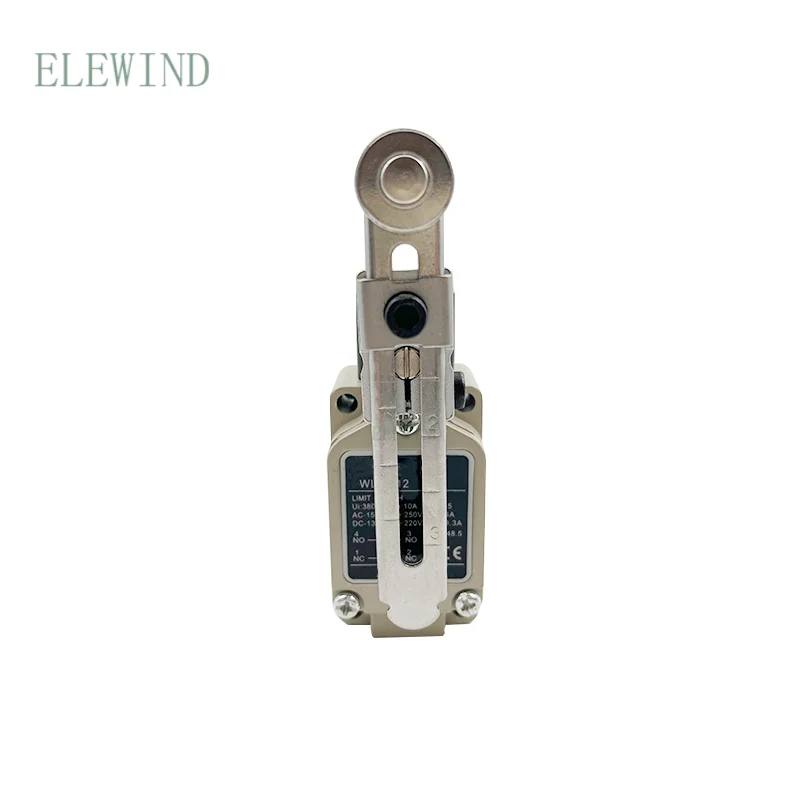

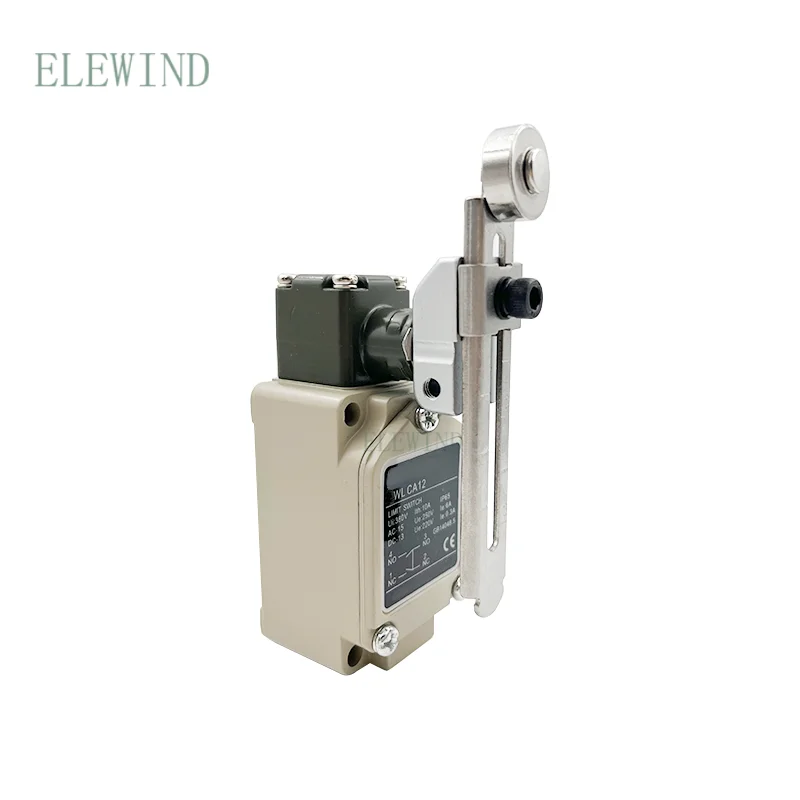

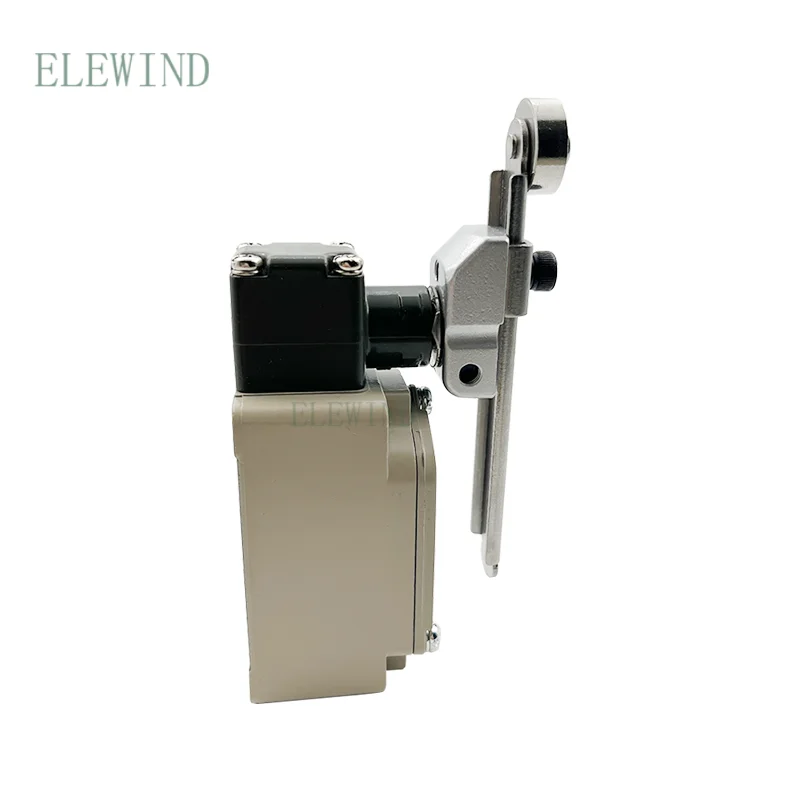

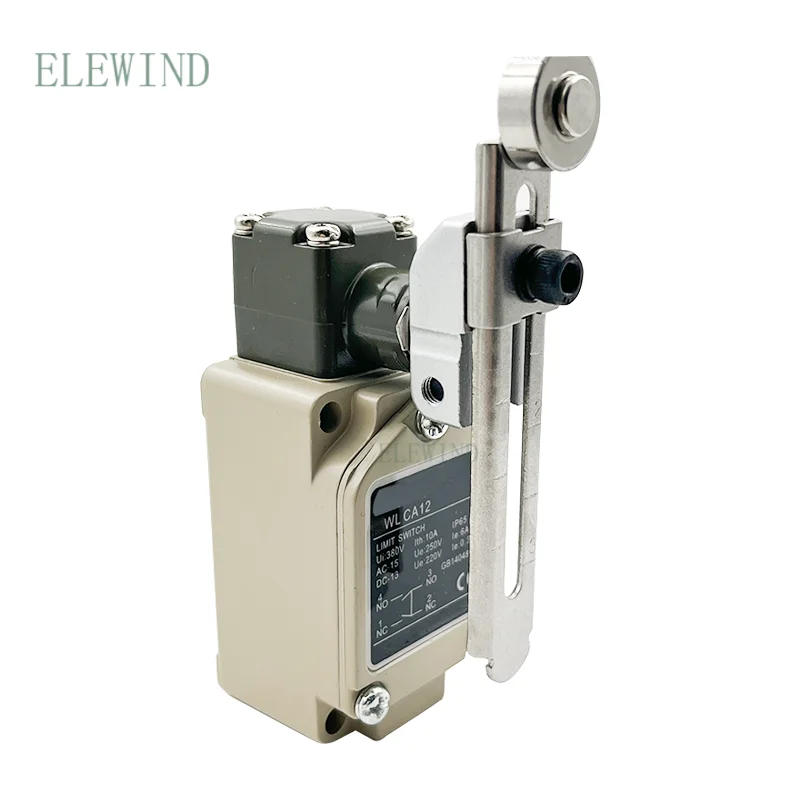

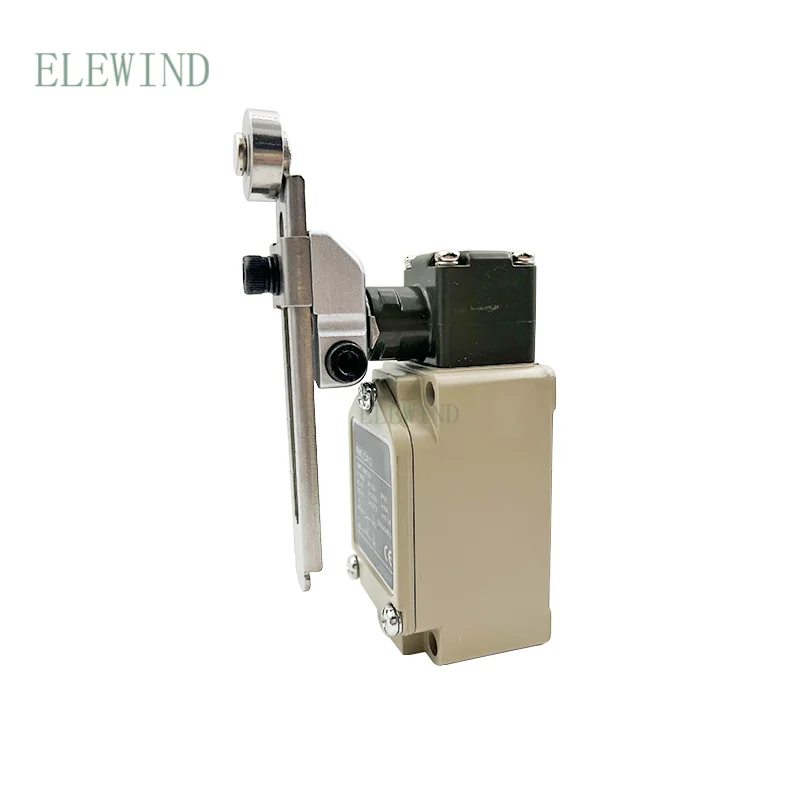

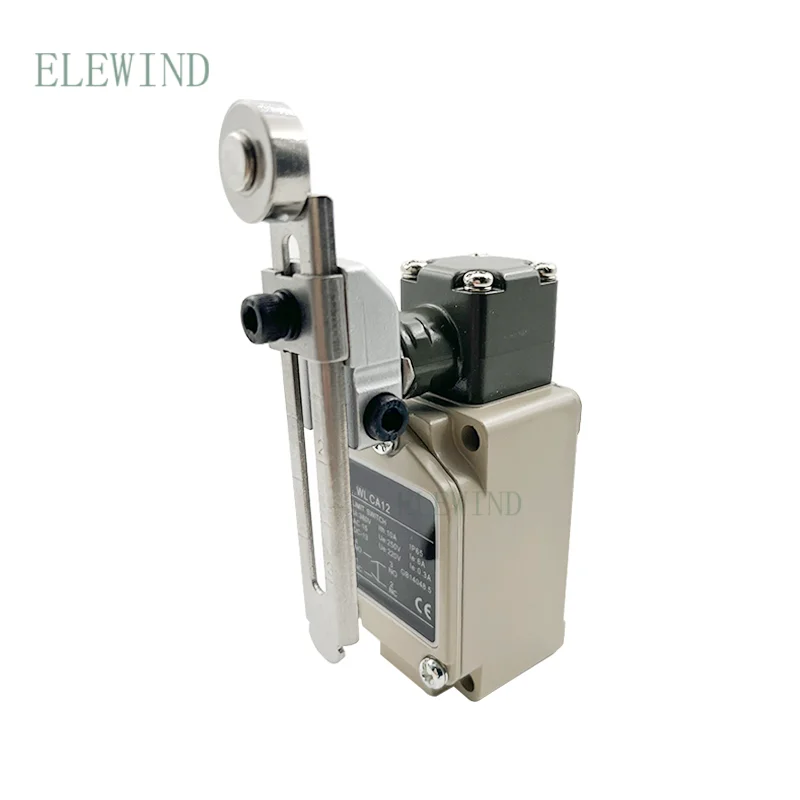

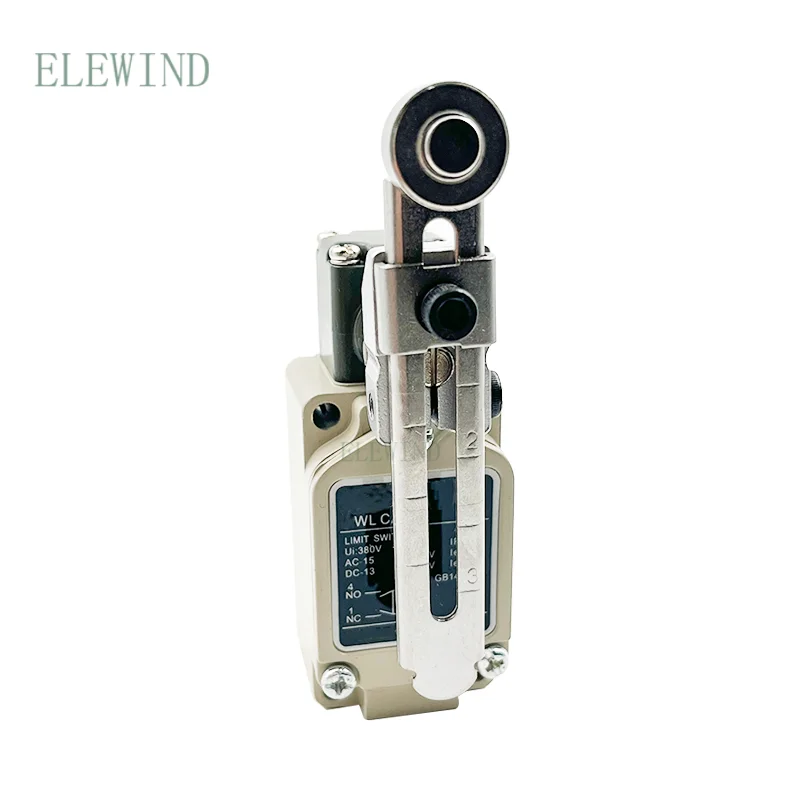

IP 65 Travel Limit Switch long mechanical life structure preventing oil, widely used micro switch

Short Description:

It’s WL Double-circuit Limit Switch of characteristic . Double-circuit limit switch, widely used Firm aluminum alloy enclosure，High mechanical strength Structure preventing oil,water and pressure Indecating plate with setting position installed in it easy to maintain。 kinds of actuators is taken convenient to use Built-in contact stand has double-reed,so it has long mechanical life.

Characteristic:

1.Double-circuit limit switch, widely used

2.Firm aluminum alloy enclosure

3.A High mechanical strength

4.Structure preventing oil,water and pressure

5.Indecating plate with setting position installed in it ,easy to maintain

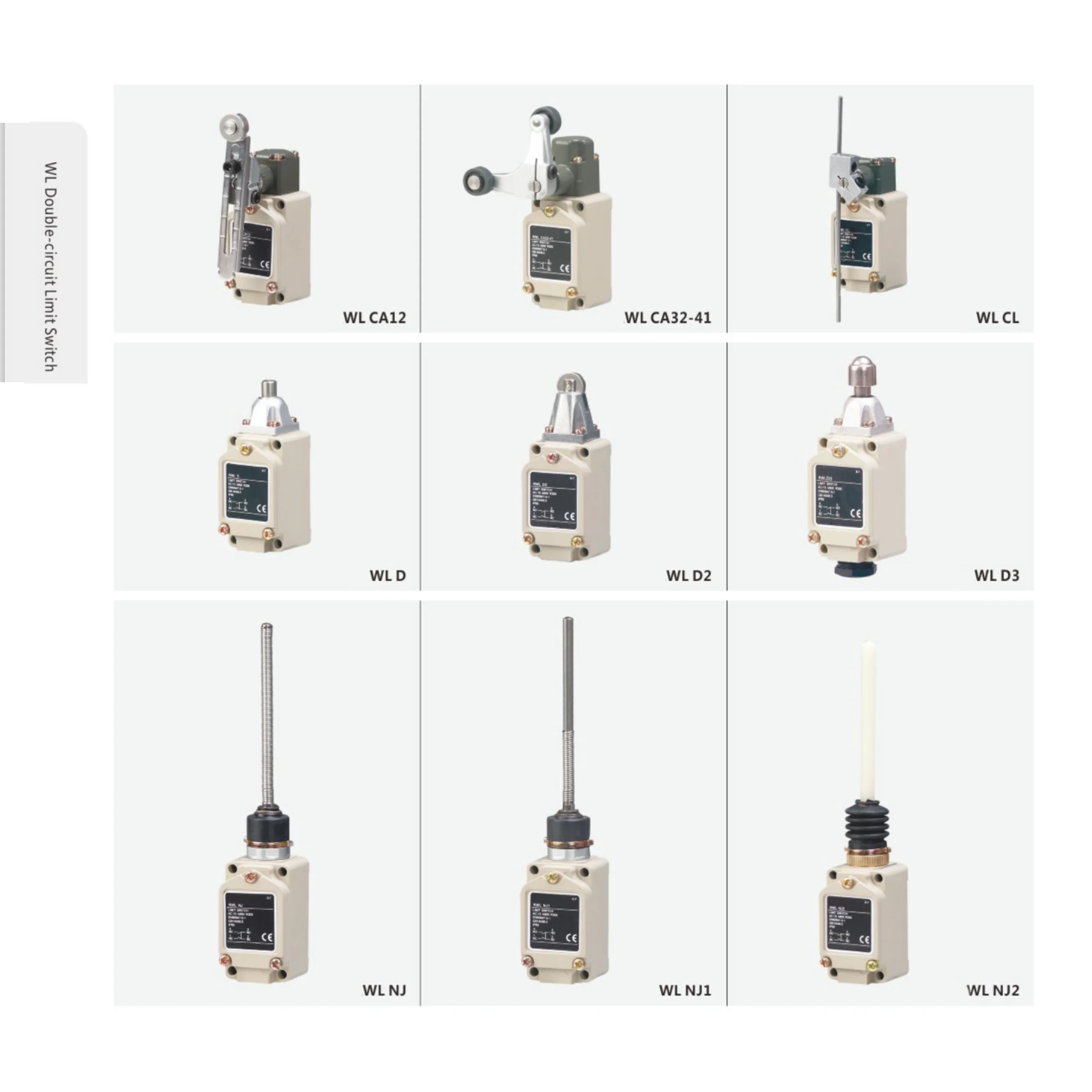

6.A kinds of actuators is taken convenient to use

7.Built-in contact stand has double-reed,so it has long mechanical life

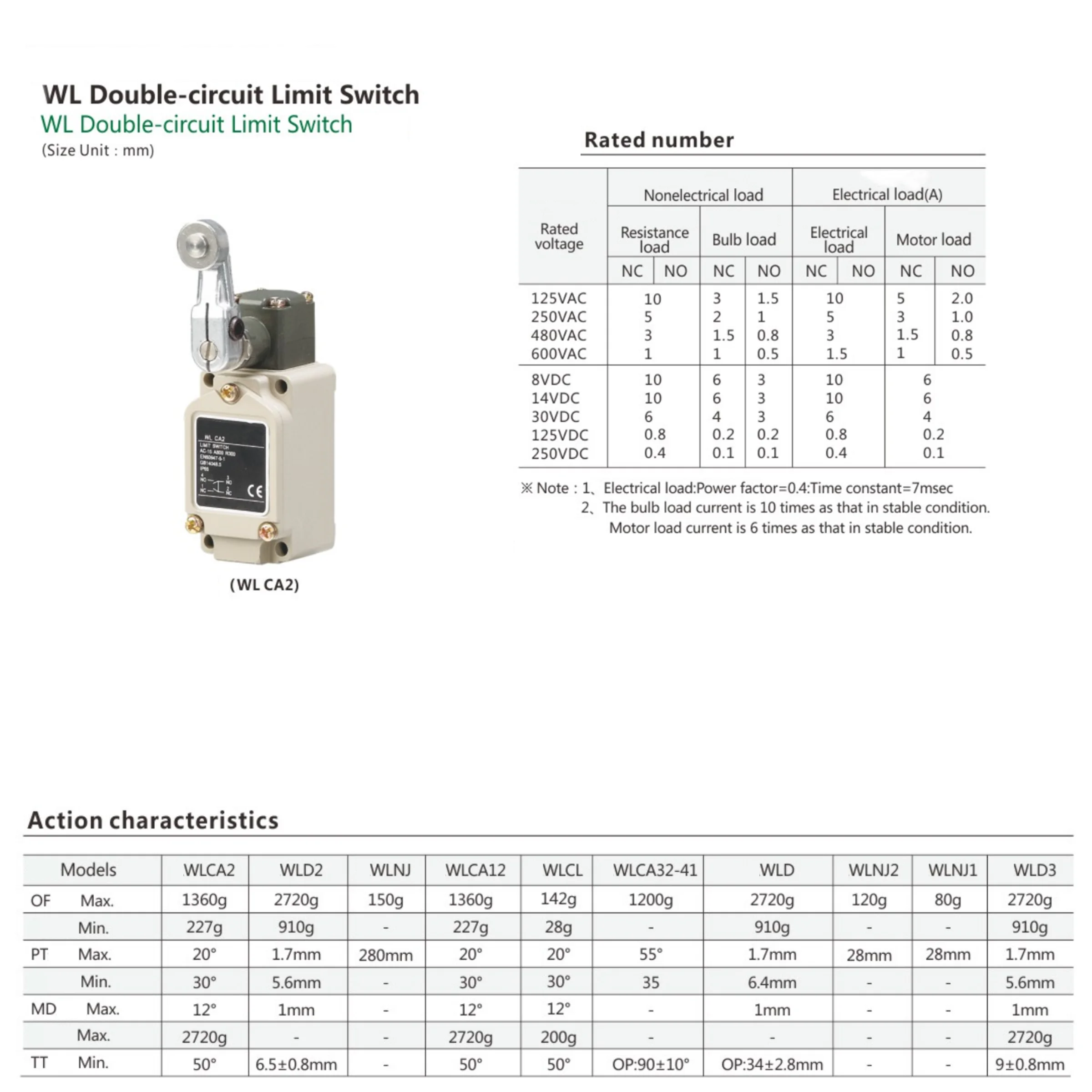

Characteristics:

1.Operation speed:1mm to 2m/s(WLCA2 Type)

2.Action frequency:Mechanically :120times/minute ;Electrically:30time/minute

3.Contact resistance:Under 15mΩ(initial)

4.Insulation resistance：Under 100MQ(under 500VDC)

5.Bearing voltage：Non-contact end is 1,000vac,50/60Hz for one minute current/Non-contact end is 1,000vac,50/60Hz for one minute current

6.Vibration：Action:10 to 50Hz1.5mm pairs swing

7.Stock resistance：Machine:1,000m/ses(about 100GS)；Action:300m/s Ses(about 30g’s)

8.Ambient temperature：-10~+80℃

9.Humidity：Max95%RH

10.Life：Mechanically : 15000,000 times above (at rated ot)；Electrically:500,000 times above

11：Weight：About 275g（WLCA2）

12：Protection structure：IEC specification IP67

Limit switch:

:

:
