indicator light
-
ELEWIND 12MM plastic LED indicator light Signal lamp pilot lamp(PB121Y-D/R/12V/A)
ELEWIND indicator light
Part number:PB121Y-D/R/12V/A
Install diameter: 12mm Shape: Flat head Function: Indicator Terminal: Pin terminal LED: Red ,GREEN,red,Yellow,White,Orange Rating Voltage: from 1.8V to 230V Rating amper: 5mA to 20mA Temperature: -40 to 75 Degree -
ELEWIND 16mm plastic classical mounting type led signal lamp indicator light pilot lamp (AD16-16C/R/12V)
ELEWIND ELEWIND led signal light
Part number : AD16-16C/R/12V
Led color and voltage: from 2.8V to 380V
Install diameter: 16mm Shape: FLAT HEAD Cap color RED ,green,yellow,orange, white,bule Function: Signal lamp Terminal: 2 Screw terminal, Switch Rating: 10A/250V Operation Temperature: -40 to 75 Degree If you need with light pls contact us.
-
16mm flat head metal Black brass or Stainless steel or nickel plated brass IP67 LED Indicator Light pilot signal lamp (PM16F-D)
ELEWIND 16mm pilot lamp 12-24V indicator lights
Part number:PM16F-D/J/R/12-24V/S
Install diameter:16mm
Shape: Flat head
Function: Pilot Lamp
Crust material: Stainless steel or Black brass or nickel plated brass
Terminal: Pin Terminal
Led Color: Red,Blue,White,Yellow,Green,Orange
Voltage: from 2.8V to 230V
Temperature: – 40 to 75 Degree
-
ELEWIND flat head 8mm 10MM 12MM metal IP67 sealed RGB three color led indicator light signal pilot lamp with 15cm cable
The standard LED type is Common pin in anode, if you want use common pin in cathode pls contact us first.
Part number:PM8T-D/Y/42RGB/12-24V/Stainless steel with 4cm cable
Install diameter:8mm
Shape: Flat head
Function: LED indicator
Crust material: Stainless steel/Black surface/Nickel plated brass for you choose
Terminal: 4 cable with 4cm length
Led Color:Red,green, blue
IP rating: IP67 waterproof can install outdoor or under the water.
Voltage: from 6V to 48V
Temperature: – 40 to 75 Degree
-
ELEWIND domed head 8mm 10MM 12MM metal IP67 sealed RGB three color led indicator light signal pilot lamp with 15cm cable
The standard LED type is Common pin in anode, if you want use common pin in cathode pls contact us first.
Part number:PM8G-D/Y/42RGB/12-24V/Stainless steel with 4cm cable
Install diameter:8mm
Shape:Domed head
Function: LED indicator
Crust material: Stainless steel/Black surface/Nickel plated brass for you choose
Terminal: 4 cable with 4cm length
Led Color:Red,green, blue
IP rating: IP67 waterproof can install outdoor or under the water.
Voltage: from 6V to 48V
Temperature: – 40 to 75 Degree
-

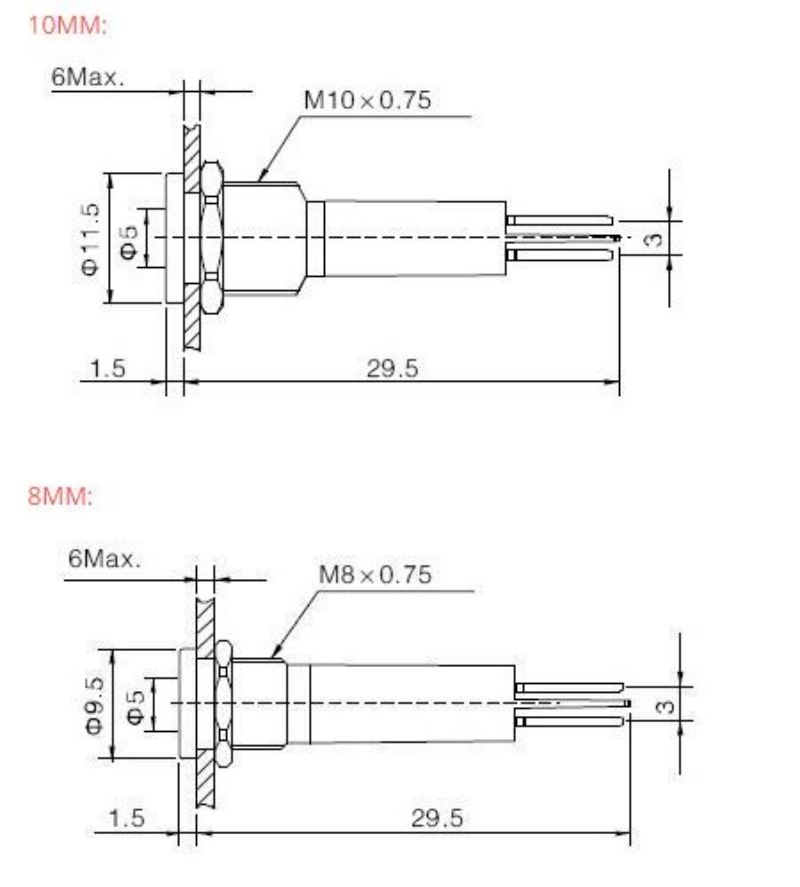

8mm 10mm flat head metal Black brass or Stainless steel or nickel plated brass IP67 LED Indicator Light(PM10F-D/R/12-24V/S)
New 10mm LED Indicator Light Lamp Bulb Pilot Dash Directional Car Truck Boat 12V (PM10F-D/R/12-24V/S)
Part number:PM10F-D/R/12-24V/S
Install diameter: 10mm Shape: Flat head Function: Indicator Crust material: stainless steel,nickel plated brass, black brass body, Terminal: Pin terminal (2.8*0.5mm) LED: Red ,blue,green,Yellow,White,Orange Rating Voltage: from 1.8V to 230V Rating amper: 5mA to 20mA IP rating: IP67 (Water proof) Temperature: -40 to 75 Degree -

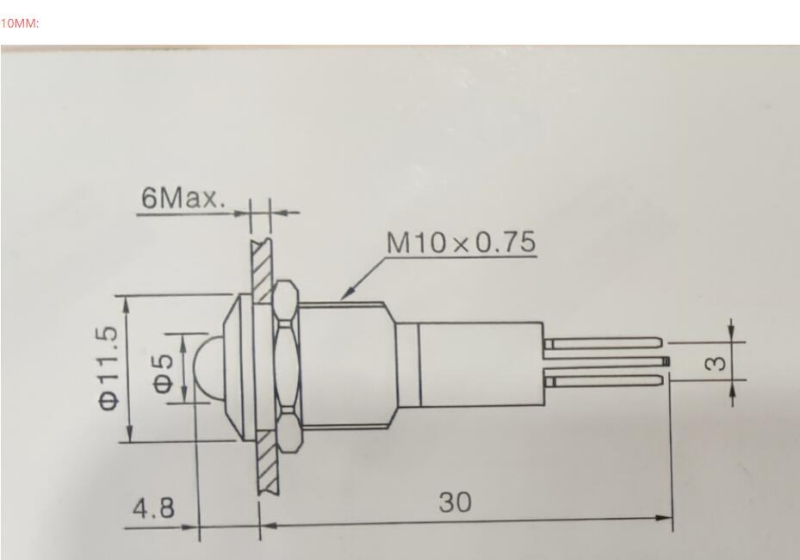

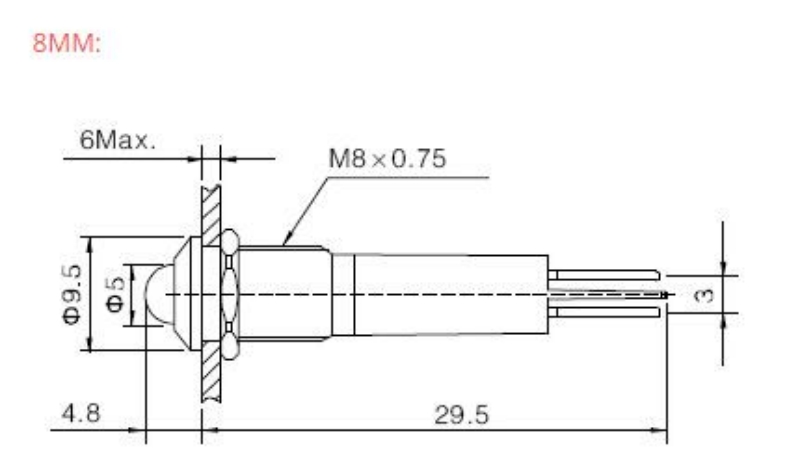

8mm 10mm domed head metal Black brass or Stainless steel or nickel plated brass IP67 LED Indicator Light(PM10B-D/R/12-24V/S)
ELEWIND pilot led lamps
Part number:PM08B-D/G/12-24V/A/IP67
Install diameter: 8mm Shape: Flat head Function: Indicator Crust material: Black brass Terminal: Pin terminal (2.8*0.5mm)
LED: green green,red,Yellow,White,Orange color Rating Voltage: from 1.8V to 230V Rating amper: 5mA to 20mA IP rating: IP67 (Water proof) Temperature: -40 to 75 Degree -
8mm 10MM 12MM Flash type metal Indicator Light/Signal lamp with cable 15CM (6-24VDC at the same time)
Part number:PM**-D/X/R/12-24V/A
Install diameter: 8mm,10mm,12mm, other diameter pls contact us Shape: Flat head or Domed head Function: Indicator flash (160 times/minute) Crust material: Black brass, nickel plated brass, stainless steel Terminal: wire 15cm LED: Red Green Yellow Orange Blue White Rating Voltage: 6-24V DC (Other voltage pls contact us: from 1.8V to 230V) Rating amper: 10mA to 20mA IP rating: IP67 (Water proof) Temperature: -40 to 75 Degree -
ELEWIND 8MM square plastic signal led lamps equipment indicator light Pilot Lamp(PB081F-D/G/12V , PB081Y-D/R/12V)
Noted: For the indicator, it just two pins.
ELEWIND signal light led
Part number:PB081F-D/G/12V
Install diameter: 8mm Shape: square Function:
Indicator Terminal: Pin terminal LED:GREEN,red,Yellow,White,Orange ,blue Rating Voltage: from 1.8V to 230V Rating amper: 5mA to 20mA Temperature: -40 to 75 Degree -

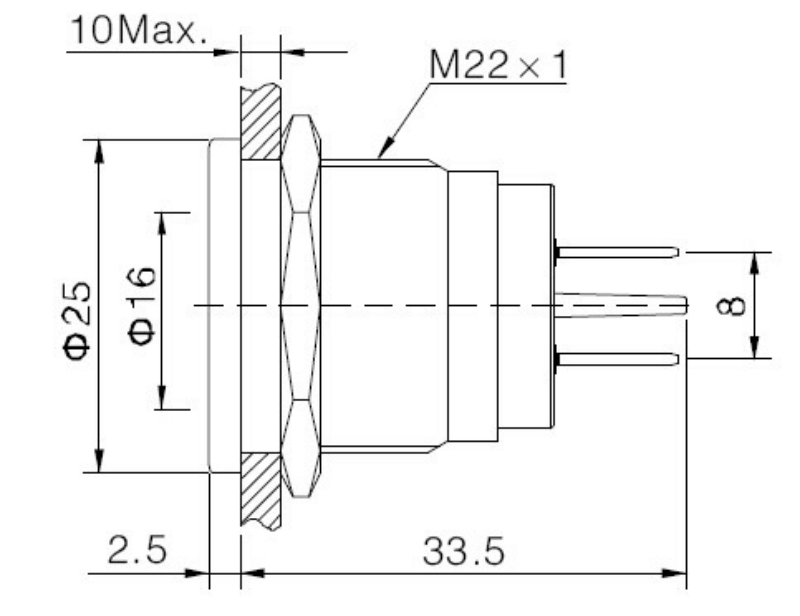

22mm flat head metal Black brass or Stainless steel or nickel plated brass IP67 LED Indicator Light pilot signal lamp (PM22F-D)
ELEWIND 22mm pilot lamp
Part number:PM22F-D/J/G/12V/S
Install diameter:22mm
Shape: Flat head
Function: Pilot Lamp
Crust material: Stainless steel or Black brass or nickel plated brass
Terminal: Pin Terminal
Led Color: Green
(Other color you can choose:Red,Blue,Yellow,White,Orange)
Voltage: 12V
(Other voltage 2.8V to 230V)
Temperature: – 40 to 75 Degree
-
ELEWIND domed head 8mm 10MM 12MM metal IP67 sealed RGB three color led indicator light signal pilot lamp with 15cm cable
The standard LED type is Common pin in anode, if you want use common pin in cathode pls contact us first.
Part number:PM8G-D/Y/42RGB/12-24V/Stainless steel with 4cm cable
Install diameter:8mm
Shape:Domed head
Function: LED indicator
Crust material: Stainless steel/Black surface/Nickel plated brass for you choose
Terminal: 4 cable with 4cm length
Led Color:Red,green, blue
IP rating: IP67 waterproof can install outdoor or under the water.
Voltage: from 6V to 48V
Temperature: – 40 to 75 Degree
-

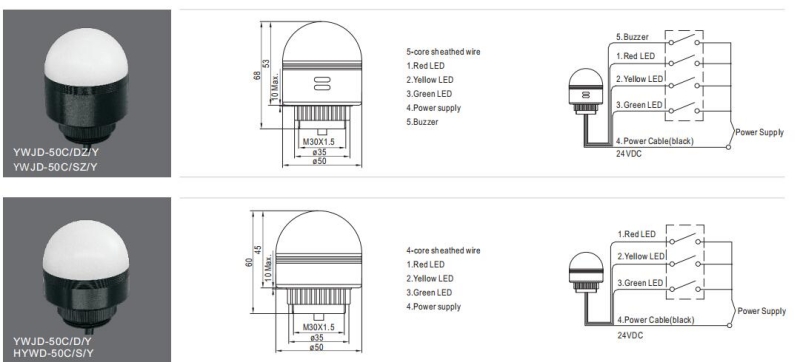

50mm signal tower RYG led color continous light and continuous buzzer with 70cm cable (YWJD-50C)
Product feature:
1. LED Voltage: 24VDC2.LED Color: Red, Yellow,Green.3.Terminal: Wire Leads 700mm or Aviation plug.4. D: Continual light / S: Flash light / DZ:Continual light and buzzer /SZ:Flash light and Discontinuous BuzzerThe appearance is exquisite and compact, and the workmanship is exquisite.Uniform luminescence, high efficiency and energy saving, and long service life.The lampshade is made of high-quality resin, sturdy and durable.GX16 aviation plug and tail wiring are optional,and it can also be installed on the side with a bracket.When the warning lamp is in the power-off state, the lamp body is colorlessand does not refract the surrounding light sources to avoid false indications.Signal light can be customized IP67
