ELEWIND 22mm UV-proof plastic Ring illuminated Momentary push button switch(PM221F-11E/J/△/▲/PC)

Short Description:

Important parameter:
1. Switch rating: Ui:250V,Ith:5A
2. Mechanical life: ≥1,000,000 cycles
3. Electrical life: ≥50,000 cycles
4. Contact resistance: ≤50mΩ
5. Insulation resistance: ≥100MΩ(500VDC)
6. Dielectric strength:1,500V,RMS 50Hz,1min
7. Operation temperature: – 25 ℃~55℃ (+no freezing)
8. Operating pressure: about 4N(1NO1NC)
9. Operation travel: about 2.5mm
10. Torque:about 0.8Nm Max.applied to nut
11. Front panel protection degree:IP65,IK02
12. Terminal type: Pin terminal (2.8×0.5mm)


Product Detail

Product Tags

Product Parameters

PM221F-11E/J/△/▲/PC
Φ22mm Diameter
Switch Rating: Ith: 5A, Ui: 250V
Contact Configuration: 1NO1NC
Operation Type: Momentary
Terminal Type(◆): Pin Terminal(J)
The shell Material: plastic
Ring light Color(△): red green blue orange white yellow
Voltage: 1.8-220V
IP Degree: IP65 IK02

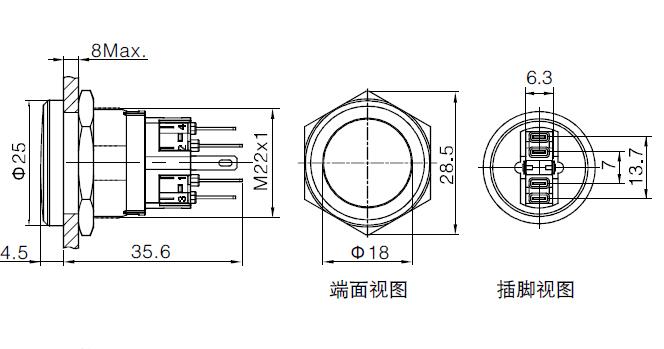

wqf

Product Introduction

Metal push button, individually developed by our company, has dozens of proprietary intellectual property rights. There are many types, such as indicator, push button, latching push button, illuminated push button, selector, illuminated selector, key lock switch, emergency stop switch and buzzer.

As an expert in metal button switch research and development, we are well aware of the importance of quality and social responsibility.We have established an international quality management system with full participation and continuous improvement to ensure that products can be traced back to all manufacturing processes. The whole process tracking and testing achieve 100% quality and ensure product reliability and stability. The ease of customers’ use set our mind at rest!

Our products cover: 6 ~ 40 mm metal indicator light, 12-40 mm metal push button switch, the most unique 10-20 A metal high current switch, ship type switch, big mushroom head urgent stop switch, key switch, knob with a light switch,with waterproof ip to IP67, up to IK10 protection ,up to 1 million times life expectancy , which can be customized according to customer's requirements.
