ELEWIND 22mm metal Stainless steel Ring illuminated power symbol push button switch(PM221F-11■ET/J/△/▲/◎)

Short Description:

Important parameter:
1. Switch rating: Ui:250V,Ith:5A
2. Mechanical life: ≥1,000,000 cycles
3. Electrical life: ≥50,000 cycles
4. Contact resistance: ≤50mΩ
5. Insulation resistance: ≥100MΩ(500VDC)
6. Dielectric strength:1,500V,RMS 50Hz,1min
7. Operation temperature: – 25 ℃~55℃ (+no freezing)
8. Operating pressure: about 4N(1NO1NC),about 7.5N(1NO1NC)
9. Operation travel: about 2.5mm
10. Torque:about 0.8Nm Max.applied to nut
11. Front panel protection degree:IP65,IK10
12. Terminal type: Pin terminal (2.8×0.5mm)


Product Detail

Product Tags

Product Parameters

PM221F-11■ET/J/△/▲/◎
Φ22mm Diameter
Switch Rating: Ith:5A, Ui:250V
Contact Configuration: 1NO1NC
Operation Type: Momentary OR Latching
Terminal Type(◆): Pin Terminal(J)
The shell Material: Stainless steel
Ring light Color(△): red green blue orange white yellow
Voltage: 1.8-220V
IP Degree: IP65 IK10

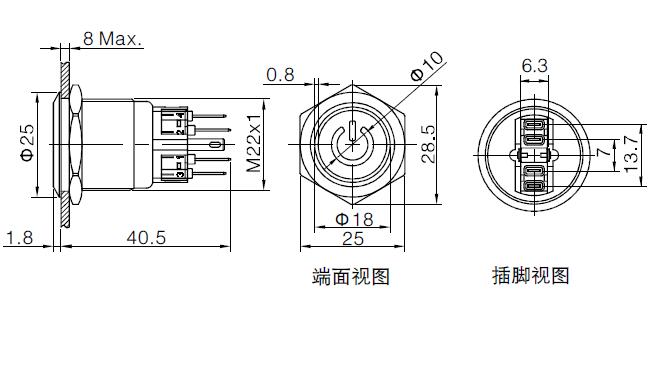

rtjryj

Product Introduction

With the effort of all the stuff, metal push buttons develop to more series and more types, and they are gradually accepted by well-known enterprises home and abroad (especially some large comprehensive enterprises in Europe and America). Push buttons are widely used in large mechanical equipment, armaria, automo bile operation, bathroom corollary equipment, office equipment, hotel decoration, outdoor digital product and computer equipment.

Our company is a professional metal push button switch manufacturer with years’s experience. We only make High quality goods

Innovation is the eternal theme of the times and the lifeblood of the company's sustainable development. Adhering to the concept of "innovation, creation", we are the industry leader. In our research and development center where industry elites are gathered, it constantly develop products which are more reliable, in line with market demand and the times, providing customers with more reliable and perfect supporting solutions, after months of research and development,repeatedly demonstration, reliable testing, the large current series of metal push button switch are successful listed, and already won several national patents, which filled the market blank are praised by the majority of customers and gained affirmation.
