ELEWIND 19mm emergency mushroom latching on/off stop red Push button switch Equipment Lift Elevator (PM192F-□TS)

Short Description:

1. Switch rating: Ui:250V,Ith:5A
2. Mechanical life: ≥1,000,000 cycles
3. Electrical life: ≥50,000 cycles
4. Contact resistance: ≤50mΩ
5. Insulation resistance: ≥100MΩ(500VDC)
6. Dielectric strength:1,500V,RMS 50Hz,1min
7. Operation temperature: – 25 ℃~55℃ (+no freezing)
8. Operating pressure: about 4N(1NO1NC),about 7.5N(1NO1NC)
9. Operation travel: about 2.5mm
10. Torque:about 0.8Nm Max.applied to nut
11. Front panel protection degree:IP65,IK10
12. Terminal type: Pin terminal (2.8×0.5mm)


Product Detail

Product Tags

Product Parameters

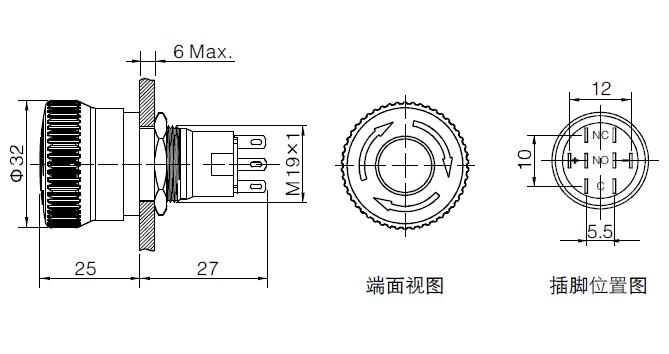

PM192F-□TS
Φ19mm Diameter
Switch Rating: Ith:5A, Ui: 250V
Contact Configuration: 1NO1NC or 2NO2NC
Operation Type: Latching
Terminal Type(◆): Pin Terminal(J)
The shell Material: Aluminum alloy
IP Degree: IP65 IK02

20220815145828

Product Introduction

Great virtue can carry all things and people oriented. If quality is the soul of an enterprise , the team is the life of an enterprise .With the mind of all rivers , ELEWIND attracting wide range of wisdom and talents broad-minded,gathered a number of "dedicated, professional and efficient" high-quality teams.

With the effort of all the stuff, metal push buttons develop to more series and more types, and they are gradually accepted by well-known enterprises home and abroad (especially some large comprehensive enterprises in Europe and America). Push buttons are widely used in large mechanical equipment, armaria, automo bile operation, bathroom corollary equipment, office equipment, hotel decoration, outdoor digital product and computer equipment.

Excellence production department, the meticulousness of quality department,innovation and frontier of R&D department , the enthusiasm and professionalism in the department, patience and carefulness in the after sales department.

Heaven Rewards diligence ,we fight through all the way in the tireless and steadfast endeavor with integrity as the foundation, rising abruptly based on our accumulated strength. Nowadays,as an emerging enterprise integrated with research and development, design, manufacturing, sales and service, It is in scale and stands out in the metal button industry.
