ELEWIND 16mm metal push button switch momentary 1NO with RGB three color ring light(PM161F-10E/J/RGB/▲/◎)

Short Description:

Metal push button, individually developed by our company, has dozens of proprietary intellectual property rights. There are many types, such as indicator, push button, latching push button, illuminated push button, selector, illuminated selector, key lock switch, emergency stop switch and buzzer.

With the effort of all the stuff, metal push buttons develop to more series and more types, and they are gradually accepted by well-known enterprises home and abroad (especially some large comprehensive enterprises in Europe and America). Push buttons are widely used in large mechanical equipment, armaria, automo bile operation, bathroom corollary equipment, office equipment, hotel decoration, outdoor digital product and computer equipment.

Send email to us

Product Detail

Product Tags

Product Parameters

PM161F-10E/J/RGB/▲/◎

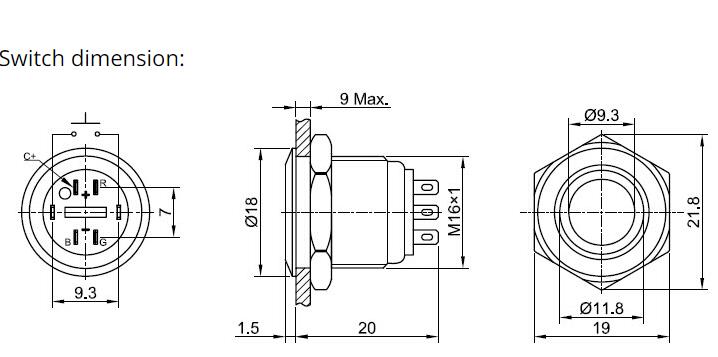

Φ16mm Diameter
Switch Rating: 2A/36VDC
Contact Configuration: 1NO
Operation Type: Momentary
Terminal Type(◆): Pin Terminal(J)
The shell Material: Stainless steel or black plated Aluminum alloy
Ring light Color(△): RGB(red,green,blue three light)
Voltage: 1.8-36V
IP Degree: IP65 IK08

IP degree

Comparing with plastic products, metal products not only make improvement in IK degree, but also make progress in IP degree. Most products have reached Ip65, and some have achieved IP67(Soaking for short time) and even more high level. And many clients call the products "water-proof push button".

The Notice for Pin Welding

Any incorrect welding operations all possibly cause damage to plastic deformation, bad-contact switch ect. When soldering the pin-terminals of switches and signal lamps, we should pay attention to the following points. Because it's easy to have the switch damaged if improper-operation.

1. Using suitable electric soldering iron and quickening welding speed. We suggest you use 30W electric soldering iron and finish within 2 seconds when it reaches 320℃.
2. Using right amount of scaling powder and putting the pinterminals downwards when soldering.
3. It's better to use connectors than direct welding

Customized Symbo

It has been the trend to laser engrave character and sign or customize lighting character and sign on the surface of metal push button. Customized metal surface makes the product personalized, and it has been a new trend.

Note

Pls provide us the detailed part-number when you order.
Colorized crust of aluminum material is available for all above products.
If you need the products made to order, the MOQ is 500 pieces.
The IP degree is used for the surface of the panel.
Extra customize fee is needed for the order less than 500 pieces.
