ELEWIND 16mm high head Ring illuminated push button switch (PM162H-□■E/△/▲/◎)

Short Description:

1. Switch rating: Ui:250V,Ith:5A
2. Mechanical life: ≥1,000,000 cycles
3. Electrical life: ≥50,000 cycles
4. Contact resistance: ≤50mΩ
5. Insulation resistance: ≥100MΩ(500VDC)
6. Dielectric strength:1,500V,RMS 50Hz,1min
7. Operation temperature: – 25 ℃~55℃ (+no freezing)
8. Operating pressure: about 4N(1NO1NC),about 7.5N(1NO1NC)
9. Operation travel: about 2.5mm
10. Torque:about 0.8Nm Max.applied to nut
11. Front panel protection degree:IP40,IK10
12. Terminal type: Pin terminal (2.8×0.5mm)


Product Detail

Product Tags

Product Parameters

PM162H-□■E/△/▲/◎
Φ16mm Diameter
Switch Rating: Ith:3A, Ui:250V
Contact Configuration: 1NO1NC or 2NO2NC
Operation Type: Momentary OR Latching
Terminal Type(◆): Pin Terminal(J)
The shell Material: Stainless steel or black plated Aluminum alloy
Ring light Color(△): red green blue orange white yellow
Voltage: 1.8-220V
IP Degree: IP40 IK09

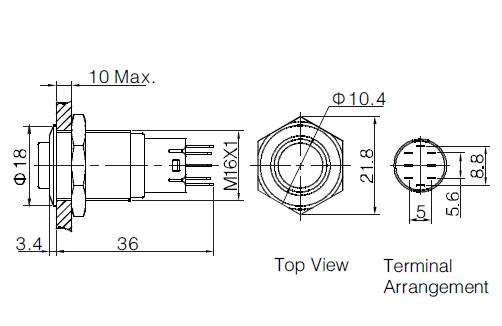

wqe

Product Introduction

Metal push button, individually developed by our company, has dozens of proprietary intellectual property rights. There are many types, such as indicator, push button, latching push button, illuminated push button, selector, illuminated selector, key lock switch, emergency stop switch and buzzer.

With the effort of all the stuff, metal push buttons develop to more series and more types, and they are gradually accepted by well-known enterprises home and abroad (especially some large comprehensive enterprises in Europe and America). Push buttons are widely used in large mechanical equipment, armaria, automo bile operation, bathroom corollary equipment, office equipment, hotel decoration, outdoor digital product and computer equipment.

Problems Encountered By Buyers

Will the logo on the customized symbol surface fade after a long time?

You can rest assured of this, our black shell plating switch head is laser up, Our products do not fade because we use laser cutting technology the pattern is hollow!

My custom pattern is a little difficult laser, can you produce it?

Yes, you can send us the file of custom symbols. It can be produced under normal circumstances.

Can you make 16mm ring and power symbol head plated black?

I'm sorry that we can only make ring LED, flat heads and some other custom symbols for 16mm mounting holes.
