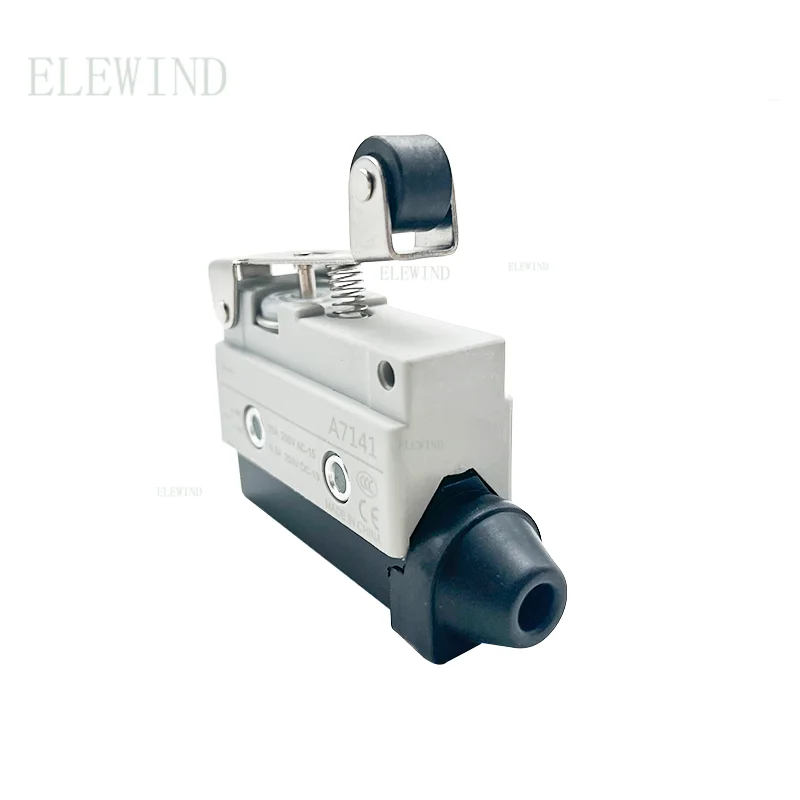

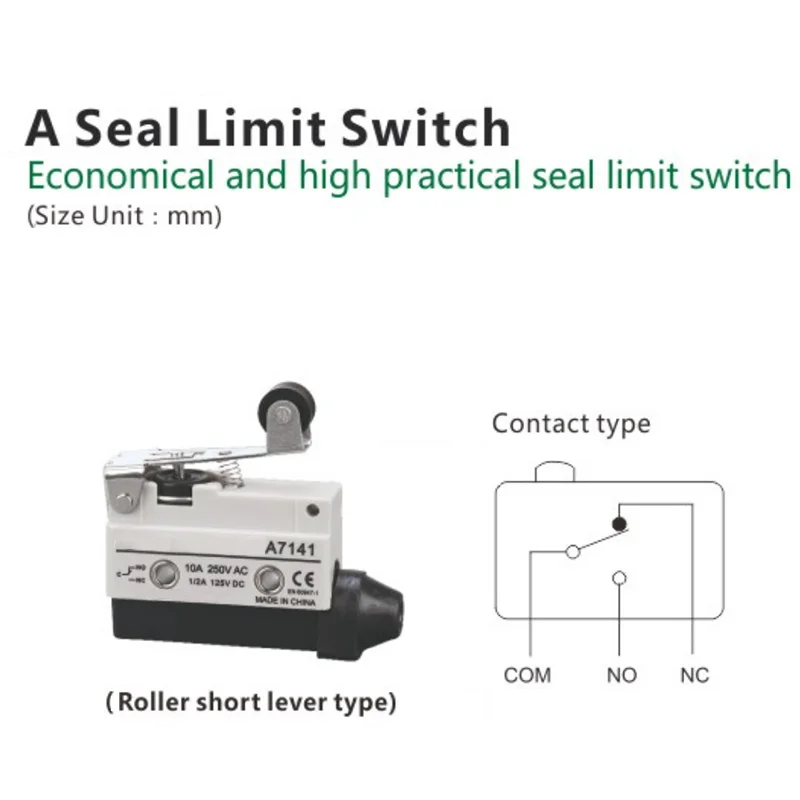

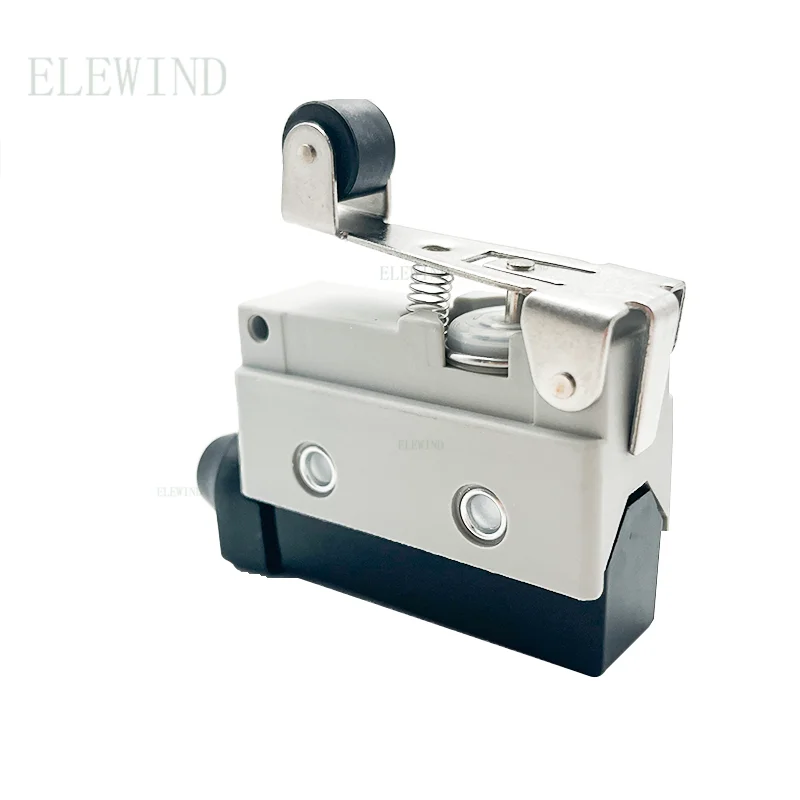

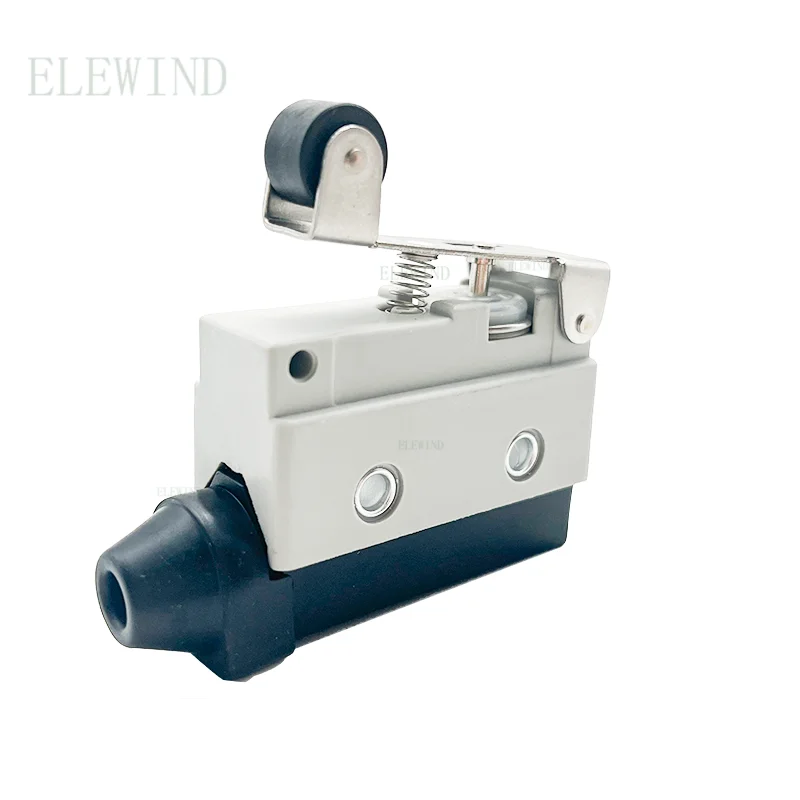

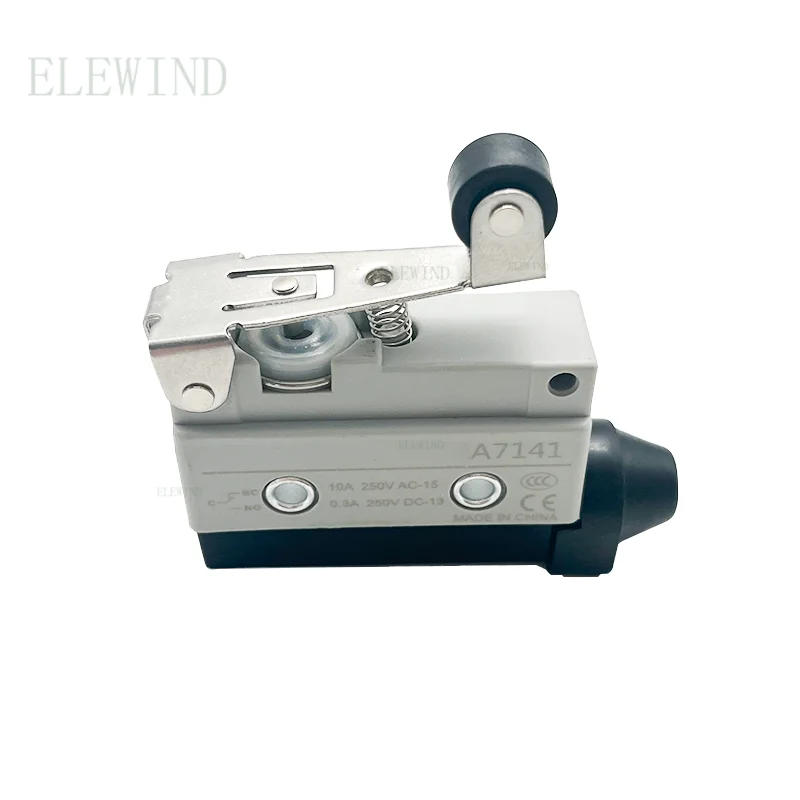

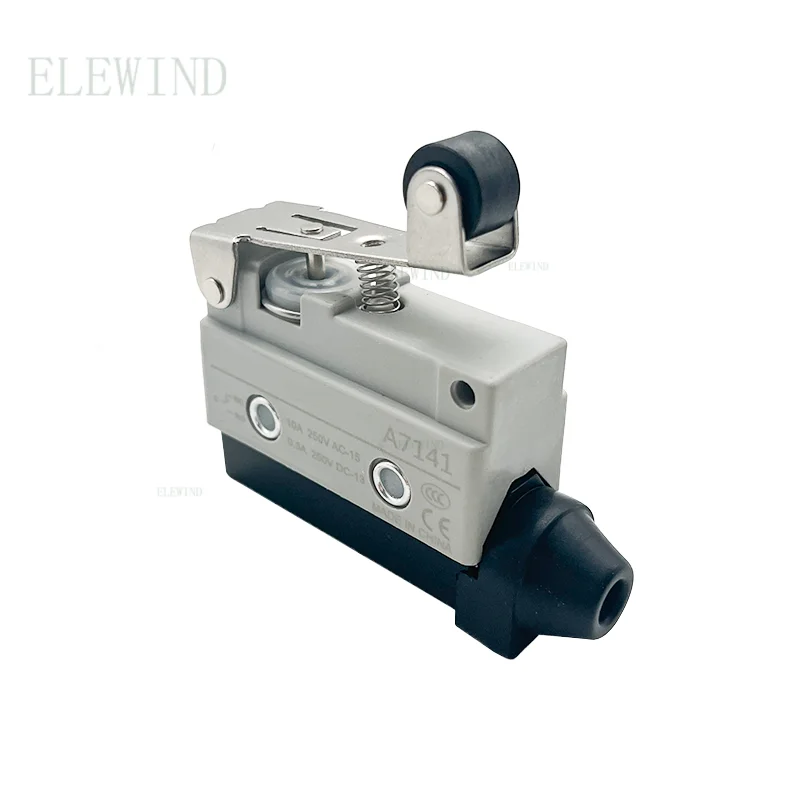

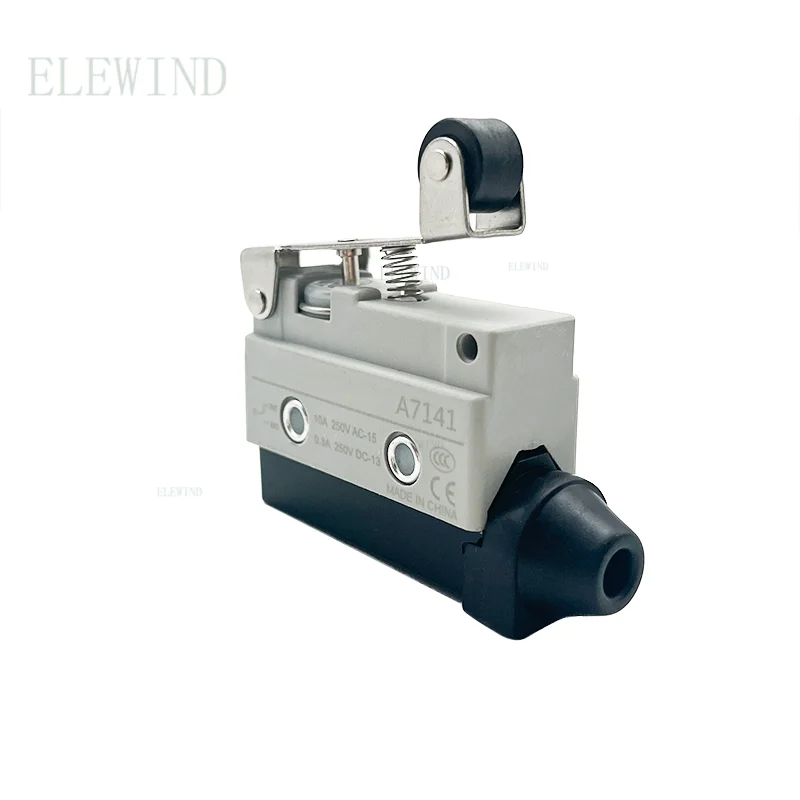

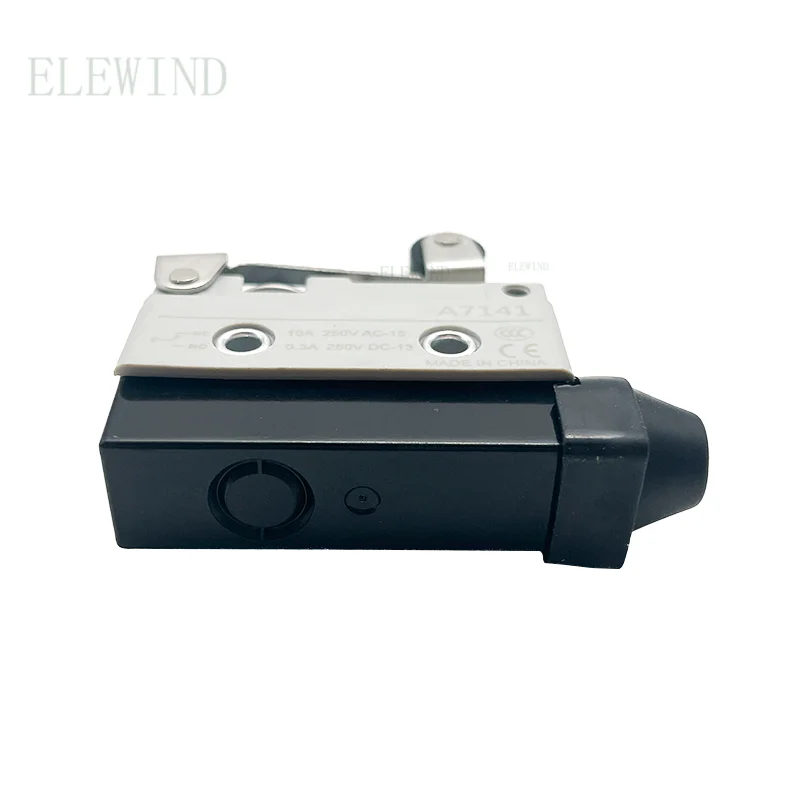

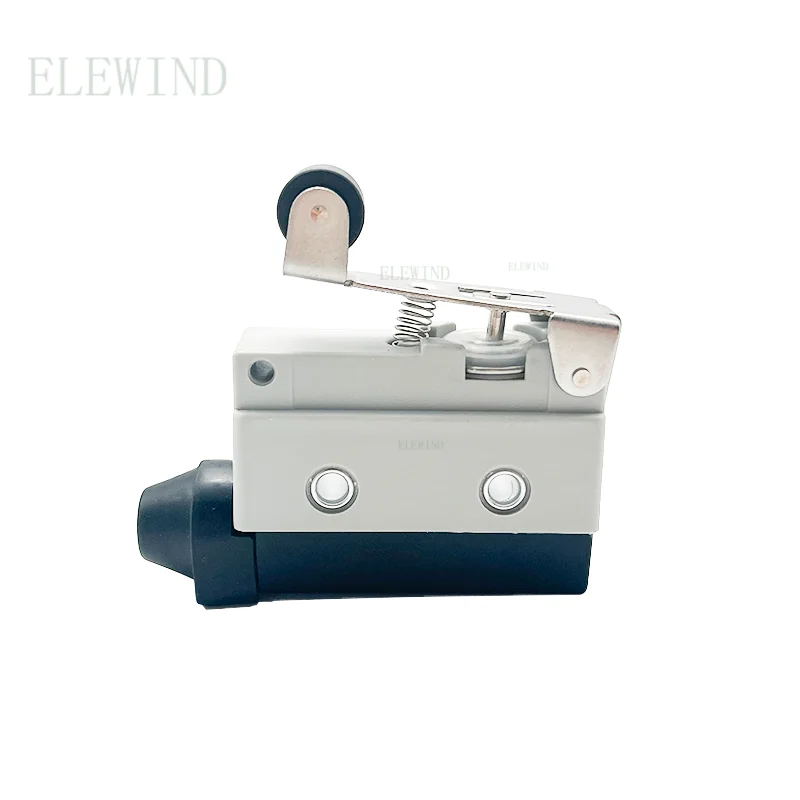

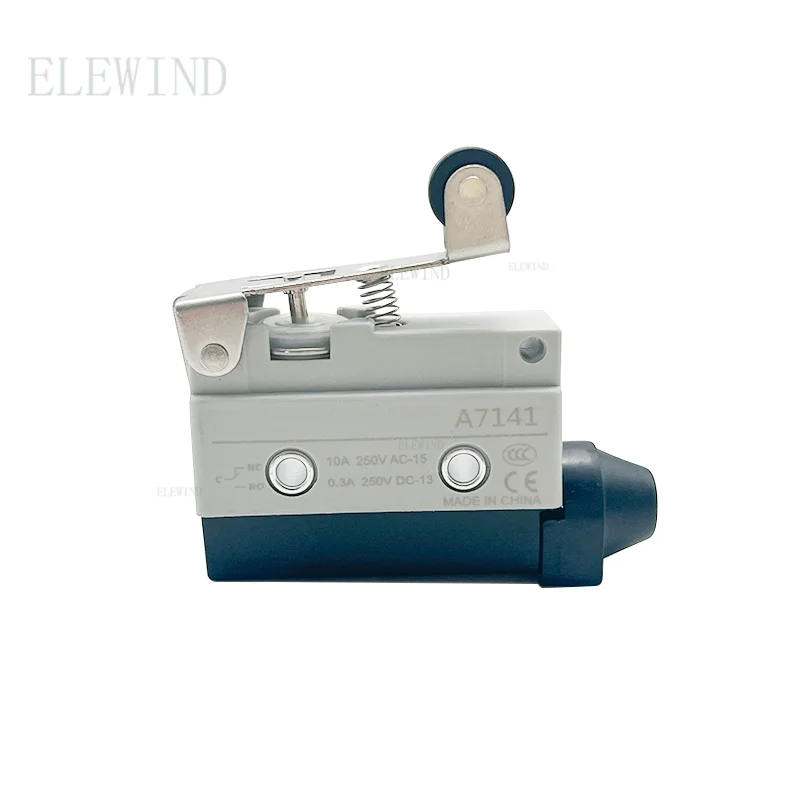

A seal Limit Switch of high quality 10A 125V,250VAC Waterproof Micro Switch Travel Limit Switch Roller short lever type

Short Description:

A seal Limit Switch as a Economical and high practical seal limit switch.It‘s High quality products.The A Seal Limit Switch，Economical and high practical seal limit switch,Dopt High-efficiency spring structure design,machine lifemore than 10,000,000 operation.Shell with good mechanical properties of plastic materials that can withstand the impact of large stock.Has a good cushion, shock absorption to larger ultra-trip.

Characteristic:

1.Long life:Dopt High-efficiency spring structure design,machine life more than 10,000,000 operation.

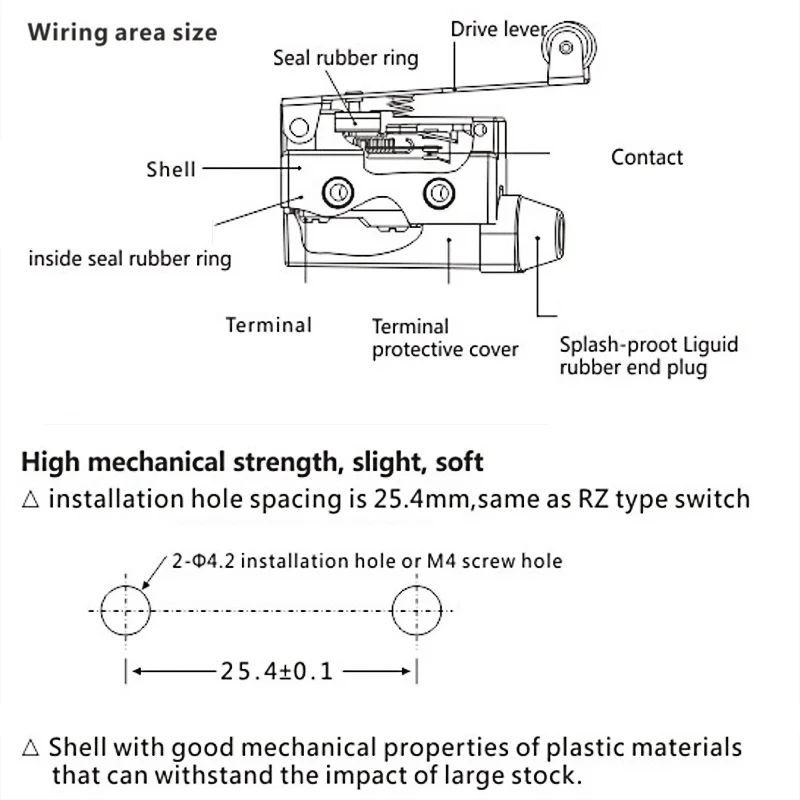

2.High mechanical strength, slight, soft. Shell with good mechanical properties of plastic materialsthat can withstand the impact oflarge stock.

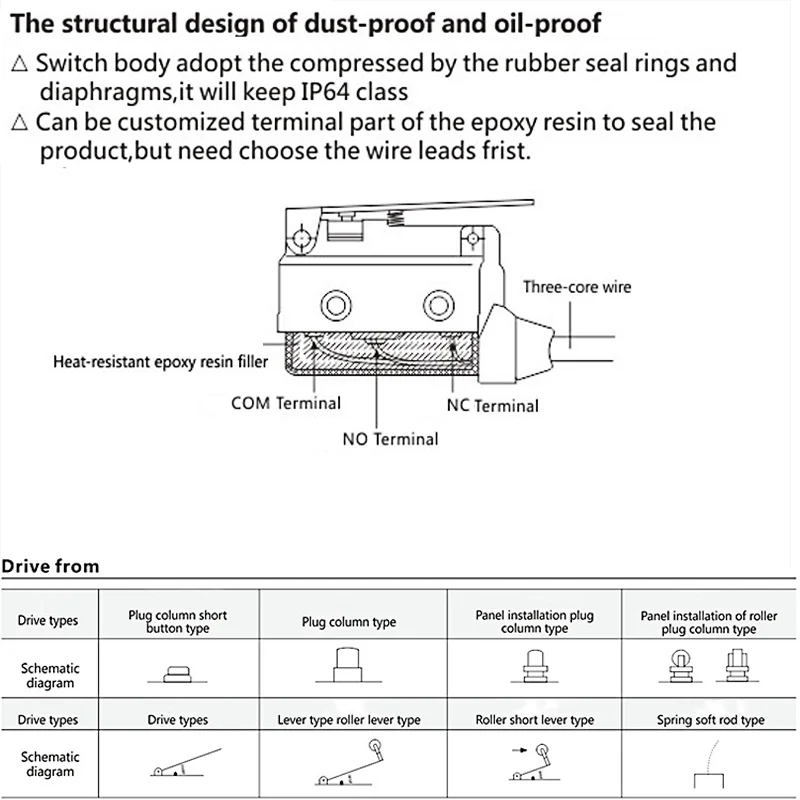

3.The structural design of dust-proof and oil-proof,Switch body adopt the compressed by the rubber seal rings and diaphragms,it will keep IP64 class.Can be customized terminal part of the epoxy resin to seal the product,but need choose the wire leads frist.

4.Has a good cushion, shock absorption to larger ultra-trip

5.Certificate:CCC CE

Rated value and performance:

1.Rated work current:10A 125V,250VAC:0.4A 115VDC(Resistance load)

2.Contact Specification:

a:Contact resistance(initial value):Under 15mΩ min.(Without copper wire resistance)

b:Contact Material:With the chemical formula silver cadmium oxide contact(can make to the RoHS directive)

3.Electricalperformance:

a:Insulation resistance (initial value):100mΩ min.(tested by 500VDC insulation ohmer)

b:Voltage-withstanding:Non-connected terminal: 1，500V 50/60Hz 1 min/No-voltage metal part and terminal: 2 ，000V 50/60Hz 1min/Ground and terminal: 2 ，000V 50/60Hz 1min

4.Mechanical:Shock-resistant:

a:free state :under 98m/s²(10G)

b:Full load state:Under 294m/s2(30G)

c:Vibration resistance:10-55HZ1.5mm double amplitude (contact left is under 1ms)

5.Life:

a:Mechanical(overtravel OT):10,000,000 operations min(on-off frequency 50 operations/min)

b:ELectrical(resistance load):200,000 operations min(on-off frequency 20 operations/min)

6.Use condition:

a:Ambient termperature and humidity:-20°C~+60°C(without frozen and dew),under 95%(about +5~20C)

b:Max.on-off frequency:120 operation/min
