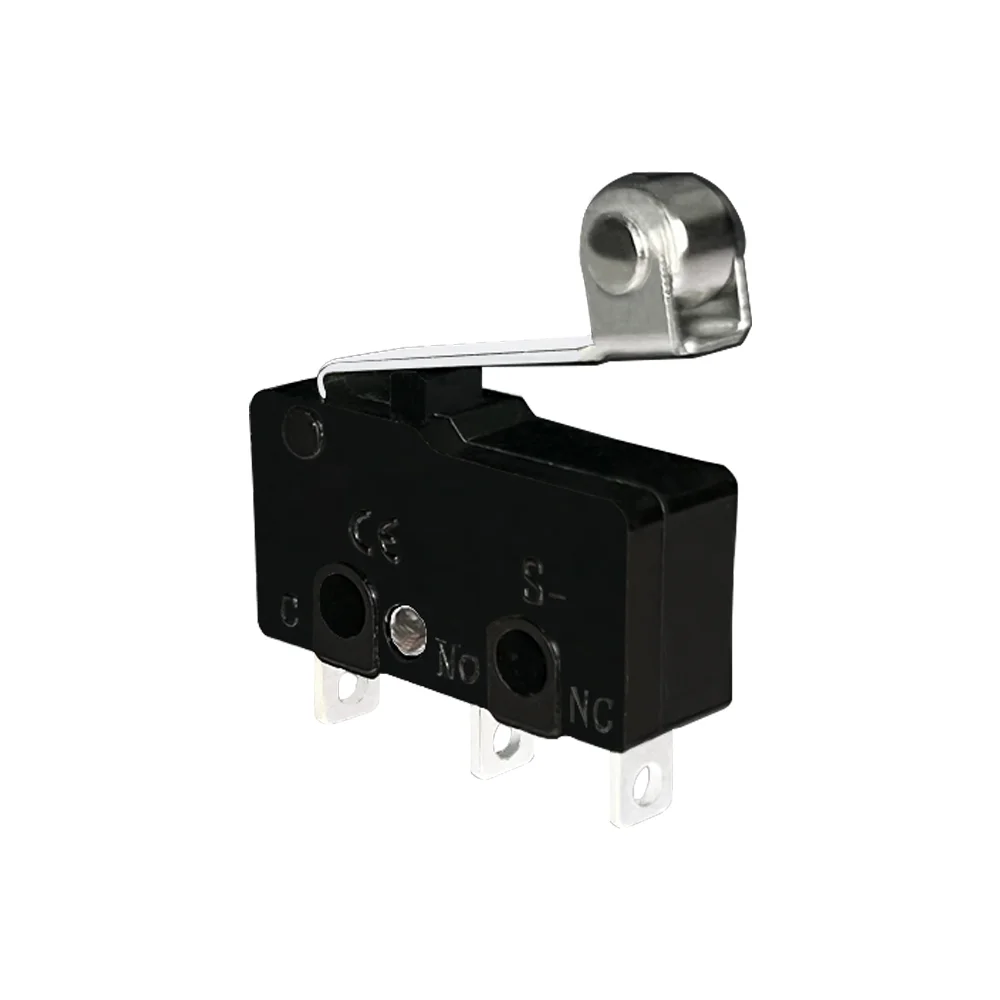

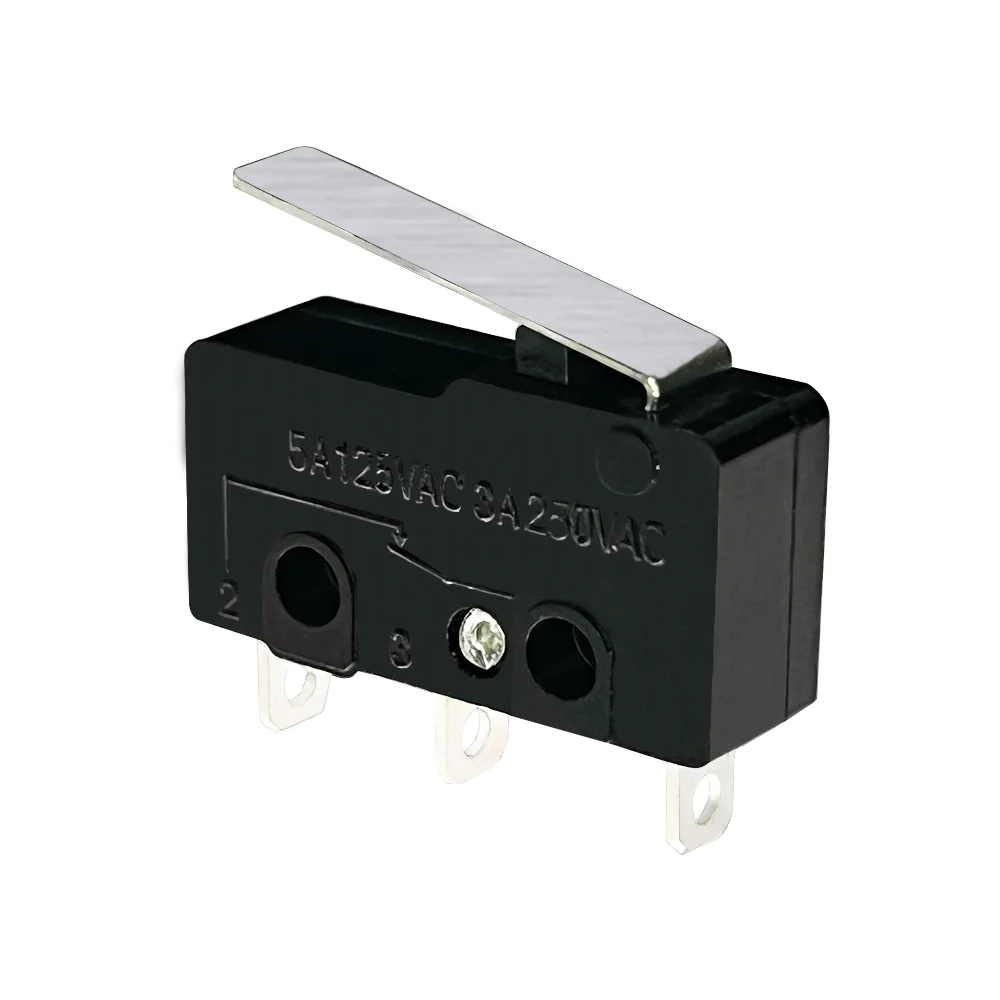

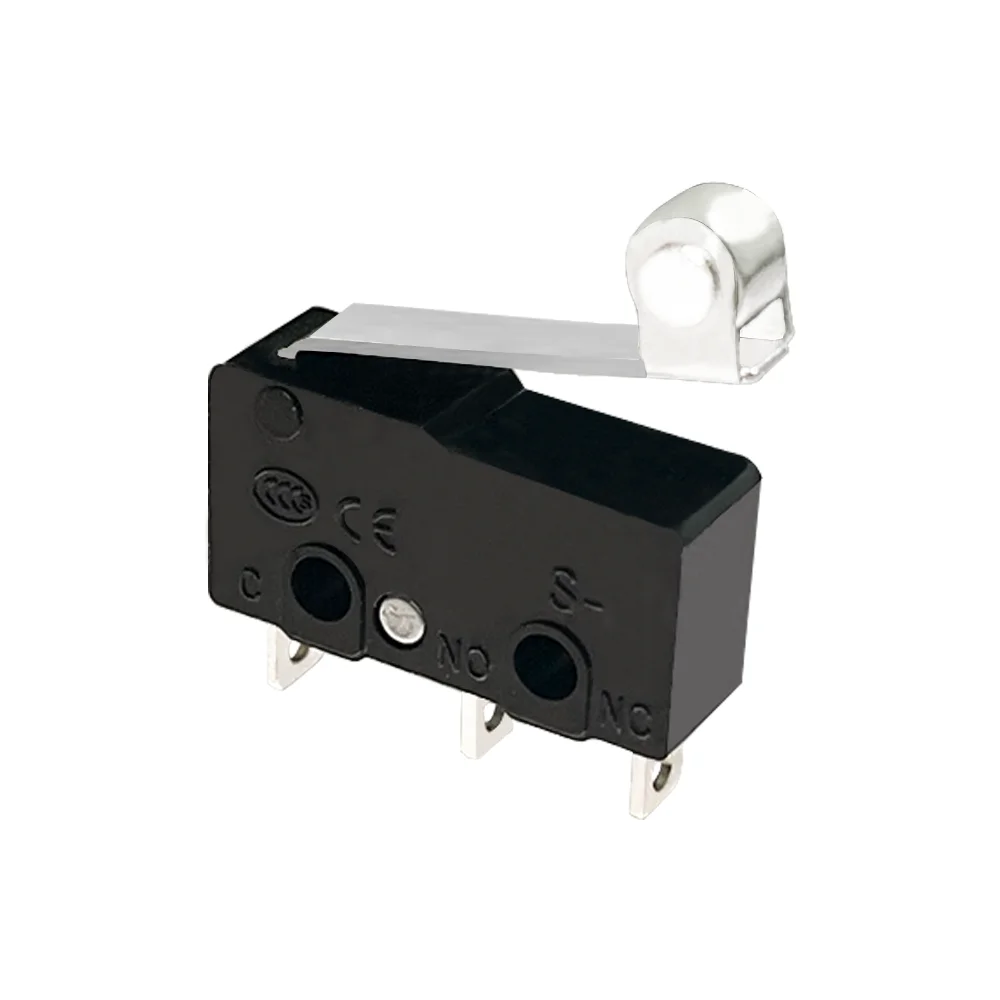

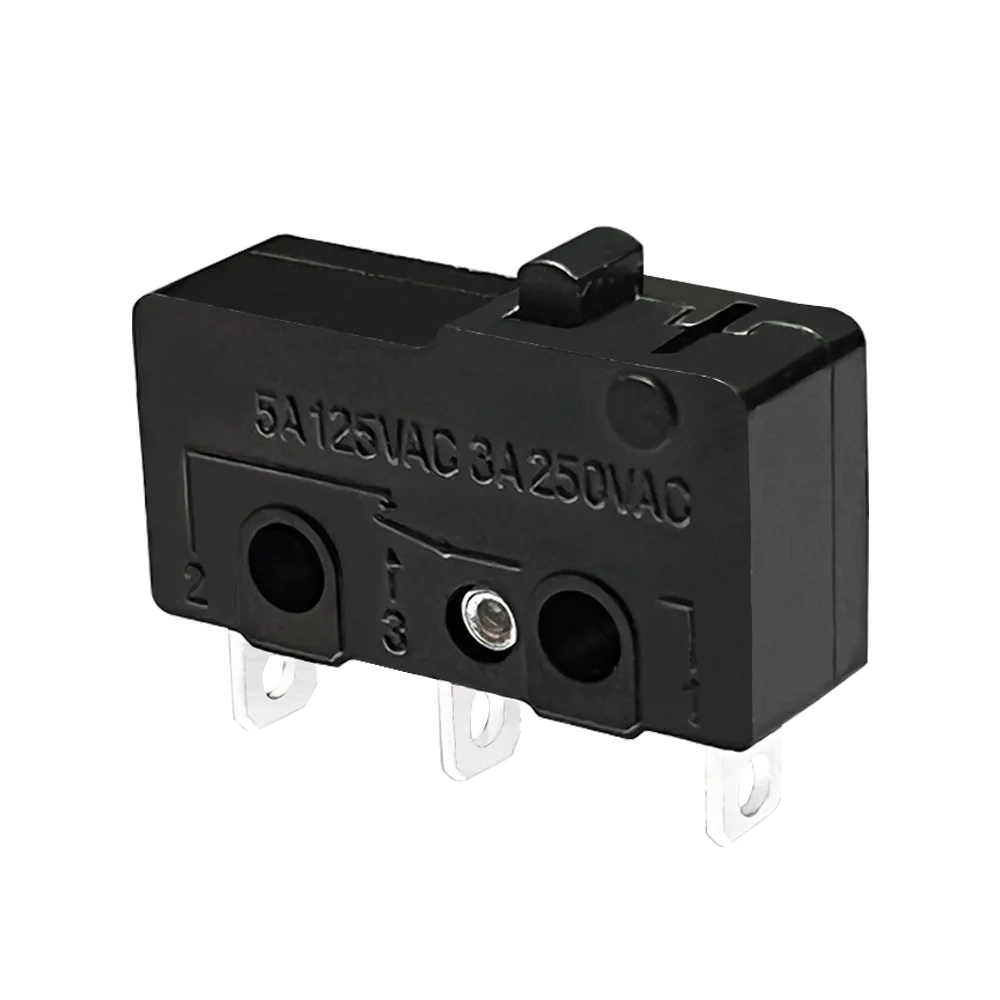

High quality silver contact Micro Switch NO/NC Mini Limit Switch 3A 5A 10A 250VAC Arc lever Snap Action Long lever Roller lever type

Short Description:

S-Micro switch in mini-type,good performance and low price.Micro switches, also known as miniature，snap-action switches are commonly used in various household and office，appliances as well as in industrial applications. They are widely recognized，for their good performance, durability, and affordability. In household appliances，such as warmers, electric blankets, rice-cookers, electric kettles, irons and，cleaners, micro switches are used for detecting and controlling different.functions. For example, in an electric kettles micro switch is used to detect the position of the lid, ensuring that the kettle doesn’t function if the lid is not properly closed. Ln an iron, the micro switch can be used to detect if the iron is placed upright or in the horizontal position, controlling the automatic shut-off feature. Similarly, in office appliances like duplicators, printers, electrographs,surveying.instruments, micro switches are employed to detect paper jams control.the movement of printheads, or trigger.certain functions. sound equipment, micro switches can be used for on/off control or to detect the insertion of audio connectors. Micro switches are known for their versatility and reliability offer precise and consistent actuation, making them suitable for a wide range of applications Due to their small size and low cost, they are commonly used in mass-produced products where cost-effectiveness is crucial. When looking for micro switches for your specific needs, it’s important to consider electrical specifications (such as current and voltage ratings actuation and travel, and there quired level of environmental protection like dust and moisture resistance.

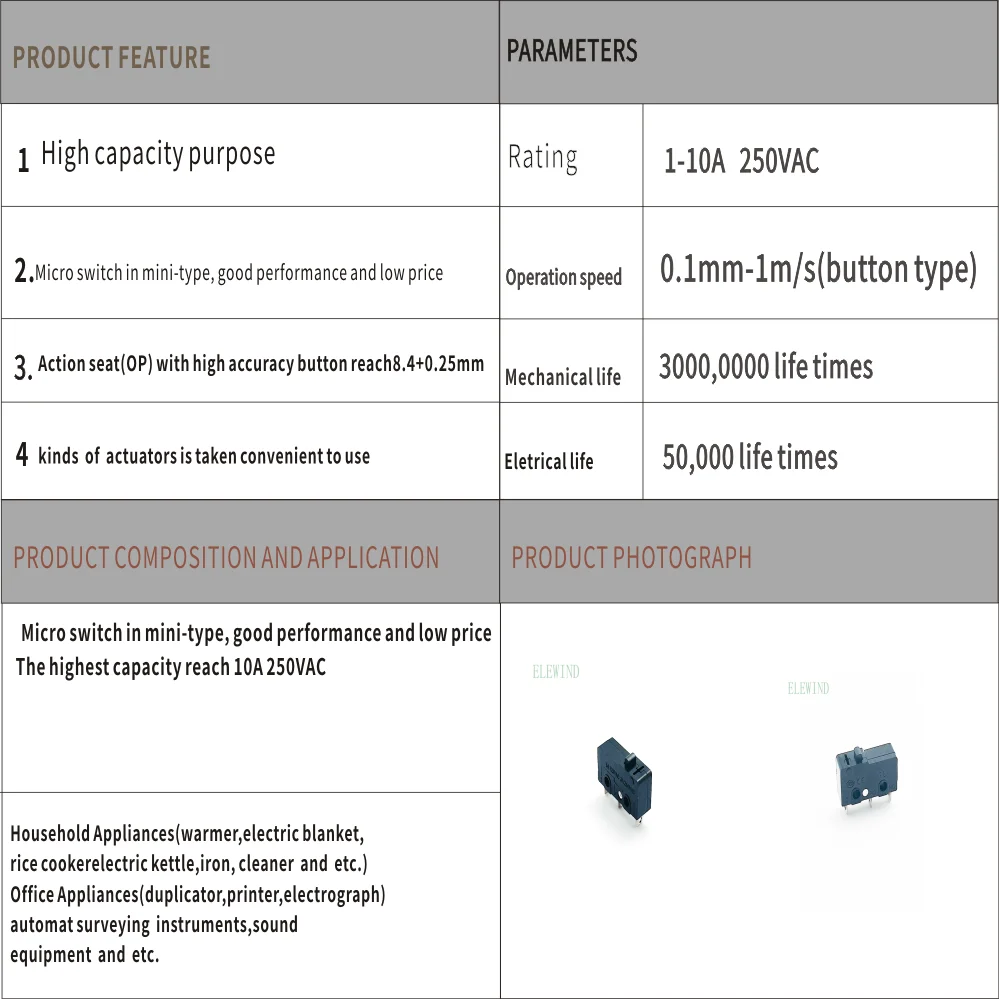

Characteristic:

1.The highest capacity reach 10A 250VAC

2.Long life

a:Mechanical:30,000,000 opeartions/min

b:Electrical:50,000 operations/min(10A 250VAC);100,000 opearations/min(5A 250VAC);200,000 operations/min(3A 250VAC)

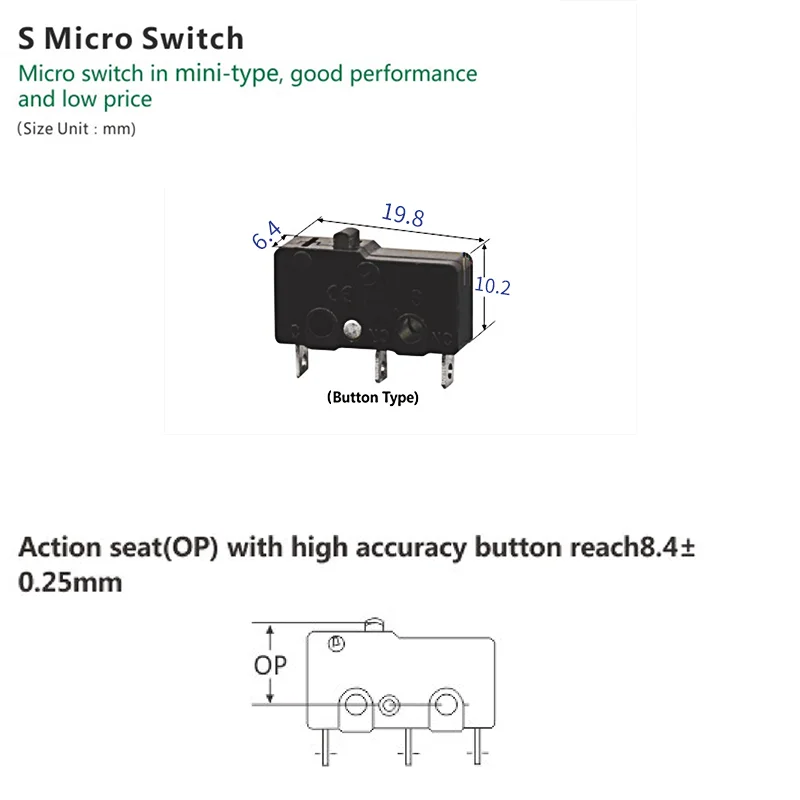

3.Action seat(OP)with high accuracy button reach 8.4±0.25mm

4.certificate:CE

5.Meet the RoHS directive

6.Application:

a:High capacity purpose——Household Appliances(warmer,electric blanket,rice cooker,electric kettle,iron,cleaner and etc.)

b:Long life purpose——Office Appliances(duplicator,printer,electrograph)automat surveying instruments,sound equipment and etc.

Specification:
