30MM
-

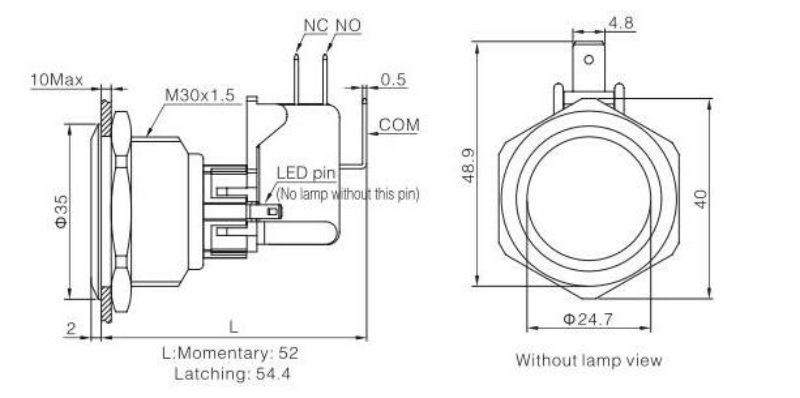

ELEWIND 30mm 15A big current Latching push button switch,UL approval ( PM301-LC-11Z/S )
Part number:15A big current LatchingMetal push button switch(PM301-LC-11Z/S )
Install diameter:30mm
Switch rating: 15A/250VAC (Resistive load)
Shape: Flat head
Function:Latching (Push on,push again off) (1NO1NC)
Terminal: 3 Pin terminal (4.8*0.5mm)
Operation travel: about 2.5mm
Panel thickness: 1 – 10mm
Crust and cap material: stainless steel
Operate force:about 6N
IP rating: IP65
Mechanical life: 5,000,000 times
Electrical life: 50,000 times
Operation Temperature: – 25 to 75 Degree
-

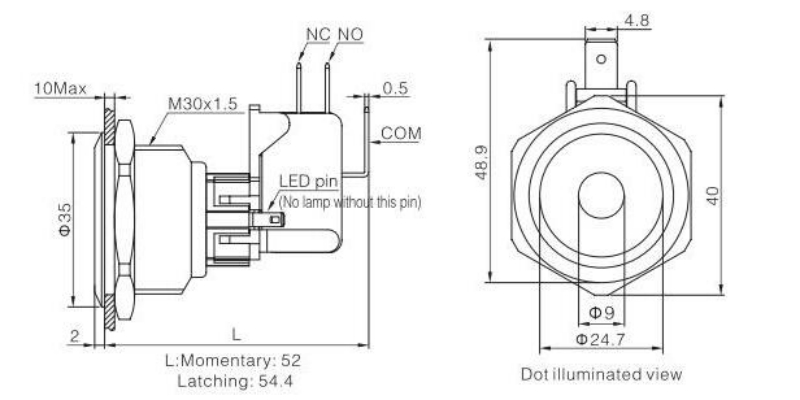

ELEWIND 30mm 15A big current Metal push button switch with dot light ( PM301-LC-11D/S, UL approval )
Part number:15A big current Metal push button switch with illuminated dot symbol(PM301-LC-11D/S, UL )
Install diameter:30mm
Switch rating: 15A/250VAC (Resistive load)
Shape: Flat head Dot symbol illuminated
Function:Momentary (Push on,release off) (1NO1NC)
LED Color: Red, green,blue and white for you choose.
Terminal: 5 Pin terminal (4.8*0.5mm for led, 2.8*0.5mm for switch)
Operation travel: about 2.5mm
Panel thickness: 1 – 10mm
Crust and cap material: stainless steel
Operate force:about 6N
IP rating: IP65
Mechanical life: 5,000,000 times
Electrical life: 50,000 times
Operation Temperature: – 25 to 75 Degree
-
ELEWIND 30mmStainless steel Dot illuminated push Momentary or Latching 1NO1NC or 2NO2NC button switch(PM301F-11D/B/12V/S)
ELEWIND 30mm Dot illuminated push button switch(PM301F-11E/B/12V/S)
Part number:PM301F-11D/B/12V/S
Install diameter:30mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 30mm stainless steel Pin terminal 1NO1NC or 2NO2NC Momentary or Latching vandalproof push button switch(PM301-11Z/S)
Part number:PM301-11Z/S
Install diameter:30mm
Switch rating: 5A/250VAC
Shape: Flat head
Function: Latching type (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 30mm Stainless steel anti vandal push button switch With START symbol ( PM301F-11E/B/12V/S With START symbol )
ELEWIND 30mm Stainless steel Metal push button switch With START symbol(PM301F-11E/B/12V/S With START symbol)
Part number:PM301F-11E/B/12V/S With START symbol
Install diameter:30mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC) (Push on, release off)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 30mm Stainless steel anti vandal push button switch With power symbol ( PM301F-11E/B/12V/S With power symbol )
ELEWIND 30mm Stainless steel Metal push button switch With power symbol(PM301F-11E/B/12V/S With power symbol)
Part number:PM301F-11E/B/12V/S With power symbol
Install diameter:30mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC) (Push on, release off)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

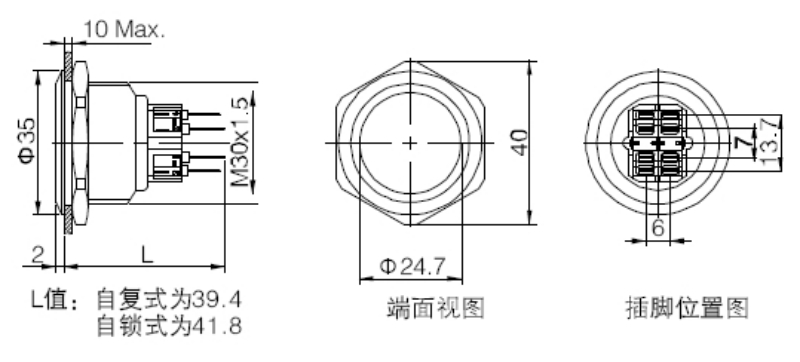

ELEWIND 30mm Ring illuminated anti vandal Stainless steel metal push button switch(PM301F-11E/G/12V/S , PM301F-22ZE/G/12V/S )
ELEWIND 30mm Ring illuminated anti vandal push button switch(PM301F-11E/G/12V/S)
Part number:PM301F-11E/G/12V/S
Install diameter:30mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Green,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
