25MM
-
ELEWIND 25mm 15A big current Latching switch,UL approval ( PM251-Q-11Z/S )
Part number:15A big current Latching push button switch(PM251-LC-11Z/S )
Install diameter:25mm
Switch rating: 15A/250VAC (Resistive load)
Shape: Flat head
Function:Latching (Push on,push again off) (1NO1NC)
Terminal: 3 Pin terminal (4.8*0.5mm)
Operation travel: about 2.5mm
Panel thickness: 1 – 10mm
Crust and cap material: stainless steel
Operate force:about 6N
IP rating: IP65
Mechanical life: 5,000,000 times
Electrical life: 50,000 times
Operation Temperature: – 40 to 75 Degree
-
ELEWIND 25mm 15A big current Latching push button switch with light ( PM251-LC-11ZD/S, UL approval )
Part number:15A big current Latching push button switch with light(PM251-LC-11ZD/S, UL )
Install diameter:25mm
Switch rating: 15A/250VAC (Resistive load)
Shape: Flat head Dot illuminated
Function:Latching (Push on,push again off) (1NO1NC)
LED Color: Red, green,blue and white for you choose.
Terminal: 5 Pin terminal (4.8*0.5mm for led, 2.8*0.5mm for switch)
Operation travel: about 2.5mm
Panel thickness: 1 – 10mm
Crust and cap material: stainless steel
Operate force:about 6N
IP rating: IP65
Mechanical life: 5,000,000 times
Electrical life: 50,000 times
Operation Temperature: – 25 to 75 Degree
-

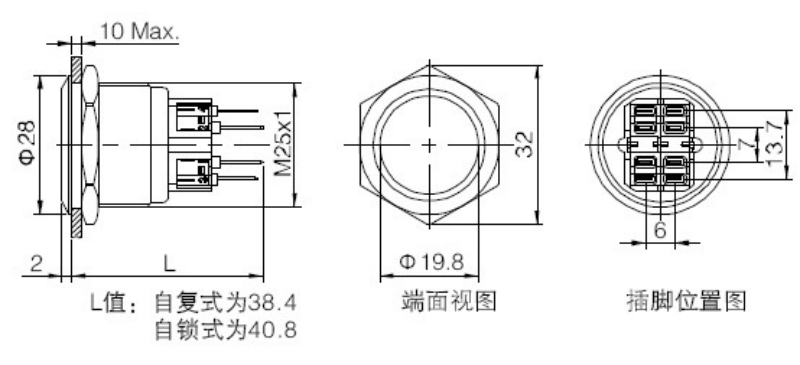

ELEWIND 25mm Momentary or Latching 1NO1NC or 2NO2NC Stainless steel Pin terminal push button switch(PM251F-11/S)
Part number:PM251F-11/S
Install diameter:25mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

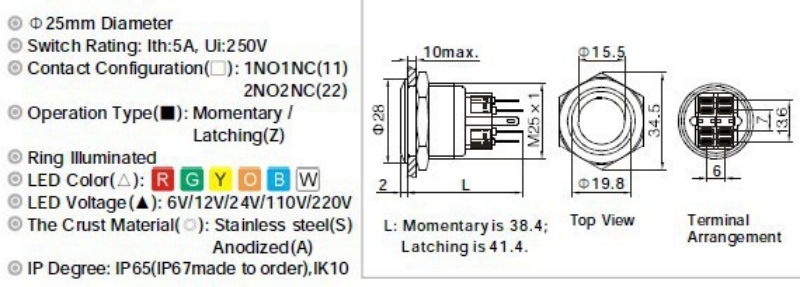

ELEWIND 25mm Stainless steel Latching or Momentary 1NO1NC or 2NO2NC Ring illuminated push button switch(PM251F-11ZD/R/12V/S)
Part number:PM251F-11ZD/R/12V/S
Install diameter:25mm
Switch rating: 5A/250VAC
Shape: Flat head
Color:Red,Blue,Green,Yellow,White,Orange
Voltage: from 1.8V to 250V
Function: Latching (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 25mm BLACK aluminum Latching or Momentary 1NO1NC or 2NO2NC Ring illuminated push button switch(PM251F-11ZE/R/12V/A)
Part number:PM251F-11ZE/R/12V/A
Install diameter:25mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Red,GREEN,Blue,Yellow,White,Orange
Voltage: from 1.8V to 250V
Function: Latching (1NO1NC)
Terminal: Pin terminal
Crust material: Black aluminum
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 25mm metal Momentary push button switch with 15cm cable wiring(PM251F-11E/B/12V/A)
Part number:PM251F-11E/B/12V/A
Install diameter:25mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC) or Latching Push on, push again off.
Terminal: Pin terminal or 15cm cable wiring
Crust material: Black aluminium
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 25mm Black alluminum Momentary or Latching 1NO1NC or 2NO2NC Pin terminal push button switch(PM251F-11/A)
Part number:PM251F-11/A
Install diameter:25mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Black alluminum
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 25mm Black alluminum Dot illuminated Latching or Momentary 1NO1NC or 2NO2NC button switch(PM251F-11ZD/R/12V/A)
Part number:PM251F-11ZD/R/12V/A
Install diameter:25mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Red,Blue,Green,Yellow,White,Orange
Voltage: from 1.8V to 250V
Function:Latching(1NO1NC)
Terminal: Pin terminal
Crust material: Black alluminum
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 25mm Stainless steel Momentary (1NO1NC) Domed head 4 Pin terminal push button switch ( PM251B-11/S )
ELEWIND 25mm Domed head Momentary push button switch(PM251B-11/S)
Part number:PM251B-11/S
Install diameter:25mm
Switch rating: 3A/250VAC
Shape:Domed head
Function: Momentary (1NO1NC)
Terminal: 4 Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 25mm stainless steel Latching (1NO1NC) power symbol on/off push button switch ( PM251F-11ZET/B/12V/S )
Part number:PM251F-11ZET/B/12V/S
Install diameter:25mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V)
Function: Latching (1NO1NC) Push on, Push again off.
Terminal: 6 Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 25mm black aluminium Momentary (1NO1NC) surface illuminated power symbol push button switch ( PM251F-11ET/R/12V/A )
Part number:PM251F-11ET/R/12V/A
Install diameter:25mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Red,Blue,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC) Push on, Release off.
Terminal: 6 Pin terminal
Crust material: Black aluminium
IP rating: IP65
Temperature: – 40 to 75 Degree
-
Wire harness connectors for PM251 series

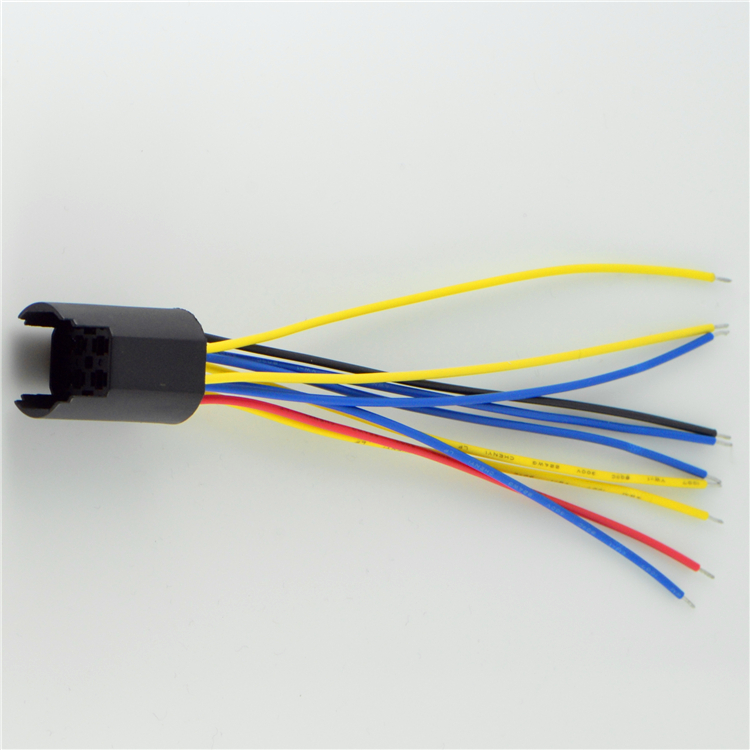

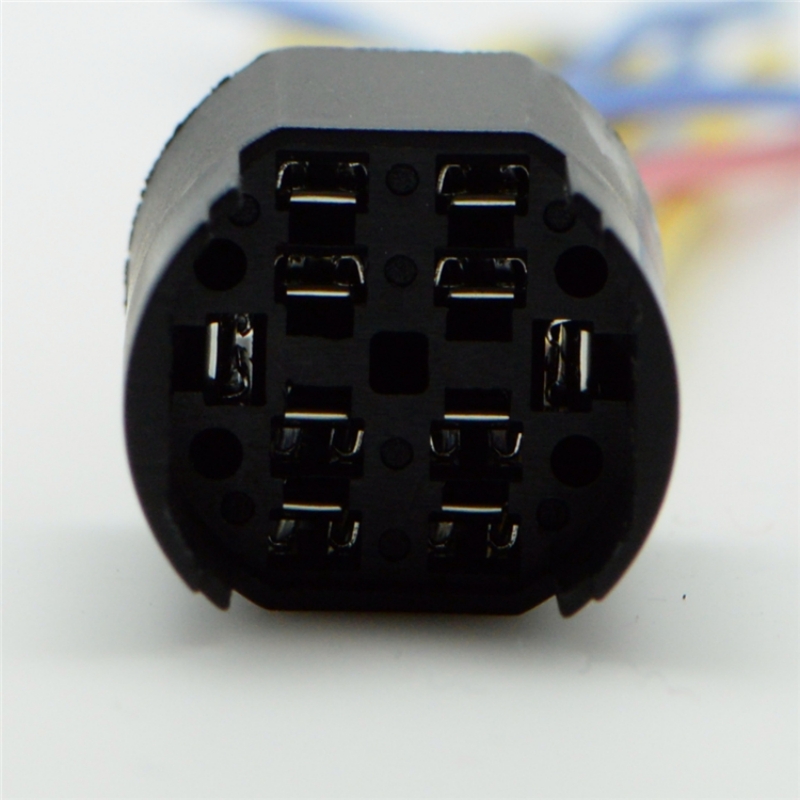

10 wires, each wire 14cm length. 2NO2NC illuminated type

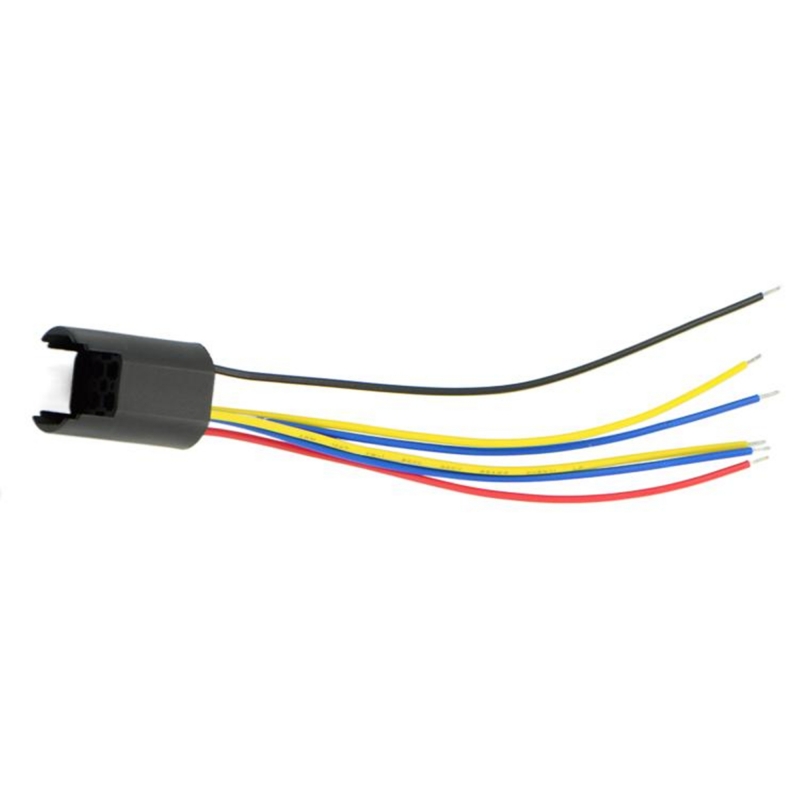

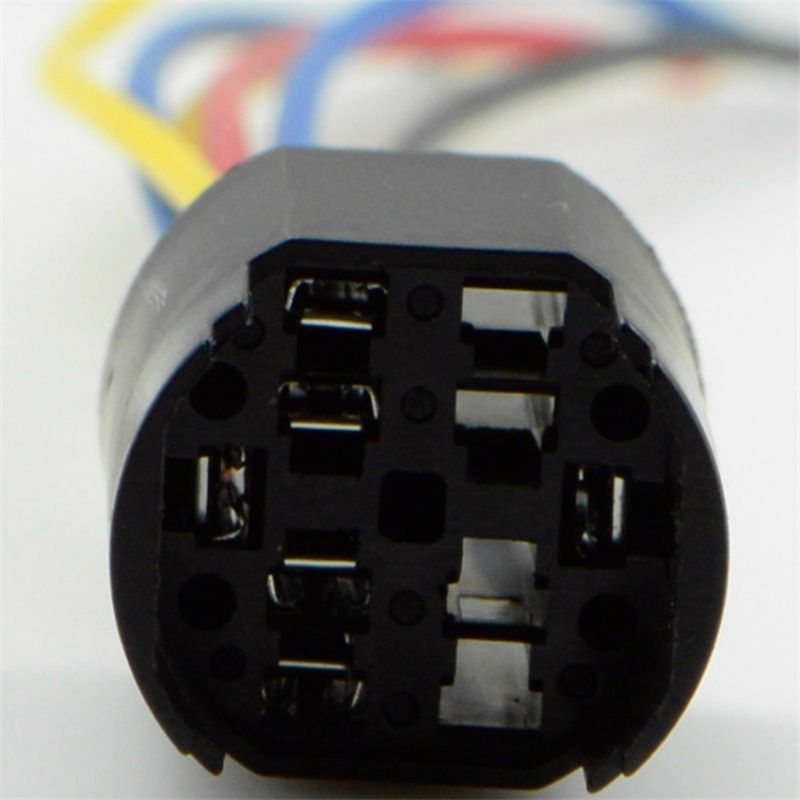

6 wires, each wire 14cm length. 1NO1NC illuminated type:
