ELEWIND 22mm Metal push button 1NO1NC momentary or Latching type ( PB226-11P )
Product Feature:
1.Metal aluminium button2. Function: 1NO1NC Momentary type or Latching type(you can choose the switch contact block in 1NO,1NC,2NO) -

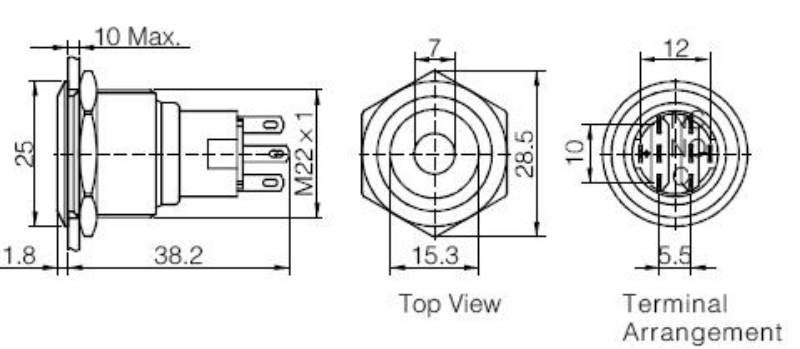

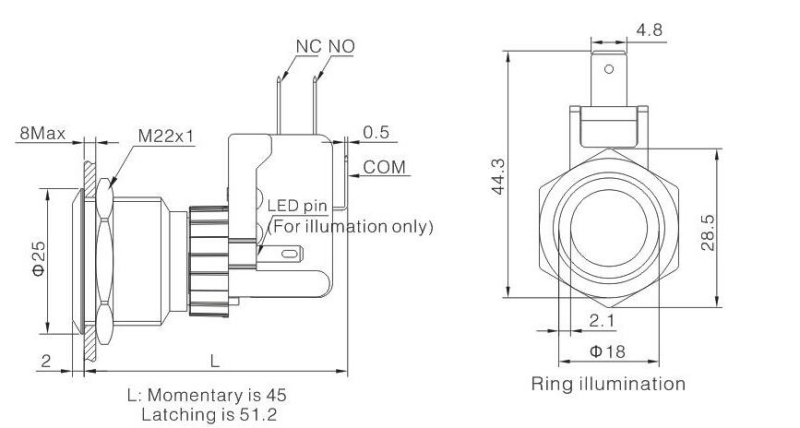

ELEWIND 22mm Long life over 15A Large current push button switch, Momentary/Latching ( PM221-Q-11/S, UL approval )
Part number:15A big current Metal push button switch(PM221-Q-11/S, UL )
Install diameter:22mm
Switch rating: 15A/250VAC (Resistive load)
Shape: Flat head Ring illuminated
Function:Momentary type (Push on,release off) (1NO1NC) Or
Latching type(Push on, push again off) (1NO1NC)
Terminal: 3 Pin terminal ( 2.8*0.5mm for switch)
Operation travel: about 2.5mm
Panel thickness: 1 – 10mm
Crust and cap material: stainless steel
Operate force:about 6N
IP rating: IP65
Mechanical life: 5,000,000 times
Electrical life: 50,000 times
Operation Temperature: – 25 to 75 Degree
-

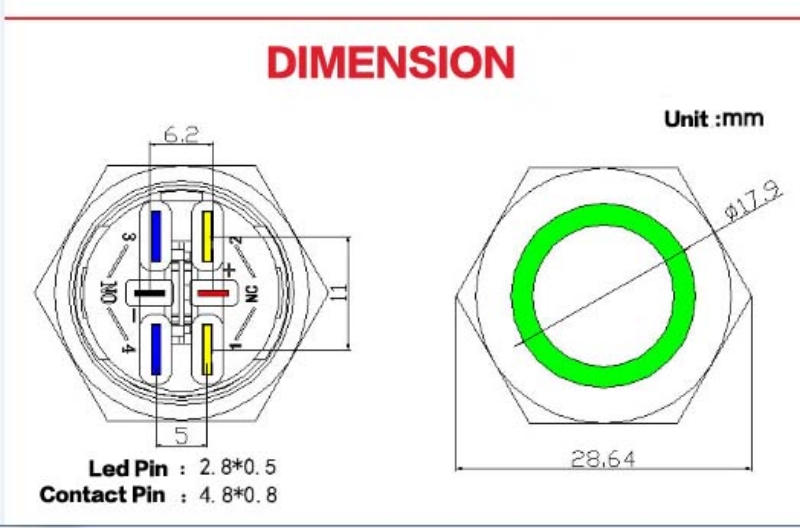

22mm cheaper momentary latching metal push button switch 18A large current chromium plated brass waterproof push button switch
22mm momentary latching metal push button switch 18A large current chromium plated brass waterproof push button switch
Description:
Install diameter:22mm
Switch rating: 18A/250V
Type: Momentary or latching, 1NO1NC or 2NO
Terminal: 6 Pin terminal
Crust material: Chromium plated brass
LED color: Red / Green /Blue / Yellow / White
LED Voltage: 6V,12V,24V,36V,110V,220V
-

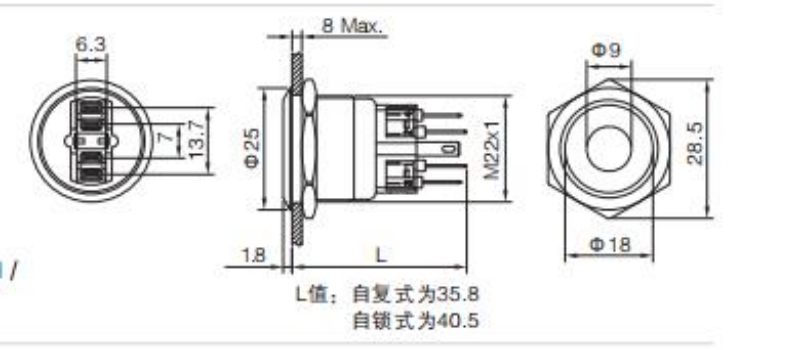

ELEWIND 22mm Stainless steel Momentary Latching (1NO1NC) Dot illuminated push button switch(PM221F-11D/R/12V/S)
Part number:PM221F-11D/R/12V/S
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Red
(Other color can be make:Green,Yellow,Blue,White,Orange)
Voltage: 12V (Other voltage can be make:1.8V to 250V)
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

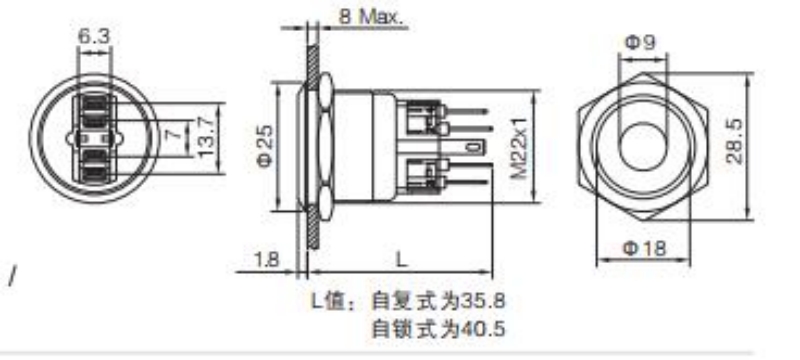

ELEWIND 22mm Black aluminum Dot illuminated Momentary Latching (1NO1NC) push button switch(PM221F-11D/G/12V/A/IP65)
Part number:PM221F-11D/G/12V/A /IP65
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Green
(Other color can be make:Red,Yellow,Blue,White,Orange)
Voltage:12V (Other voltage can be make:2.8V to 250V)
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Black aluminum
IP rating: IP65
Temperature: – 40 to 75 Degree
-

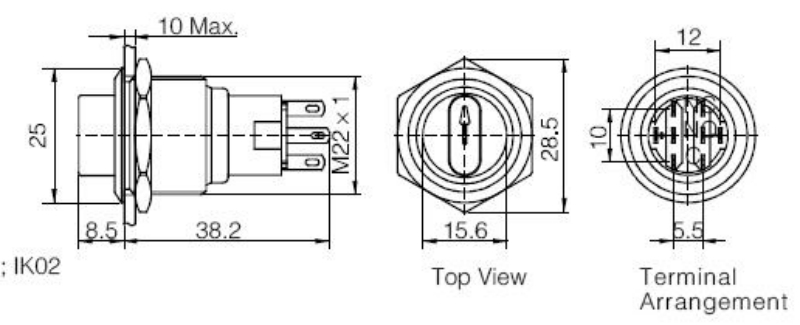

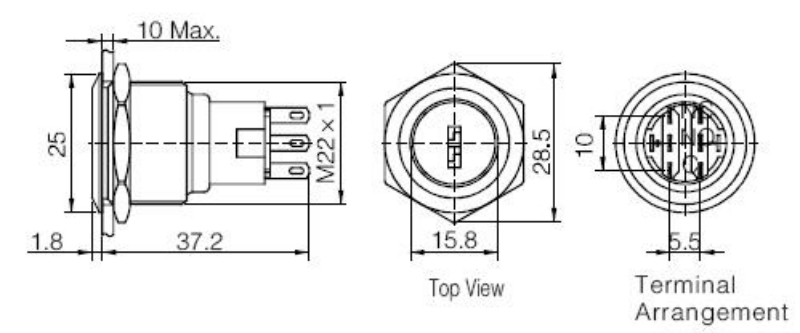

ELEWIND 22mm stainless steel 2 position maintain key lock switch(PM222F-11Y/21B ) Key cann’t removed in right position
ELEWIND 22mm 2 position maintain key lock switch(PM222F-11Y/21B ) Key cann’t removed in right position
Part number:PM222F-11Y/21B Key cann’t removed in right position
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: 2 position maintain(1NO1NC),key cann’t removed in right position
Terminal: Pin terminal
Crust material: stainless steel
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm stainless steel Flat head Pin terminal Latching or Momentary Dot illuminated push button ( PM222F-11ZD/R/12V/S )
ELEWIND 22mm Dot illuminated Latching push button(PM222F-11ZD/R/12V/S)
Part number:PM222F-11ZD/R/12V/S
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Latching(1NO1NC)
Led type: Dot illuminated
Color: Green,Red,Yellow,Blue,White,Orange
Voltage: 12V
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm stainless steel 2 position maintain ip65 waterproof selector switch with led (PM222F-11X/21/R/12V/S/IP65)
ELEWIND 22mm 2 position maintain ip65 waterproof selector switch with led (PM222F-11X/21/R/12V/S/IP65)
Part number:PM222F-11X/21/R/12V/S/IP65
Install diameter:22mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: 2 position maintain(1NO1NC)
LED color: Red(Green, blue,white,yellow，orange can be choose)
LED Voltage:from 2.8V to 220v
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

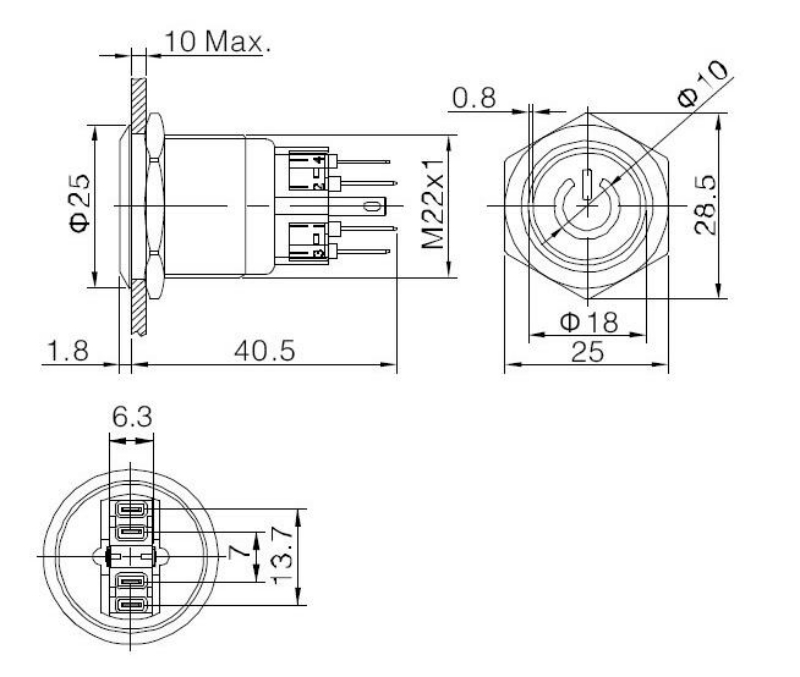

ELEWIND 22mm Black illuminated power symbol push button switch Momentary Latching ( PM221F-11ET/B/12V/A , PM221F-11ZET/B/12V/A )
ELEWIND 22mm Black illuminated power symbol push button switch(PM221F-11ET/B/12V/A)
Part number:PM221F-11ET/B/12V/A
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue，RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Black aluminium
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22mm Stainless steel illuminated push button switch with symbol(PM221F-11/with symbol)
Part number:PM221F-11 with any symbol
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: Flat head
Color: Blue,RED,Green,Yellow,White,Orange
Voltage: from 2.8V to 250V
Function: Momentary (Push on release off) or Latching (Push on, push again off)
Terminal: Pin terminal
Crust material: Stainless steel body illuminated button with symbol
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 22MM stainless steel button, customized illuminated symbol, pls contact us for detail price.!!
Special illuminated symbol pls contact us!!
Stainless steel illuminted symbol and stianless steel body!!
Part number:PM221F-11E/G/12V/S/IP65 with illuminated symbol
Install diameter:22mm
Switch rating: 2A/250VAC
Shape: Flat head
Color: Blue
(Other color can be make:Green)
Voltage: 24V (Other voltage can be make:2.8V to 250V)
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel
IP rating: IP65
Temperature: – 40 to 75 Degree
-

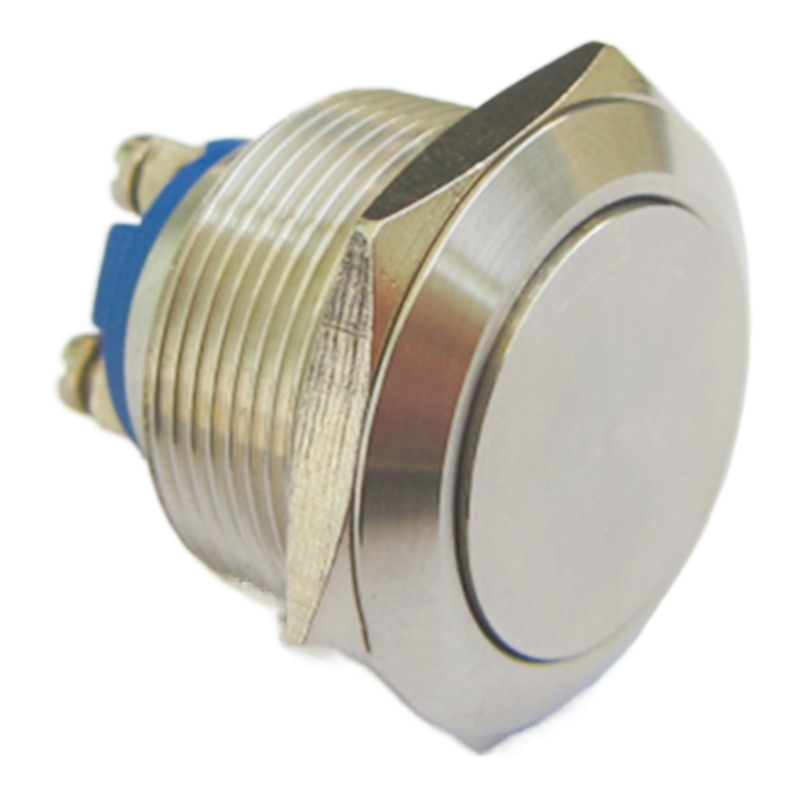

ELEWIND 22mm flat button with screw terminal push button switch(PM221F-10/S,CE,ROHS)
ELEWIND 22mm flat button with screw terminal push button switch(PM221F-10/S,CE,ROHS)
Part number:PM221F-10/S
Install diameter:22mm
Switch rating: 2A/36VDC
Shape: Flat button
Function: Momentary (1NO)
Terminal: Screw terminal
Crust material: stainless steel crust
IP rating: IP65
Temperature: – 25 to 75 Degree
