19MM
-
ELEWIND 19MM Contactless Sensor Switch Ring illuminated metal stainless steel with 30cm wire DC12V
1.Places with large dust;
2 Places with more corrosive gases;
3 Places with strong direct sunlight such as outdoors or sunlight;
4 The ambient temperature during use should be within the specified rated range;
5 Please confirm whether the installation is loose or skewed due to vibration impact etc
6 When installing the sensor beating with a hammer will damage the water-resistant structure please pay attention.
-
ELEWIND 19mm stainless steel Flat head 4 Pin terminal(1NO1NC) Key lock switch ( PM195F-11Y/21 )
Part number:PM195F-11Y/21 key cann’t remove in the ON position.
Install diameter:19mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Two position maintain key lock switch , the key cann’t remove in the ON position.
Terminal: 4 Pin terminal(1NO1NC)
Crust material: stainless steel
Temperature: – 40 to 75 Degree
-
ELEWIND 19mm stainless steel Momentary short length body push button switch ( PM19W-10E/R/12V/S )
Part number:Short length body push button switch(PM19W-10E/R/12V/S )
Install diameter:19mm
Switch rating: 50mA/24VDC
Shape: Flat head
Function:Momentary (Push on) (1NO)
Terminal: 4 Pin terminal (2.8*0.5mm)
Operation travel: 0.5mm
Panel thickness: 1 – 7mm
Crust material: stainless steel
Base material: PA
Operate force: 3N-6N
LED color: Red – Green - Blue- White for you choose.
Voltage:12V (Other voltage need MOQ 50pcs)
IP rating: IP65
Mechanical and electrical life: 500,000 times
Operation Temperature: – 40 to 75 Degree
-

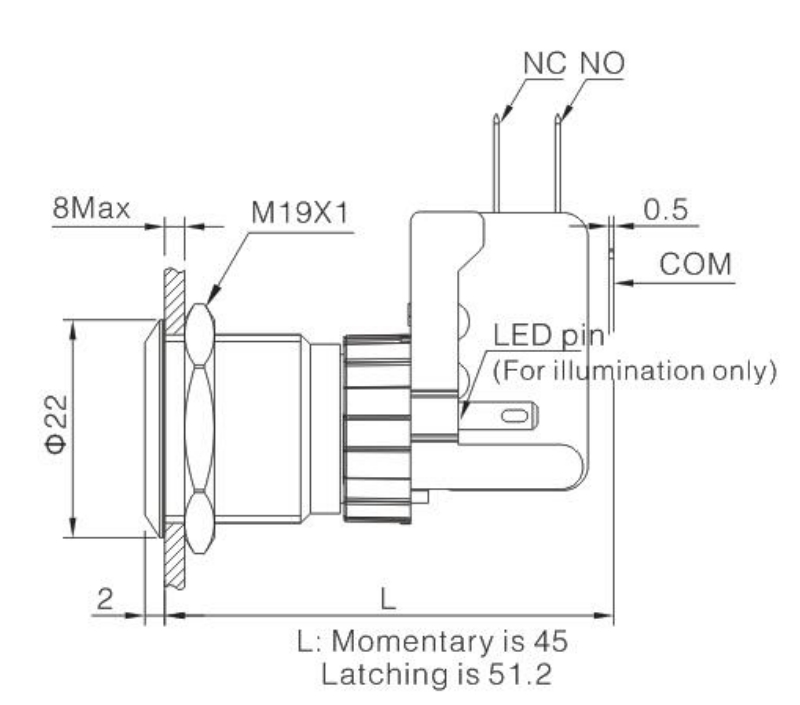

ELEWIND 19mm High life over 15A LARGE current Metal push button switch, Momentary / Latching ( PM191-Q-11/S, UL approval )
momentary type: push on, release off （no locking）
latching type: push on, push again off (locking)
Part number:15A big current Metal push button switch, momentary/latching (PM191-Q-11/S, UL )
Install diameter:19mm
Switch rating: 15A/250VAC (Resistive load)
Shape: Flat head
Function:Momentary (Push on,release off) (1NO1NC) or
Latching (Push on,push again off) (1NO1NC)
Terminal: 3Pin terminal ( 2.8*0.5mm for switch)
Operation travel: about 2.5mm
Panel thickness: 1 – 10mm
Crust and cap material: stainless steel
Operate force:about 6N
IP rating: IP65
Mechanical life: 5,000,000 times
Electrical life: 50,000 times
Operation Temperature: – 25 to 75 Degree
-

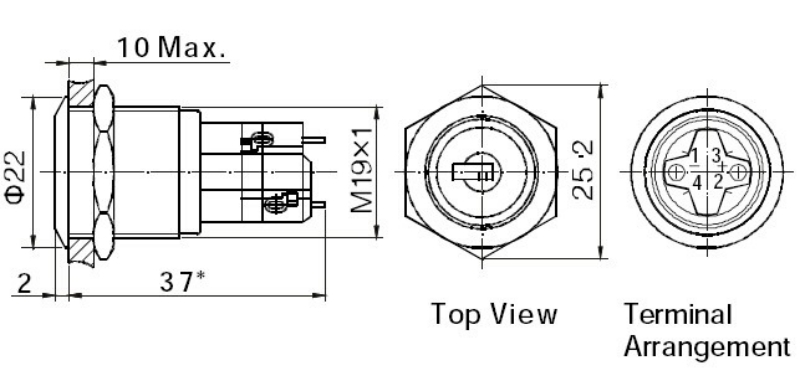

ELEWIND 19mm KEY SWITCH (PM193F-11Y/21 )
ELEWIND 19mm KEY SWITCH (PM193F-11Y/21 )
Part number:PM193F-11Y/21
Install diameter:19mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: 2 Position key switch
Terminal: 4 Pin terminal
Temperature: – 40 to 75 Degree
-

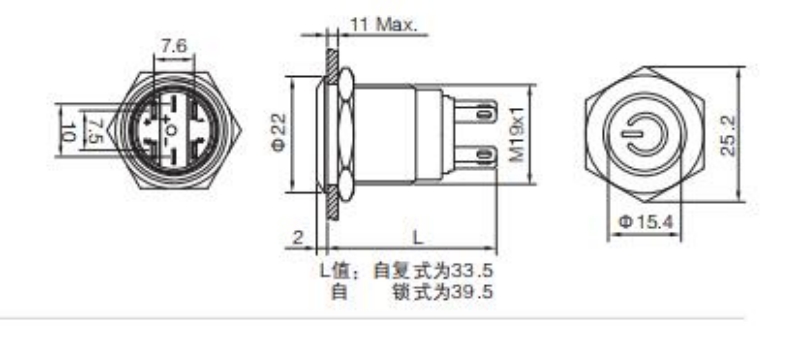

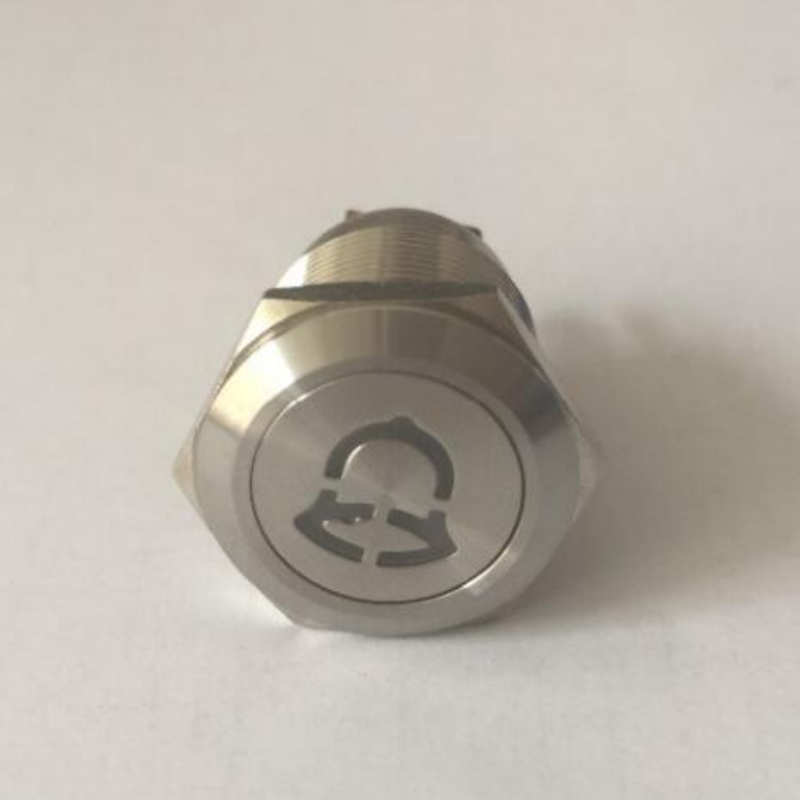

ELEWIND 19mm stainless steel Momentary Metal Doorbell button switch ( PM193F-11/R/12V/S With illuminated doorbell symbol )
ELEWIND Metal Doorbell button switch(PM193F-11/R/12V/S With illuminated doorbell symbol)
Part number:PM193F-11/R/12V/S With illuminated doorbell symbol
Install diameter:19mm
Switch rating: 5A/250VAC
Shape: Flat head
Function: Momentary(1NO1NC)
Led type: illuminated doorbell symbol
Color: Red,Blue,Yellow,Green,White,Orange
Voltage: From1.8V to 250V
Terminal: 6 Pin terminal
Crust material: stainless steel
IP rating: IP65/IP67 can make to order
Temperature: – 40 to 75 Degree
-

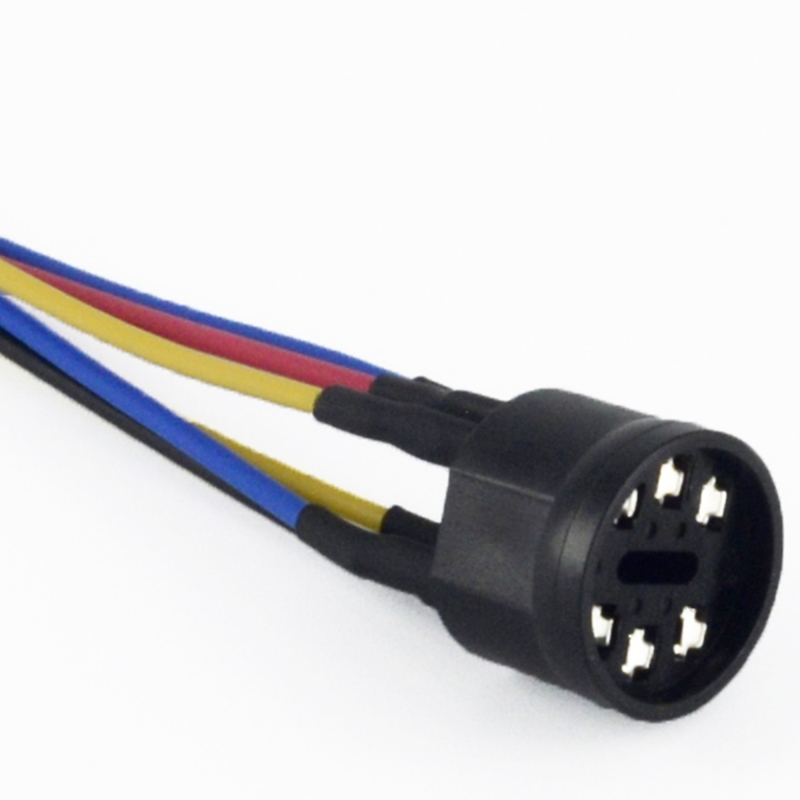

Wire Harness Connectors 6 pins for 1NO1NC of PM193 series
This link if for Wire harness connectors 6 pins for 1NO1NC PM193 series
6 wires for 1NO1NC illuminated type,
Red and black wire for LED.
Connect yellow and green is NO, Connect yellow and blue is NC.
-

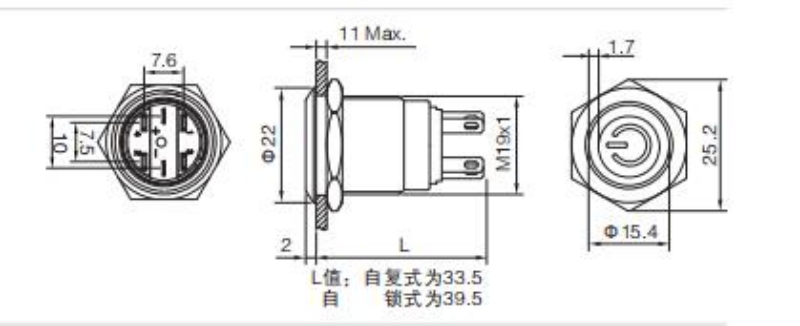

ELEWIND 19mm SPDT Button switch with light(PM193F-11ET/G/12V/S)
ELEWIND 19mm SPDT Button switch with light(PM193F-11ET/G/12V/S)
Part number:PM193F-11ET/G/12V/S
Install diameter:19mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary(1NO1NC)
Led type: Illuminated power symbol with Ring illuminated
Color: Green,Red,YellowBlue,White,Orange
Voltage: from 2.8V to 250V
Terminal: 6 Pin terminal
Crust material: stainless steel
IP rating: IP65/IP67 can make to order
Temperature: – 40 to 75 Degree
-

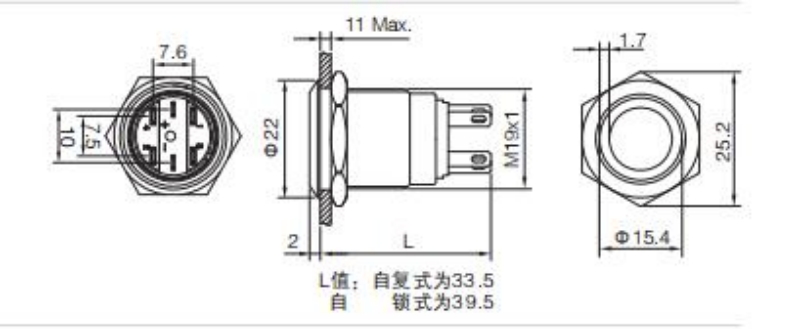

ELEWIND 19mm stainless steel singal pole Button switch with light ( PM193F-11DT/B/12V/S , PM193F-11ZDT/B/12V/S)
ELEWIND 19mm singal pole Button switch with light(PM193F-11DT/B/12V/S)
Part number:PM193F-11DT/B/12V/S
Install diameter:19mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary(1NO1NC)
Led type: Ring illuminated
Color: Blue,Red,Yellow,Green,White,Orange
Voltage: from 2.8V to 250V
Terminal: 6 Pin terminal
Crust material: stainless steel
IP rating: IP65/IP67 can make to order
Temperature: – 40 to 75 Degree
-

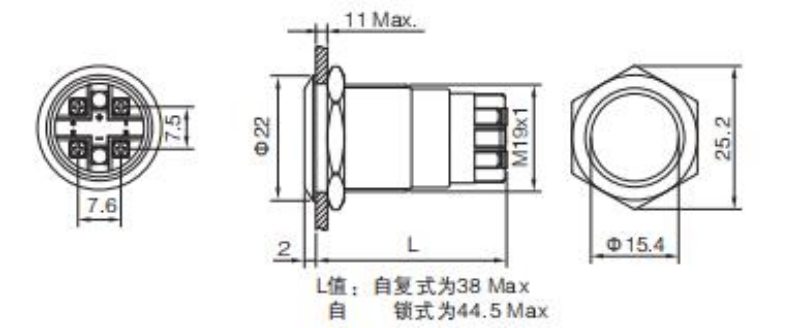

ELEWIND 19mm stainless steel 4 Pin terminal Latching or Momentary (1NO1NC) SPDT latching Button switch ( PM193F-11Z/S )
ELEWIND 19mm SPDT latching Button switch(PM193F-11Z/S)
Part number:PM193F-11Z/S
Install diameter:19mm
Switch rating: 5A/250VAC
Shape: Flat head
Function: Latching(1NO1NC)
Terminal: 4 Pin terminal
Crust material: stainless steel
IP rating: IP65/IP67 can make to order
Temperature: – 40 to 75 Degree
-
ELEWIND 19MM Anti vandal SPDT Button switch with light push button swith metal golden aluminium(PM193F-11ZE/O/12V/A)
ELEWIND Anti vandal SPDT Button switch with light(PM193F-11ZE/O/12V/A golden aluminium)
Part number:PM193F-11ZE/O/12V/A golden aluminium
Install diameter:19mm
Switch rating: 5A/250VAC
Shape: Flat head
Function: Latching type(Push on, Push again off)or momentary(push on ,release off)(1NO1NC)
Led type: Ring illuminated
Color: Orange
(Other color can be choose:Blue,Yellow,Green,White,Orange)
Voltage: 12V (Other voltage can be make to order: 1.8V to 250V)
Terminal: 6 Pin terminal
Crust material: Golden aluminium
IP rating: IP65/IP67 can make to order
Temperature: – 40 to 75 Degree
-
ELEWIND 19MM Anti vandal SPDT Button switch with light push button swith metal red aluminium (PM193F-11ZE/R/12V/A red aluminium)
ELEWIND Anti vandal SPDT Button switch with light(PM193F-11ZE/R/12V/A red aluminium)
Part number:PM193F-11ZE/R/12V/A red aluminium
Install diameter:19mm
Switch rating: 5A/250VAC
Shape: Flat head
Function:Latching type(Push on, Push again off)or momentary(push on ,release off)(1NO1NC)
Led type: Ring illuminated
Color: Red
(Other color can be choose:Blue,Yellow,Green,White,Orange)
Voltage: 12V (Other voltage can be make to order: 1.8V to 250V)
Terminal: 6 Pin terminal
Crust material: Red aluminium
IP rating: IP65/IP67 can make to order
Temperature: – 40 to 75 Degree
