16MM
-

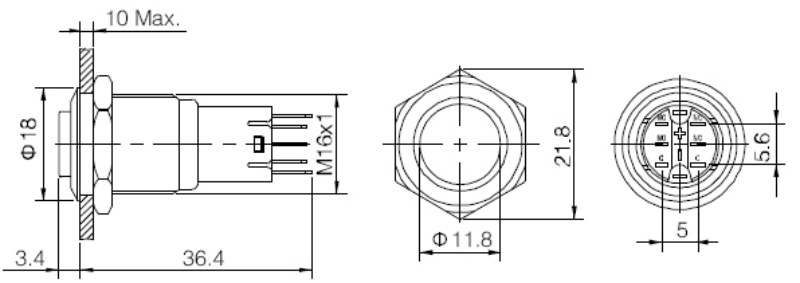

16mm NIckel plated brass or Stainless steel Ring illuminated Latching push button switch(PM162F-11ZE/B/12V/N,CE,ROHS)
Part number:
PM162F-11ZE/B/12V/N
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Latching(1NO1NC)
Led type: Ring illuminated
Color: Blue,Red,Yellow,Green,White,Orange
Voltage: FROM 2.8V to 250V
Terminal: Pin terminal or 15cm cable wiring
Crust material: Nickel-plated brass/ Stainless steel / Black aluminium
Temperature: – 40 to 75 Degree
-

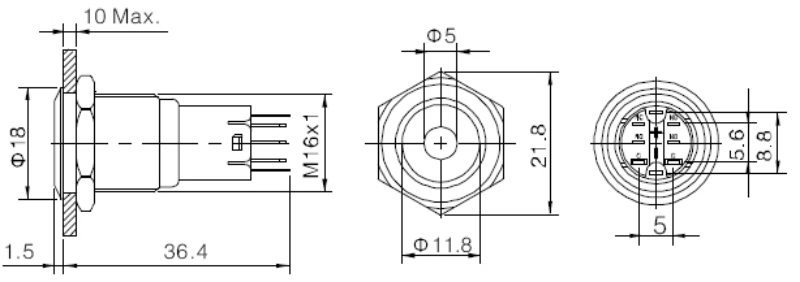

16mm Flat head Dot illuminated Momentary Latching (1NO1NC) push button switch(PM162F-11D/G/12V/A,CE,ROHS)
Part number:
PM162F-11D/G/12V/A
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary (1NO1NC)
Led type: Dot illuminated
Color: Green(Other color can be choose:Blue,Yellow,Green,White,Orange)
Voltage: from 1.8V to 250V
Terminal: 5 Pin terminal
Crust material: Black aluminium
Temperature: – 40 to 75 Degree
-

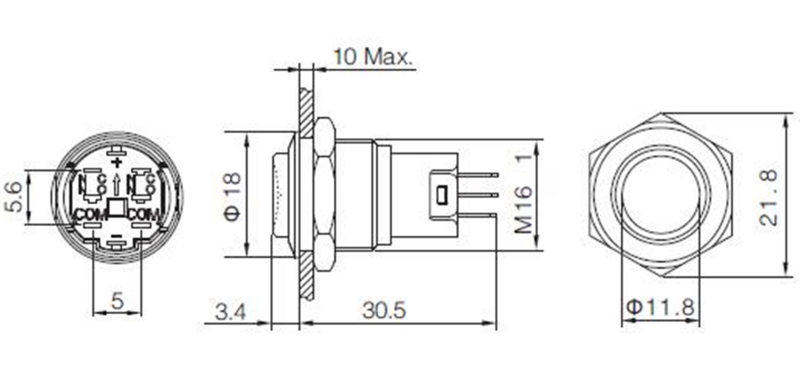

16mm Momentary push button switch with connect(PM162H-11E/R/12V/S,CE,ROHS)
Part number:
PM162H-11E/R/12V/S/IP65 with connector
Install diameter:16mm
Switch rating: 3A/250VAC
Shape:High Flat head
Function: Momentary (1NO1NC)
Led type: Ring illuminated
Color: Red(Other color can be choose:Red,Yellow,Green,White,Orange)
Voltage: 12V (Other voltage can be make to order: 2.8V to 250V)
Terminal: 5 Pin terminal
IP Rating: IP40 / IP67 can be customized
Crust material: Stainless steel crust
Temperature: – 40 to 75 Degree
-

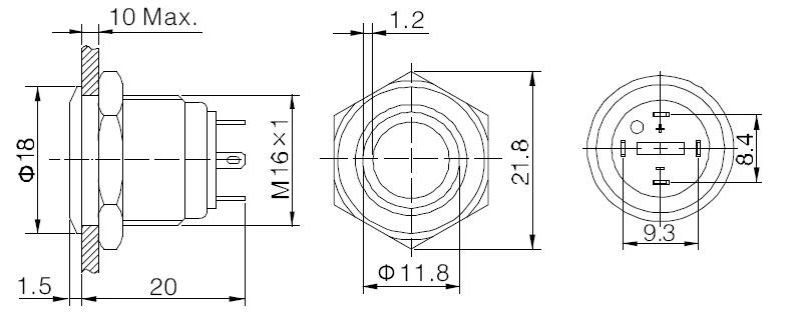

16mm 1NO1NC or 2NO2NC Pin terminal Stainless steel , Black aluminium , Nickel-plated brass Metal push button switch(PM162H-11/S)
16MM Metal push button switch(PM162H-11/S)
Part number:
PM162H-11/S
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary (1NO1NC)
Terminal: Pin terminal
Crust material: Stainless steel crust
Temperature: – 40 to 75 Degree
-

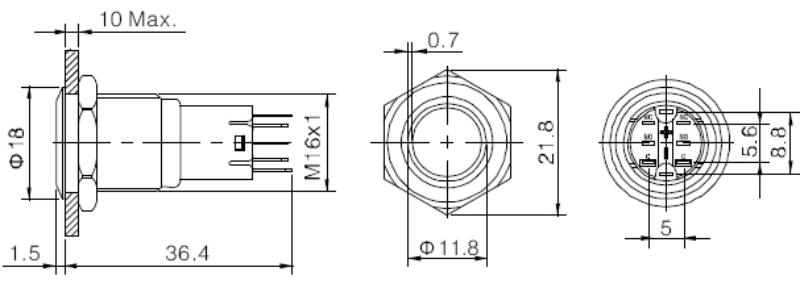

16mm Ring illuminated Momentary or Latching nickel plated brass stainless steel push button switch(PM162F-11E/B/12V/N)
Part number:
PM162F-11E/B/12V/N
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary(1NO1NC)
Led type: Ring illuminated
Color: Blue(Other color can be choose:Red,Yellow,Green,White,Orange)
Voltage: from 2.8V to 250V
Terminal: Pin terminal
Crust material: Nickel-plated brass
Temperature: – 40 to 75 Degree
-

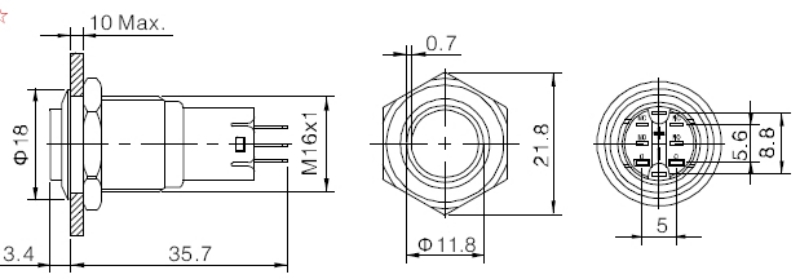

(Hot !) Power symbol metal push button switch(16mm,PM162F-11DT/B/12V/S , PM162F-11ZDT/B/12V/S CE,ROHS)
Part number:
PM162F-11DT/B/12V/S with power symbol
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: Flat head
Function: Momentary (1NO1NC)
Led type: Power symbol illuminated
Color: Blue,Red,Yellow,Green,White,Orange
Voltage: from 2.8V to 250V
Terminal: Pin terminal
Crust material: stainless steel
IP rating: IP40
Temperature: – 40 to 75 Degree
-

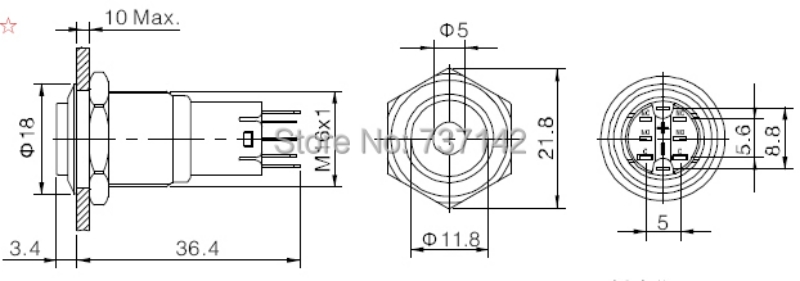

(Hot !) 16mm Dot illuminated push button switch(PM162H-11D/B/12V/S,PM162F-11ZD/G/12V/S CE,ROHS)
Part number:
PM162H-11ZD/B/12V/S
Install diameter:16mm
Switch rating: 3A/250VAC
Shape: High Flat head
Function: Latching (1NO1NC)
Led type: DOT illuminated
Color: Blue(Other color can be choose:Red,Yellow,Green,White,Orange)
Voltage: from 1.8V to 250V
Terminal: 5 Pin terminal
Crust material: stainless steel crust
Temperature: – 40 to 75 Degree
IP rating：IP40
-

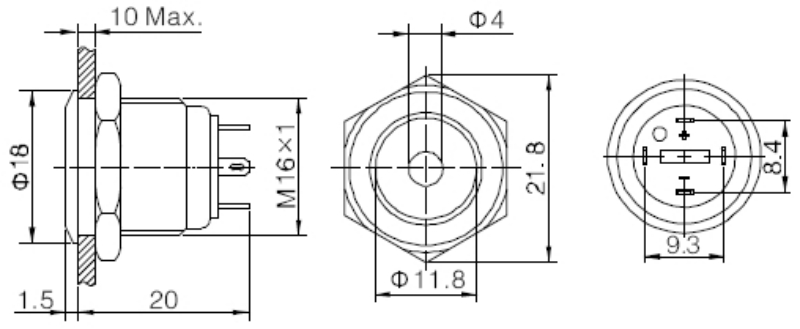

16mm 1NO1NC or 2NO2NC Pin terminal Stainless steel colorful head momentary latching push button switch(PM162F-11/R/S)
16MM Metal push button switch(PM162F-11/R/S)
Part number:
PM162F-11/R/S
Install diameter:16mm
Switch rating: 1A/250VAC
Shape: Flat head
Function: Momentary or latching, 1NO1NC or 2NO2NC
colorful head color: red green blue white yellow
Terminal: Pin terminal
Crust material: Stainless steel crust
Temperature: – 40 to 75 Degree
-
ELEWIND 16mm Ring illuminated momentary (1NO) Black aluminium or stainless steel push button switch (PM161F-10E/JL/B/12V/A)
Part number:PM161F-10E/JL/B/12V/A
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: Long Pin terminal
Crust material: Black aluminium
LED color:Blue
Voltage: from 1.8V to 48v
IP rating: IP65
Temperature: – 40 to 75 Degree
-

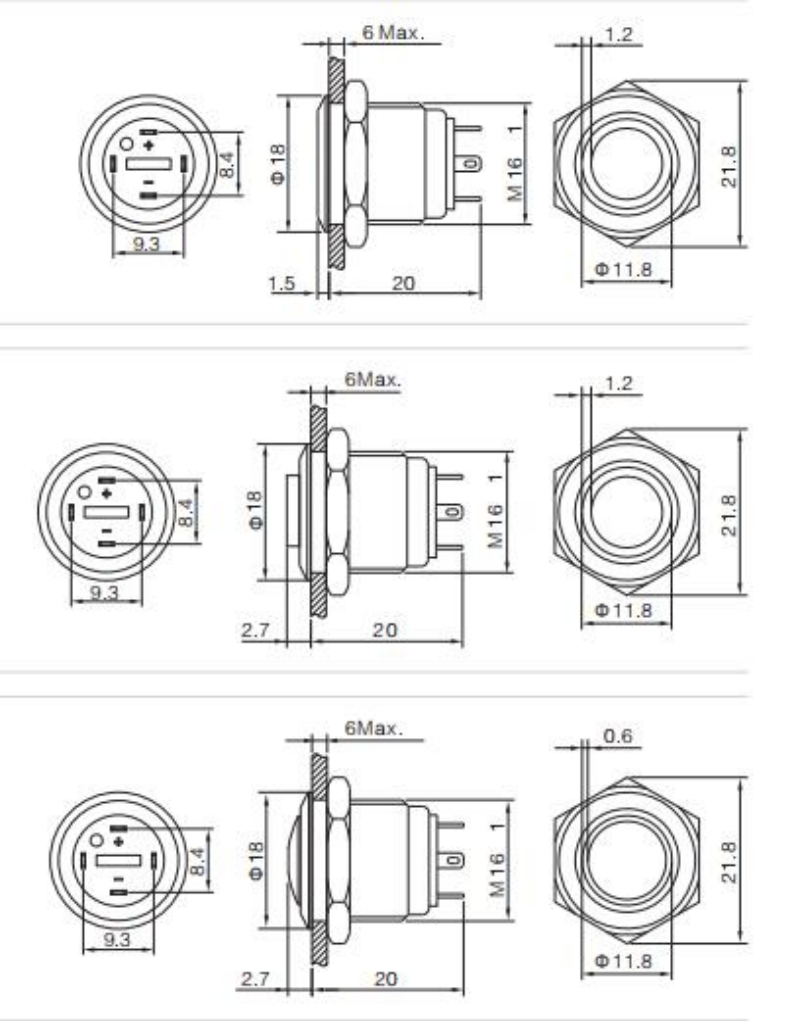

ELEWIND 16mm stainless steel Ring illuminated waterproof push button switch Pin terminal Momentary (1NO) (PM161F-10E/J/G/12V/S)
Part number:PM161F-10E
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head or High flat head or Domedhead
Function: Momentary (1NO)
Terminal: Pin terminal
Crust material: stainless steel
LED color: Ring illuminated Green Color
(Other color you can choose:Red,Blue,Yellow,White,Orange)
Voltage: from 2.8V to 48V
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 16mm Dot illuminated momentary push button switch (PM161F-10D/J/B/12V/A)
Part number:PM161F-10D/J/B/12V/A
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: Pin terminal
Crust material: Black aluminium
LED color:Blue
Voltage:from 1.8v to 48v
IP rating: IP65
Temperature: – 40 to 75 Degree
-
ELEWIND 16mm Ring illuminated Momentary (1NO) Nickel plated brass Flat head switch (PM161F-10E/J/R/12V/N)
Part number:PM161F-10E/J/R/12V/N
Install diameter:16mm
Switch rating: 2A/36VDC
Shape: Flat head
Function: Momentary (1NO)
Terminal: Pin terminal
Crust material: Nickel plated brass
LED color: Ring illuminated Red color
(Other color you can choose:Blue,Green,Yellow,White,Orange)
Voltage: from 1.8V to 48V
IP rating: IP65
Temperature: – 40 to 75 Degree
